22044 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Handle Assembly Parts Diagram

Walk-Behind Mower

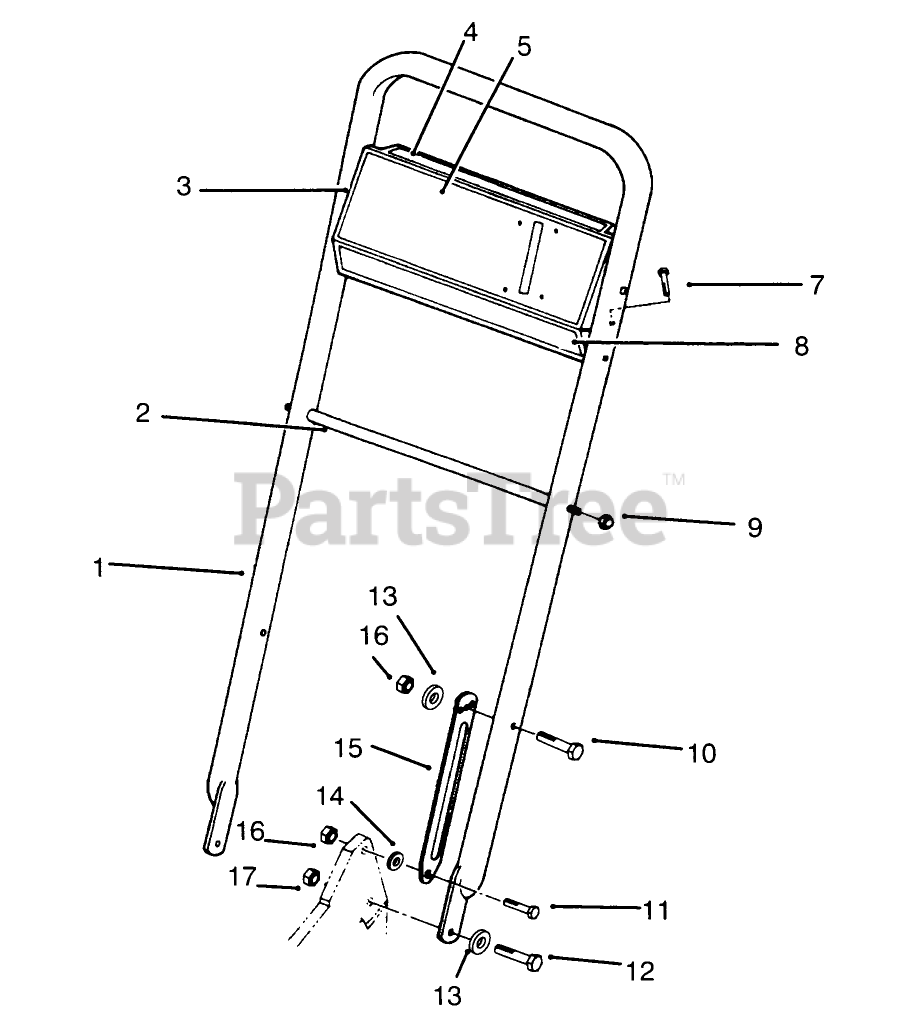

Handle Assembly Parts Diagram

  • Title

1

Toro 84-8860

See Supercession: 98-2385-03
(Superseded to 98-2385-03)

$

$

Not available

2

Toro 48-2810

ROD-SUPPORT, BAG

$35.99

$

Usually ships in 3-6 days

0

3

Toro 16-9209

PANEL W/DECALS

$

$

Not available

4

Toro 93-6655

DECAL-PANEL, REAR

$

$

Not available

5

Toro 93-6661

DISCONTINUED

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 85-6720

See Supercession: 106-0771
(Superseded to 106-0771)

$19.99

$

Usually ships in 3-6 days

0

9

Toro 32111-7

NUT-CAP

$8.49

$

Usually ships in 3-6 days

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

12

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

13

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

14

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

15

Toro 84-8361

See Supercession: 100-3298-03
(Superseded to 100-3298-03)

$22.99

$

In Stock, Qty 9

0

Toro 84-8401

See Supercession: 100-3297-03
(Superseded to 100-3297-03)

Note: Not illustrated

$9.49

$

In Stock, only 2 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0
