22118 - Gravely 44" Power Brush for Tractor DRIVE AND BRUSH Parts Diagram

44" Power Brush for Tractor

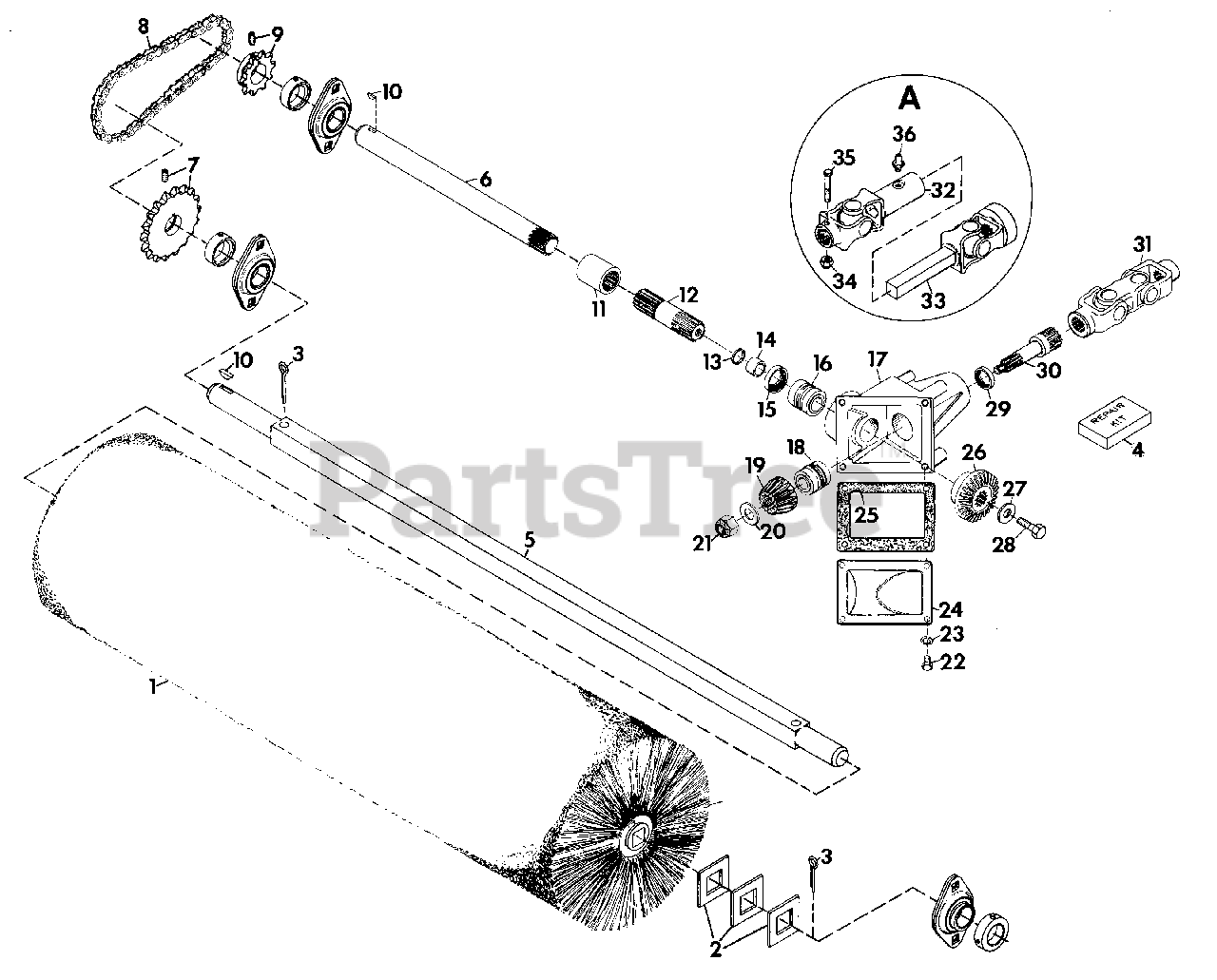

DRIVE AND BRUSH Parts Diagram

  • Title

1

Gravely 022115

BRUSH,44IN
(Superseded to 08518600)

$659.99

$

Usually ships in 4-12 days

0

2

Gravely 022117

SPCR, SQ 1.010X2.000X.125
(Superseded to 08518800)

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 103422

PIN-CTR .25X2.00 YWZC
(Superseded to 06713100)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 012134

JOURNAL CROSS & BEARING ASSEMB
(Superseded to 03155800)

$

$

Not available

4

Gravely 024560

JOURNAL CROSS & BEARING ASSEMB
(Superseded to 03155800)

$

$

Not available

5

Gravely 022116

SHFT,POWER BRUSH
(Superseded to 08518700)

$263.99

$

Usually ships in 4-12 days

0

6

Gravely 019275

SHAFT, OUTPUT SPLINE
(Superseded to 08509200)

$93.99

$

Usually ships in 4-12 days

0

7

Gravely 019287

SPRKT,
(Superseded to 08509900)

$175.99

$

Usually ships in 4-12 days

0

8

Gravely 019288

CHAIN, ROLLER 50-1R-063
(Superseded to 08601400)

$99.99

$

Usually ships in 4-12 days

0

9

Gravely 019282

SPRKT,
(Superseded to 08509800)

$90.99

$

Usually ships in 4-12 days

0

10

Gravely 218211

KEY-WDRF .25X.750X.313 SAE91
(Superseded to 06601200)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 019272

CPLG 1.6X1.37
(Superseded to 07017100)

$58.99

$

Usually ships in 4-12 days

0

12

Gravely 014637

SHFT,DRIVE
(Superseded to 08502700)

$158.99

$

Usually ships in 4-12 days

0

13

Gravely 014642

RG-RTNG EXT 1.106X.95
(Superseded to 05711600)

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 014641

BUSH F 1.00X1.25X1.25 ST
(Superseded to 08700500)

$24.99

$

In Stock, only 2 left!

0

15

Gravely 014646

SEAL 1.250X1.983X.250
(Superseded to 05613700)

$15.99

$

In Stock, only 1 left!

0

16

Gravely 014640

BRG-ASM 1.000X1.980X1.243
(Superseded to 05419300)

$115.99

$

Usually ships in 4-12 days

0

17

Gravely 014636

CSTG,GEAR BOX
(Superseded to 08700400)

$305.99

$

Usually ships in 4-12 days

0

18

Gravely 014644

BRG-ASM .75X1.781X1.499
(Superseded to 05419400)

$116.99

$

Usually ships in 4-12 days

0

19

Gravely 011831

GR,BEVEL
(Superseded to 08585800)

$271.99

$

Usually ships in 4-12 days

0

20

Gravely 417098

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 15

0

21

Gravely 011835

NUT-LK-JAM-NYL .50-20 GR2 YWZC
(Superseded to 06544000)

$6.49

$

In Stock, only 2 left!

0

22

Gravely 180016

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 2 left!

0

23

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

24

Gravely 010982

CVR,GEAR HOUSING
(Superseded to 08860500)

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 011231

GSKT,GEAR HOUSING
(Superseded to 08570100)

$6.49

$

In Stock, Qty 10

0

26

Gravely 011220

GR,BEVEL
(Superseded to 08790300)

$245.99

$

Usually ships in 4-12 days

0

27

Gravely 015369

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 7

0

28

Gravely 013624

BLT-HEX .50-13X1.312 GR5
(Superseded to 05941200)

$

$

Not available

29

Gravely 019321

SEAL 1.000X1.690X.250
(Superseded to 05615500)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 019268

SHFT,
(Superseded to 08508800)

$138.99

$

Usually ships in 4-12 days

0

31

Gravely 011967

ASM, JOINT DOUBLE
(Superseded to 08587200)

$537.99

$

Usually ships in 4-12 days

0

32

Gravely 013518

JT,U,FEMALE END
(Superseded to 08700200)

$

$

Not available

33

Gravely 019871

JT,U, MALE
(Superseded to 08716700)

$

$

Not available

34

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

35

Gravely 180044

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

36

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available
