22145 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

21" ProLine Recycler Walk-Behind Mower

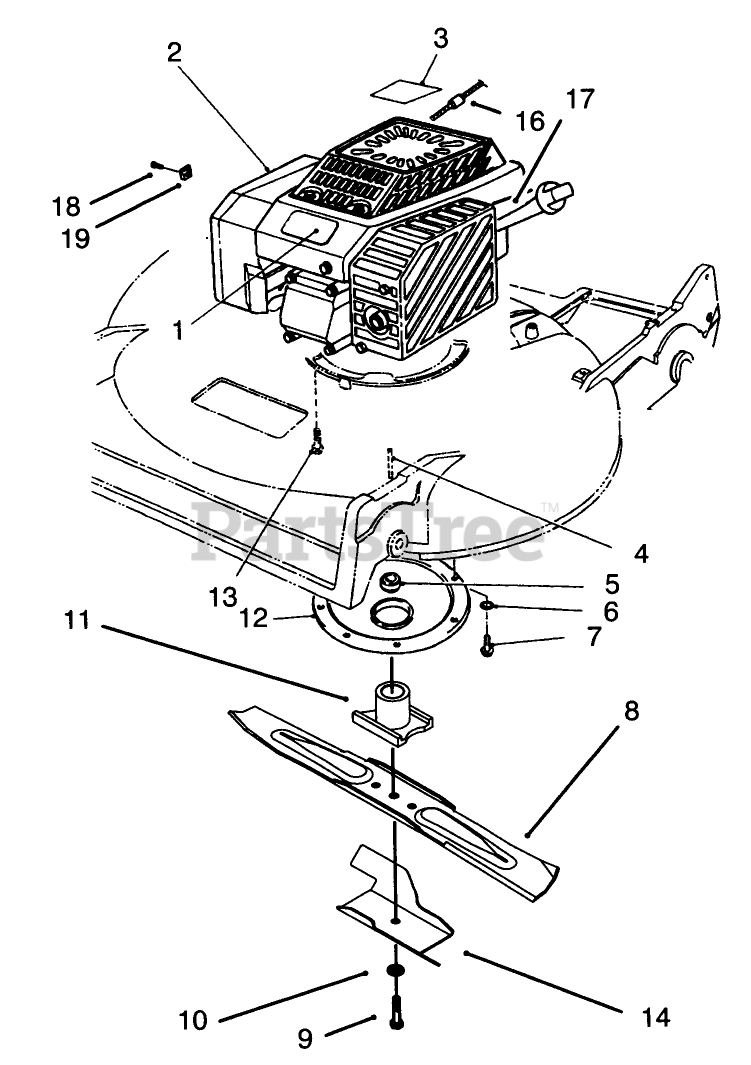

Engine Assembly Parts Diagram

  • Title

1

Toro 84-4960

DECAL - PROLINE

$10.99

$

Usually ships in 3-6 days

0

2

Toro 77-8971

DISCONTINUED
(Superseded to 77-9020)

$

$

Not available

3

Toro 71-9270

DISCONTINUED

$

$

Not available

4

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

5

Toro 52-2190

SPACER-BLADE RETAINER

$13.99

$

Usually ships in 3-6 days

0

6

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

7

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 14-9419

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$35.99

$

In Stock, Qty 10

0

9

Toro 26-0670

SCREW-BLADE

$

$

Not available

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 52-2170

See Supercession: 52-2170-03
(Superseded to 52-2170-03)

$84.99

$

In Stock, only 2 left!

0

12

Toro 48-2591

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$118.99

$

In Stock, only 2 left!

0

13

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

14

Toro 92-1599

See Supercession: 92-1599-03
(Superseded to 92-1599-03)

$96.99

$

Usually ships in 3-6 days

0

16

Toro 2210-316

STOP-ROPE

$8.99

$

Usually ships in 3-6 days

0

17

Toro 77-9550

COVER - BRAKE F/W

$

$

Not available

18

Toro 86-7990

CLAMP SCREW F/W ENGINE

$

$

Not available

19

Toro 2210-249

CLAMP-CASING

$

$

Not available

Toro 77-9020

DISCONTINUED

Note: Not illustrated

$

$

Not available
