22160 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Gts-200 3 Parts Diagram

Recycler Walk-Behind Mower

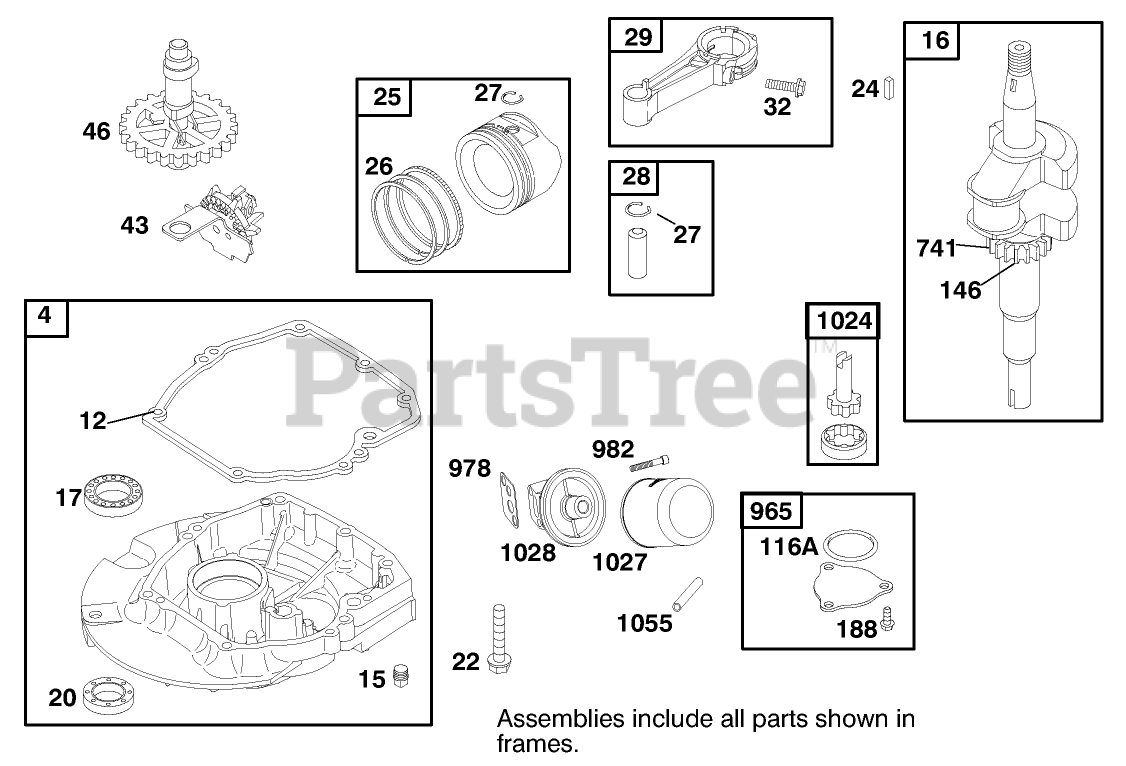

Engine Gts-200 3 Parts Diagram

  • Title

4

Toro 99-0980

DISCONTINUED

$

$

Not available

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

15

Toro 99-0954

PLUG-DRAIN, OIL

$

$

Not available

16

Toro 98-9214

CRANKSHAFT

$

$

Not available

17

Toro 99-1031

BALL BEARING

$

$

Not available

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 99-0902

$28.99

$

In Stock, only 1 left!

0

22

Toro 99-0956

SCREW-HEX

$

$

Not available

24

Toro 77-8340

KEY - FLYWHEEL

$8.49

$

Usually ships in 3-6 days

0

25

Toro 99-0958

PISTON ASM

$

$

Not available

26

Toro 99-0959

DISCONTINUED

$

$

Not available

27

Toro 99-0960

LOCK-PIN, PISTON

$

$

Not available

28

Toro 99-0961

PIN-PISTON

$

$

Not available

29

Toro 99-0962

ROD-CONNECTING

$

$

Not available

32

Toro 99-0963

SCREW-ROD, CONNECTING

$

$

Not available

43

Toro 99-0937

GOVERNOR OIL SLINGER

$52.99

$

Usually ships in 3-6 days

0

46

Toro 99-0965

GEAR-CAM

$

$

Not available

116A

Toro 99-1032

O RING SEAL

$

$

Not available

146

Toro 99-0966

KEY-TIMING
(Superseded to 690979)

$5.49

$

Usually ships in 3-6 days

0

188

Toro 99-1033

HEX SCREW

$

$

Not available

741

Toro 99-0967

GEAR-TIMING

$

$

Not available

965

Toro 99-1034

OIL PUMP COVER

$

$

Not available

978

Toro 99-1035

ADAPTER GASKET

$

$

Not available

982

Toro 99-1036

SOCKET HEAD SCREW

$

$

Not available

1024

Toro 99-1037

OIL PUMP

$

$

Not available

1027

Toro 98-9217

FILTER - OIL

$28.99

$

Usually ships in 3-6 days

0

1028

Toro 99-1038

OIL FILTER ADAPTER

$

$

Not available

1055

Toro 99-1039

OIL PUMP TUBE

$

$

Not available
