22166 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) Engine and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

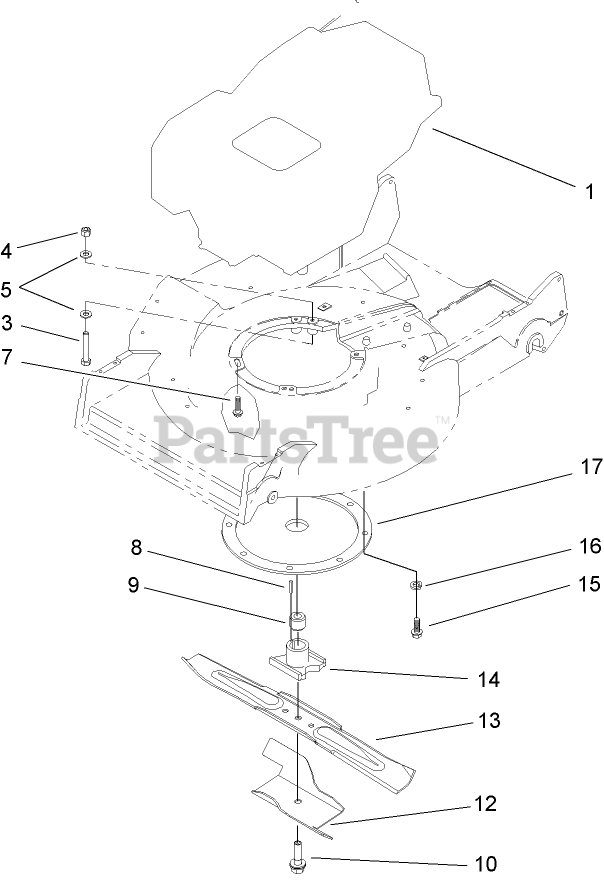

Engine and Blade Assembly Parts Diagram

  • Title

1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 103-2678

SCREW-SHOULDER

$6.99

$

In Stock, only 2 left!

0

8

Toro 7-0036

KEY-SQUARE

$

$

Not available

9

Toro 103-3795

SPACER-RETAINER, BLADE

$8.99

$

In Stock, only 2 left!

0

10

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$96.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$35.99

$

In Stock, Qty 10

0

14

Toro 52-2170

See Supercession: 52-2170-03
(Superseded to 52-2170-03)

$84.99

$

In Stock, only 2 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 48-2591

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$118.99

$

In Stock, only 2 left!

0
