22178 - Toro 21" Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 260004001 - 260999999) (2006) Housing Assembly Parts Diagram

21" Heavy-Duty Rear Bagger Walk-Behind Mower

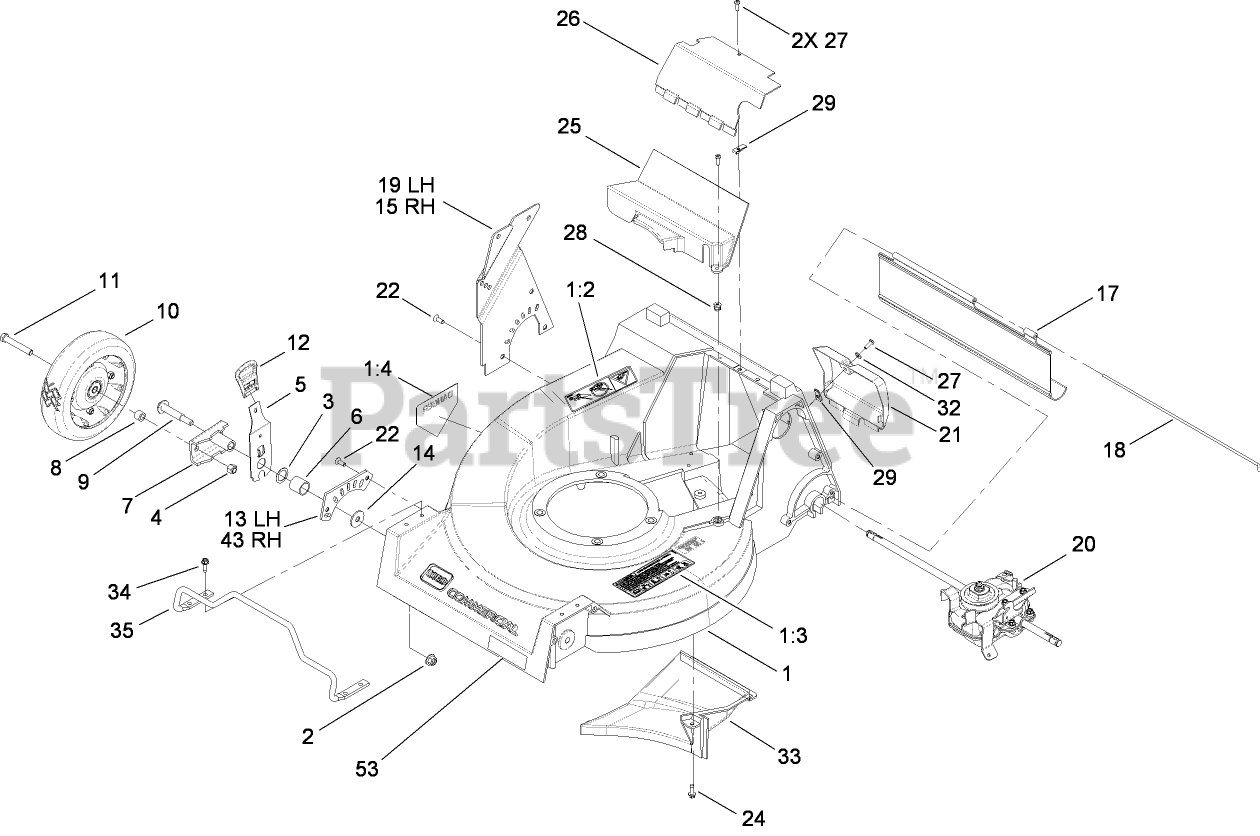

Housing Assembly Parts Diagram

  • Title

1

Toro 115-0991

DECK ASM

$

$

Not available

1:2

Toro 110-4977

DECAL-DANGER

$

$

Not available

1:3

Toro 110-4989

DECAL-WARNING

$9.99

$

In Stock, Qty 14

0

1:4

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

2

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

3

Toro 115-0972

WASHER

$3.99

$

Usually ships in 3-6 days

0

4

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 20+

0

5

Toro 115-0980

FRONT SPRING ARM ASM

$18.99

$

In Stock, only 2 left!

0

6

Toro 75-5310

SPACER-BEARING

$5.99

$

Usually ships in 3-6 days

0

7

Toro 61-8300

ARM-PIVOT, FRONT

$34.99

$

In Stock, Qty 12

0

8

Toro 52-2480

SPACER-WHEEL

$6.99

$

In Stock, Qty 20+

0

9

Toro 114-3468

SCREW-SHOULDER

$5.99

$

In Stock, Qty 20+

0

10

Toro 100-2870

See Supercession: 121-1380
(Superseded to 121-1380)

$110.99

$

Usually ships in 3-6 days

0

11

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 115-0960

PLATE-FRONT HOC, LH

Note: Not illustrated

$51.99

$

Usually ships in 3-6 days

0

14

Toro 115-0956

WASHER

$5.99

$

Usually ships in 3-6 days

0

15

Toro 115-0978-01

PLATE-REAR HOC, RH

$

$

Not available

17

Toro 110-0509

SHEILD-TRAILING

$49.99

$

In Stock, only 1 left!

0

18

Toro 33-3202

ROD-SHIELD

$9.99

$

In Stock, only 1 left!

0

19

Toro 115-0977-01

PLATE-REAR HOC, LH

Note: Not illustrated

$

$

Not available

20

Toro 110-2100

GEAR CASE ASM

$

$

Not available

21

Toro 107-4288

DOOR-ACCESS, REAR

$31.99

$

Usually ships in 3-6 days

0

22

Toro 32144-17

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 107-4297

COVER-BELT, LOWER

$31.99

$

Usually ships in 3-6 days

0

26

Toro 107-4298

COVER-BELT, UPPER

$31.99

$

Usually ships in 3-6 days

0

27

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

28

Toro 611380

NUT-CLIP

$

$

Not available

29

Toro 3290-171

NUT-TYPE J

$6.99

$

In Stock, only 3 left!

0

32

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 115-0973

BAFFLE-CHUTE, FLOOR

$38.99

$

Usually ships in 3-6 days

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 110-4876

GUARD-ENGINE

$

$

Not available

43

Toro 115-0961

PLATE-FRONT HOC, RIGHT

$51.99

$

Usually ships in 3-6 days

0

53

Toro 68-7410

DECAL-BLADE

$13.99

$

In Stock, only 2 left!

0
