22179 TE - Toro 53cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 270004001 - 270999999) (2007) Handle and Cable Assembly Parts Diagram

53cm Heavy-Duty Rear Bagger Walk-Behind Mower

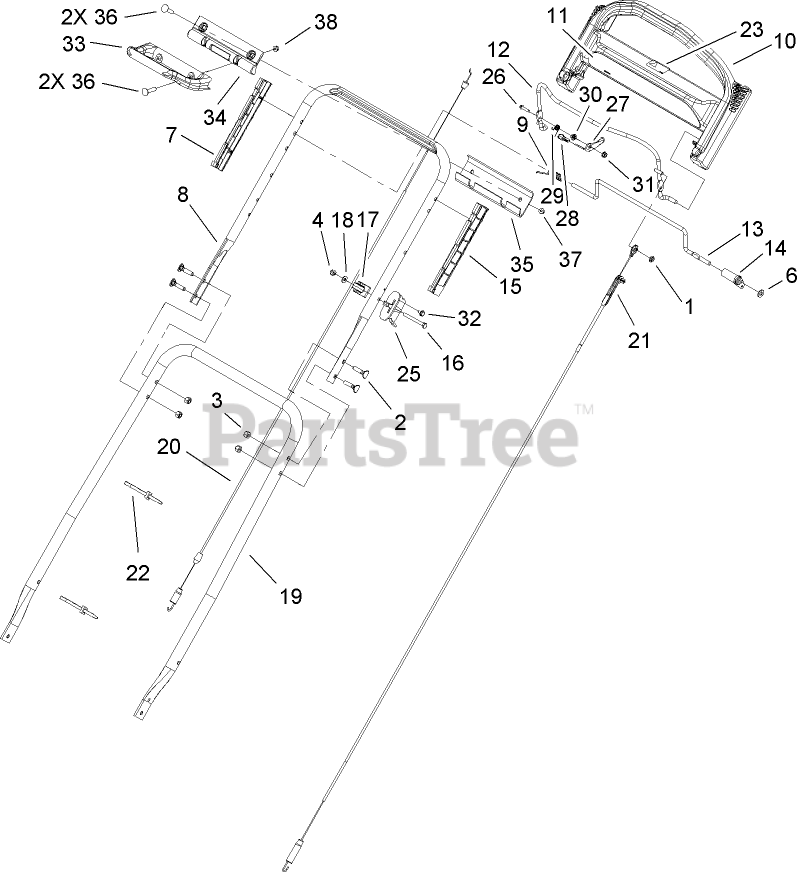

Handle and Cable Assembly Parts Diagram

  • Title

1

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

2

Toro 92-4095

SCREW-HANDLE

$7.49

$

In Stock, Qty 10

0

3

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, only 2 left!

0

8

Toro 110-4874-03

HANDLE-UPPER

$99.99

$

Usually ships in 3-6 days

0

9

Toro 104-8690

See Supercession: 136-7166
(Superseded to 136-7166)

$3.99

$

In Stock, Qty 20+

0

10

Toro 104-8678

HANDLE-CONTROL

$92.99

$

In Stock, Qty 10

0

11

Toro 110-4875

DECAL-HANDLE

$

$

Not available

12

Toro 108-3788-03

BAIL-BRAKE

$47.99

$

In Stock, only 1 left!

0

13

Toro 99-1588

See Supercession: 136-7150
(Superseded to 136-7150)

$18.99

$

In Stock, only 2 left!

0

14

Toro 99-1589

LEVER-TRACTION

$8.49

$

In Stock, Qty 13

0

15

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 2 left!

0

16

Toro 321-49

SCREW-HH

$1.99

$

In Stock, Qty 9

0

17

Toro 99-5239

See Supercession: 136-5864
(Superseded to 136-5864)

$3.49

$

In Stock, Qty 20+

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 107-4278-03

HANDLE-LOWER

$

$

Not available

20

Toro 107-3790

CABLE-TRACTION

$60.99

$

In Stock, only 2 left!

0

21

Toro 108-3760

CABLE ASM

$86.99

$

In Stock, only 2 left!

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0

25

Toro 110-4877

CONTROL-THROTTLE

$

$

Not available

26

Toro 106-9169

SCREW-HWH

$8.99

$

In Stock, only 2 left!

0

27

Toro 110-4889

LEVER-BBC

$

$

Not available

28

Toro 106-6803

KNOB

$3.49

$

Usually ships in 3-6 days

0

29

Toro 107-7462

SPRING-TORSION

$9.49

$

In Stock, only 2 left!

0

30

Toro 107-7463

SPACER

$3.99

$

In Stock, only 2 left!

0

31

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

32

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 99-1591

See Supercession: 104-7943
(Superseded to 104-7943)

$66.99

$

Usually ships in 3-6 days

0

34

Toro 108-3756-03

BRACKET-HANDLE, ASSIST

$

$

Not available

35

Toro 108-3758-03

BRACKET-HANDLE, ASSIST

$

$

Not available

36

Toro 3230-29

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

37

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
