22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) Engine and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

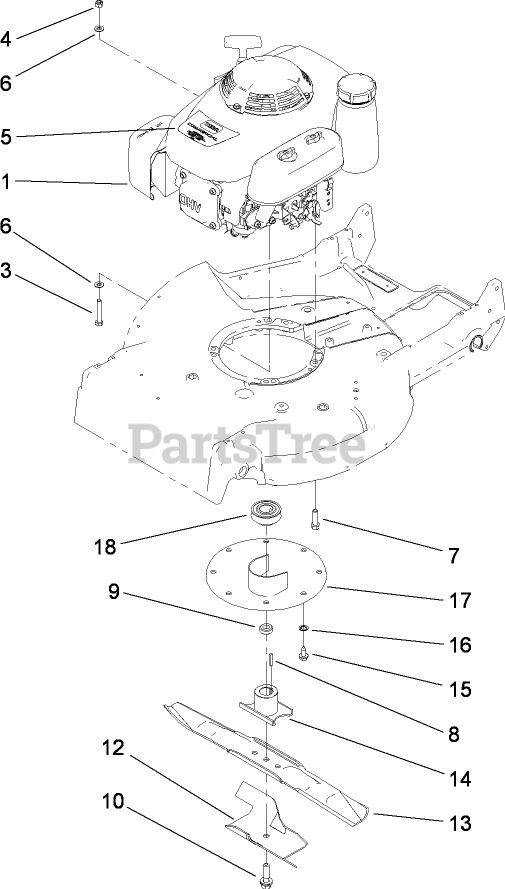

Engine and Blade Assembly Parts Diagram

  • Title

1

Loose Parts Package

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

3

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 14

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 112-9974

See Supercession: 125-8405
(Superseded to 125-8405)

$8.49

$

In Stock, only 2 left!

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 103-2678

SCREW-SHOULDER

$6.99

$

In Stock, only 2 left!

0

8

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, only 2 left!

0

9

Toro 103-3795

SPACER-RETAINER, BLADE

$8.99

$

In Stock, only 2 left!

0

10

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$96.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$35.99

$

In Stock, Qty 10

0

14

Toro 52-2170-03

RETAINER-BLADE

$84.99

$

In Stock, only 2 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

See Supercession: 125-8370
(Superseded to 125-8370)

$118.99

$

In Stock, only 2 left!

0

18

Toro 46-7910

PULLEY-DRIVER

$39.99

$

Usually ships in 3-6 days

0
