22197 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Engine and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

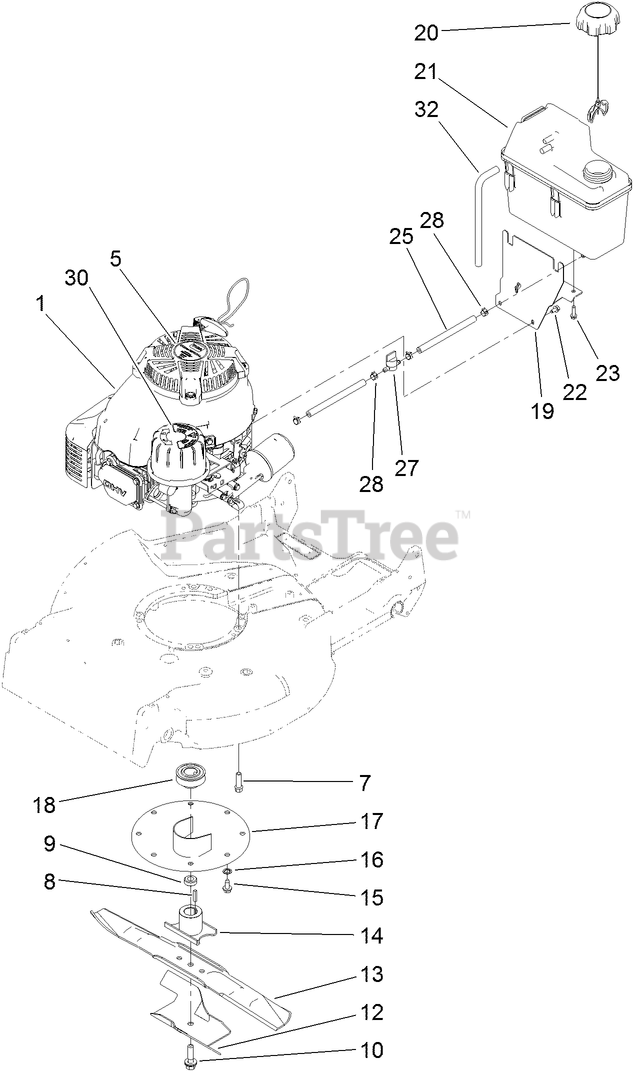

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 117-5222

DISCONTINUED
(Superseded to 121-1404)

$

$

Not available

5

Toro 110-0520

DECAL

$37.99

$

Usually ships in 3-6 days

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, only 2 left!

0

9

Toro 103-3795

SPACER-RETAINER, BLADE

$8.99

$

In Stock, only 2 left!

0

10

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$96.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$35.99

$

In Stock, Qty 10

0

14

Toro 52-2170-03

RETAINER-BLADE

$84.99

$

In Stock, only 2 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 121-1360

See Supercession: 125-8370
(Superseded to 125-8370)

$118.99

$

In Stock, only 2 left!

0

18

Toro 46-7910

PULLEY-DRIVER

$39.99

$

Usually ships in 3-6 days

0

19

Toro 115-0954-03

MOUNT-TANK

$46.99

$

In Stock, only 1 left!

0

20

Toro 109-6776

See Supercession: 137-4127
(Superseded to 137-4127)

$25.99

$

In Stock, Qty 20+

0

21

Toro 114-0280

TANK-FUEL

$163.99

$

Usually ships in 3-6 days

0

22

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

25

Toro 107-0588

HOSE-FUEL

$6.99

$

In Stock, Qty 11

0

27

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

28

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

30

Toro 114-3415

DECAL

$8.49

$

Usually ships in 3-6 days

0

32

Toro 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 10

0
