22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 270001001 - 270999999) (2007) Housing Assembly Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

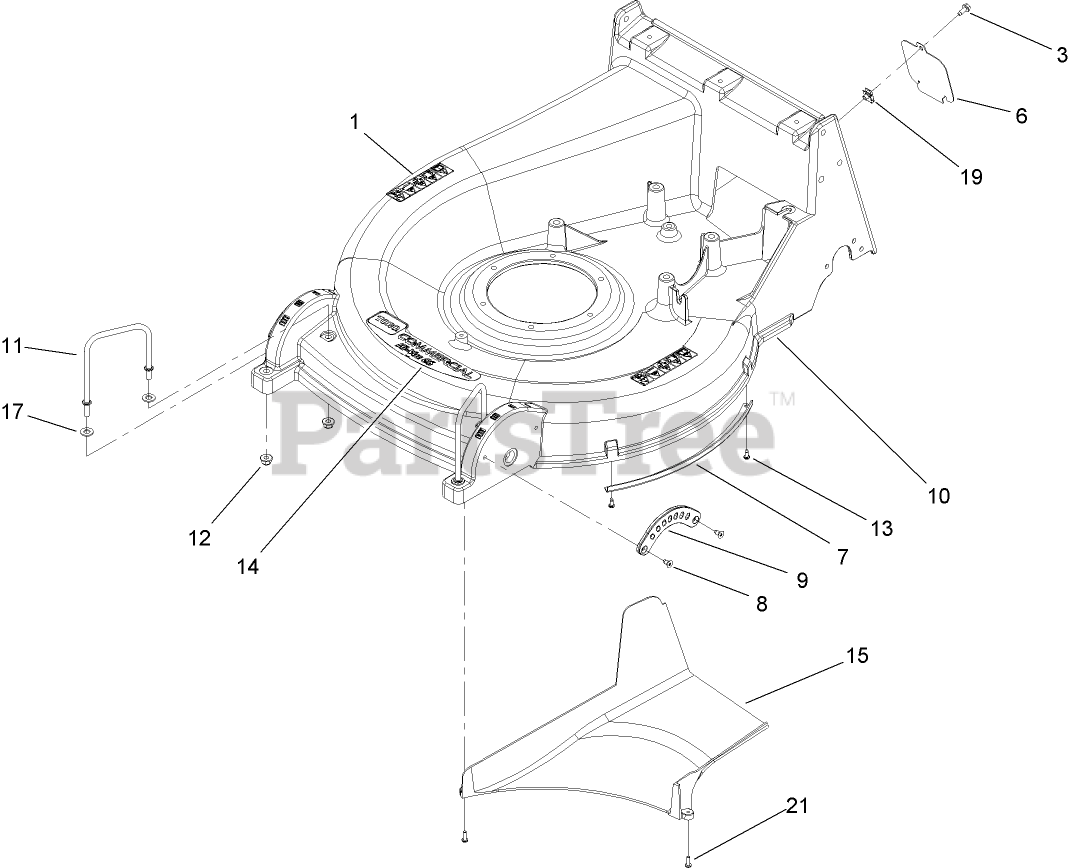

Housing Assembly Parts Diagram

  • Title

1

Toro 110-4978

DECAL-DANGER

$17.99

$

Usually ships in 3-6 days

0

3

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

6

Toro 103-6116

COVER

$

$

Not available

7

Toro 103-6131

GUARD-EDGE

$

$

Not available

8

Toro 103-6145

SCREW

$5.99

$

In Stock, only 2 left!

0

9

Toro 103-6460

QUADRANT-FRONT

$32.99

$

Usually ships in 3-6 days

0

10

Toro 103-7642-01

See Supercession: 109-5475-01
(Superseded to 109-5475-01)

$1449.99

$

Usually ships in 3-6 days

0

11

Toro 103-8875

See Supercession: 116-6944
(Superseded to 116-6944)

$

$

Not available

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

14

Toro 112-8709

DECAL

$

$

Not available

15

Toro 109-2832

See Supercession: 116-1405
(Superseded to 116-1405)

$93.99

$

In Stock, only 2 left!

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 32144-8

SCREW-PPHTF

$7.49

$

Usually ships in 3-6 days

0
