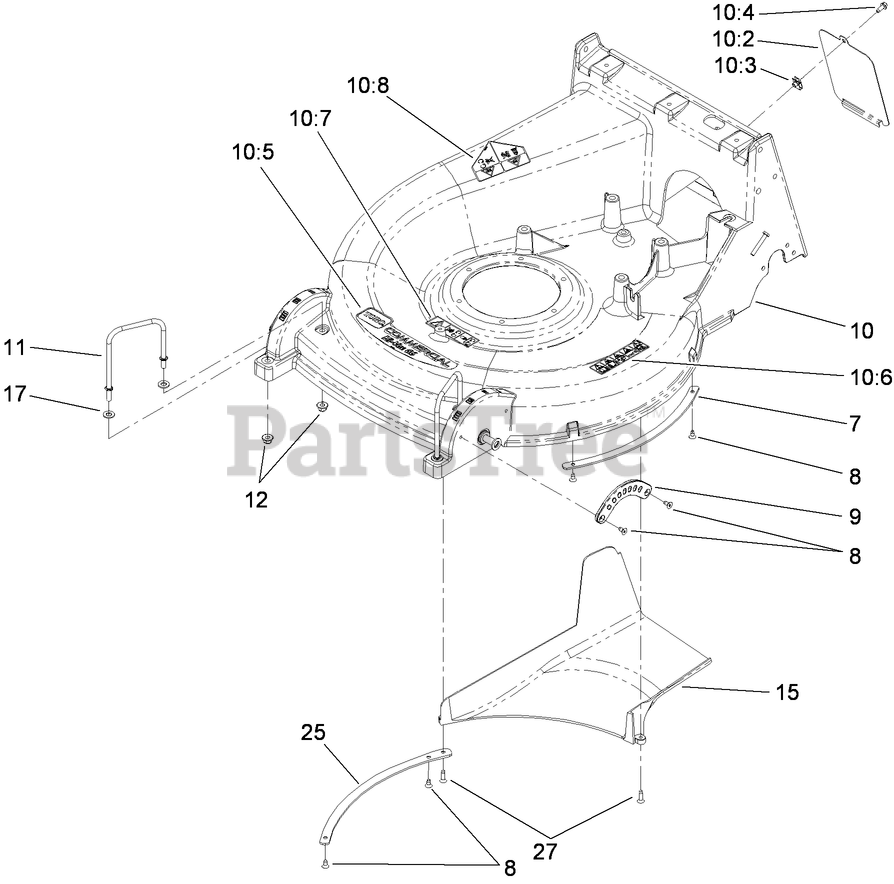

22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 290000501 - 290999999) (2009) Housing Assembly Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

7

Toro 116-0059-03

PLATE-SKID, 10 GAGE

$39.99

$

Usually ships in 3-6 days

0

8

Toro 103-6145

SCREW

$5.99

$

In Stock, only 2 left!

0

9

Toro 103-6460

QUADRANT-FRONT

$32.99

$

Usually ships in 3-6 days

0

10

Toro 115-4240

DECK ASM

$

$

Not available

10:2

Toro 116-0336

COVER-ACCESS, AXLE

$

$

Not available

10:3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10:4

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

10:5

Toro 112-8709

DECAL

$

$

Not available

10:6

Toro 110-4978

DECAL-DANGER

$17.99

$

Usually ships in 3-6 days

0

10:7

Toro 112-9028

DECAL-COVER, MISSING

$25.99

$

In Stock, only 1 left!

0

10:8

Toro 112-8760

DECAL-DANGER

$12.99

$

In Stock, only 4 left!

0

11

Toro 103-8875

See Supercession: 116-6944
(Superseded to 116-6944)

$

$

Not available

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 116-1405

PLASTIC CHUTE KIT (W/SCREWS)

$93.99

$

In Stock, only 2 left!

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 116-1273-03

PLATE-SKID

$56.99

$

Usually ships in 3-6 days

0

27

Toro 116-0606

SCREW-TORX

$10.99

$

Usually ships in 3-6 days

0
