22200 - Toro 30" TurfMaster Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Handle Assembly Parts Diagram

30" TurfMaster Walk-Behind Mower

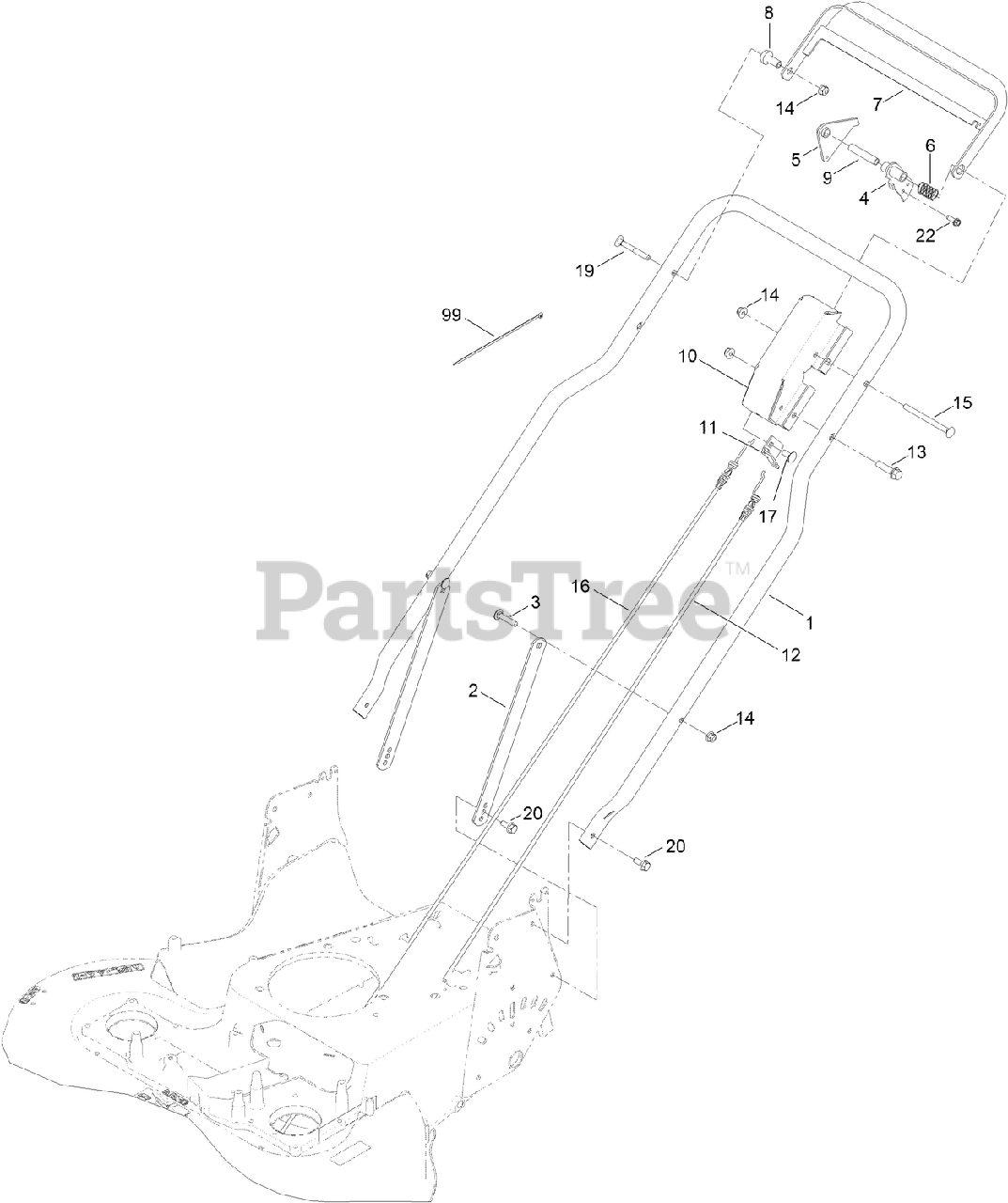

Handle Assembly Parts Diagram

  • Title

1

Toro 121-5827-03

HANDLE

$118.99

$

Usually ships in 3-6 days

0

2

Toro 116-8208-03

SUPPORT-HANDLE

$7.49

$

In Stock, only 2 left!

0

3

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

4

Toro 121-5831

BBC LEVER ASM

$26.99

$

Usually ships in 3-6 days

0

5

Toro 121-9136

LEVER-TRACTION

$19.99

$

Usually ships in 3-6 days

0

6

Toro 85-6750

SPRING-CONTROL

$11.99

$

Usually ships in 3-6 days

0

7

Toro 121-5829-03

BAR-CONTROL

$90.99

$

In Stock, only 1 left!

0

8

Toro 49-1631

SPACER-SUPPORT

$7.49

$

Usually ships in 3-6 days

0

9

Toro 84-9030

SPACER-BRACKET, CONTROL

$49.99

$

Usually ships in 3-6 days

0

10

Toro 121-5789-03

BRACKET-CONTROL

$58.99

$

Usually ships in 3-6 days

0

11

Toro 121-9166

BRACKET

$9.49

$

Usually ships in 3-6 days

0

12

Toro 127-0741

See Supercession: 137-4806
(Superseded to 137-4806)

$123.99

$

In Stock, only 3 left!

0

13

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 106-9758

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

16

Toro 127-6868

CABLE-TRACTION

$51.99

$

In Stock, only 2 left!

0

17

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 17-9427

SCREW

$10.99

$

Usually ships in 3-6 days

0

20

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

22

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
