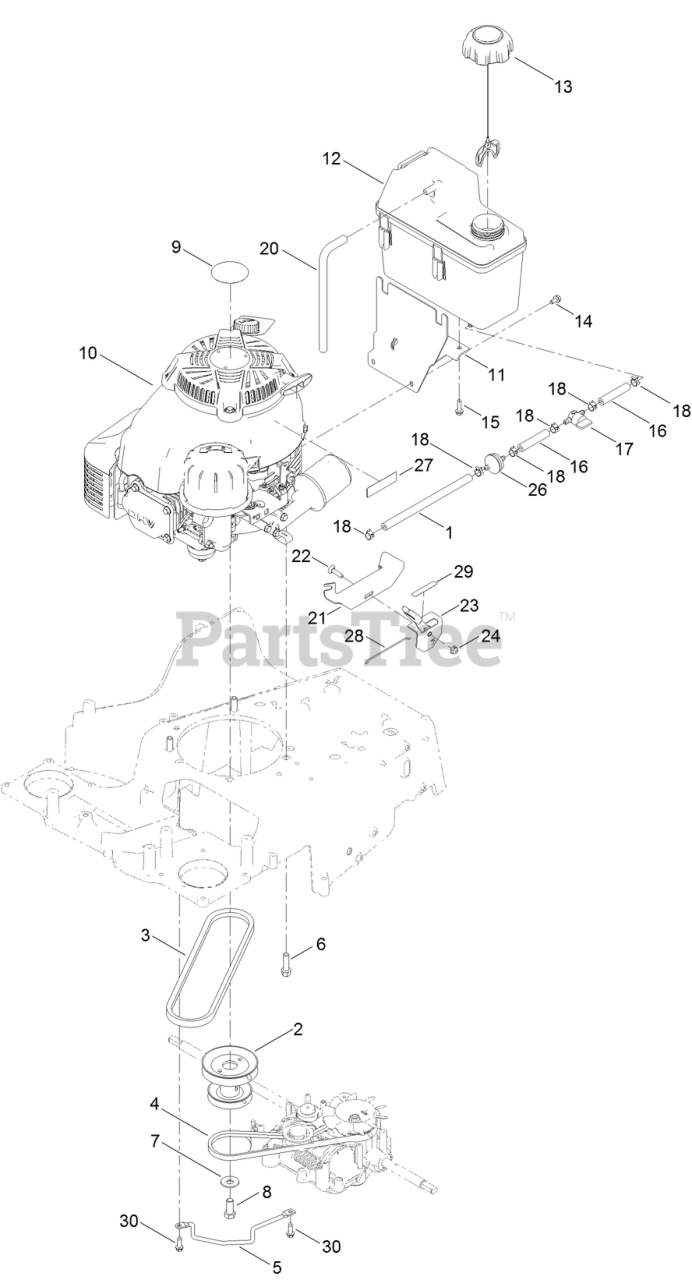

22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 406000000 - 407299999) Engine and Fuel Tank Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

Engine and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 119-1892

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

2

Toro 137-9181

PULLEY-ENGINE

$51.99

$

In Stock, Qty 9

0

3

Toro 121-5765

V-BELT

$21.99

$

In Stock, Qty 20+

0

4

Toro 133-8151

BELT-V

$26.99

$

In Stock, Qty 20+

0

5

Toro 138-5331-03

ROD-GUIDE, BELT

$14.99

$

In Stock, only 2 left!

0

6

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

9

Toro 109-6528

DECAL

$7.49

$

In Stock, only 2 left!

0

10

ENGINE-FJ180V KAW BBC

Note: Obtain parts from www.kawpower.com

$

$

Not available

10

ENGINE-FJ180V KAW BBC

Note: Not serviced separately

$

$

Not available

11

Toro 115-0954-03

MOUNT-TANK

$46.99

$

In Stock, only 1 left!

0

12

Toro 114-0280

TANK-FUEL

$163.99

$

In Stock, only 2 left!

0

13

Toro 137-4127

CAP-FUEL

$25.99

$

In Stock, Qty 20+

0

14

Toro 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

15

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

16

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

17

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, Qty 6

0

18

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

20

Toro 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 10

0

21

Toro 130-6440-03

BRACKET-MOUNT, THROTTLE

$36.99

$

In Stock, only 2 left!

0

22

Toro 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

23

Toro 130-9655

CONTROL-THROTTLE

$46.99

$

In Stock, Qty 6

0

24

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 139-5916

FILTER-FUEL

$9.49

$

In Stock, Qty 20+

0

27

Toro 116-9313

DECAL-WARNING, ENGINE

$2.49

$

Usually ships in 3-6 days

0

28

Toro 130-9654

WIRE-CONTROL

$3.49

$

In Stock, Qty 12

0

29

Toro 130-9656

DECAL-THROTTLE, CHOKE

$3.49

$

In Stock, Qty 16

0

30

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0
