22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 406000000 - 407299999) Front Bumper and Wheel Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

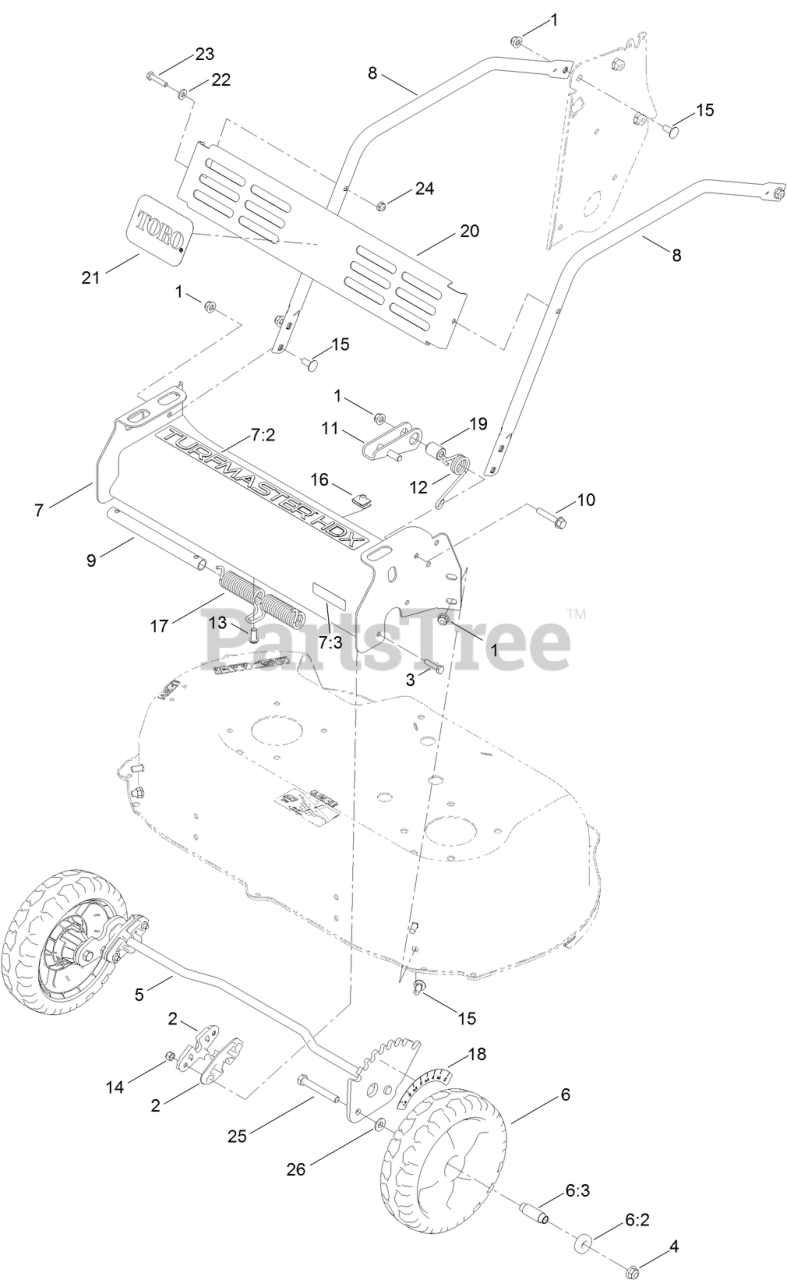

Front Bumper and Wheel Assembly Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 121-5781

BUSHING-FRONT

$8.49

$

In Stock, Qty 8

0

3

Toro 321-7

SCREW-HH

$5.99

$

In Stock, Qty 5

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 131-0826

AXLE-FRONT

$96.99

$

In Stock, only 2 left!

0

6

Toro 133-2639

WHEEL

$50.99

$

In Stock, Qty 17

0

6:2

Toro 133-2603

BEARING-BALL

$29.99

$

In Stock, Qty 20+

0

6:3

Toro 125-1077

SPACER

$7.49

$

In Stock, only 3 left!

0

7

Toro 139-6616

FRONT BUMPER ASM

$198.99

$

Usually ships in 3-6 days

0

7:2

Toro 139-1675

DECAL

$6.49

$

Usually ships in 3-6 days

0

7:3

Toro 116-7581

DECAL-WARNING

$3.99

$

Usually ships in 3-6 days

0

8

Toro 121-9168-03

BRACE

$51.99

$

In Stock, Qty 7

0

9

Toro 131-9690

MANDRELL-SPRING

$15.99

$

Usually ships in 3-6 days

0

10

Toro 94-5780

SCREW-HWH

$8.99

$

In Stock, Qty 8

0

11

Toro 125-2483

LOCK-HEIGHT, ADJUSTMENT

$22.99

$

Usually ships in 3-6 days

0

12

Toro 120-9465

SPRING-TORSION

$7.49

$

Usually ships in 3-6 days

0

13

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

17

Toro 121-2337

SPRING-TORSION

$25.99

$

Usually ships in 3-6 days

0

18

Toro 136-9078

DECAL-HOC, FRONT

$10.99

$

Usually ships in 3-6 days

0

19

Toro 125-2486

SPACER

$13.99

$

Usually ships in 3-6 days

0

20

Toro 121-9187-03

SHIELD

$51.99

$

In Stock, only 2 left!

0

21

Toro 117-0871

DECAL

$37.99

$

In Stock, only 2 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 321-8

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

24

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

26

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0
