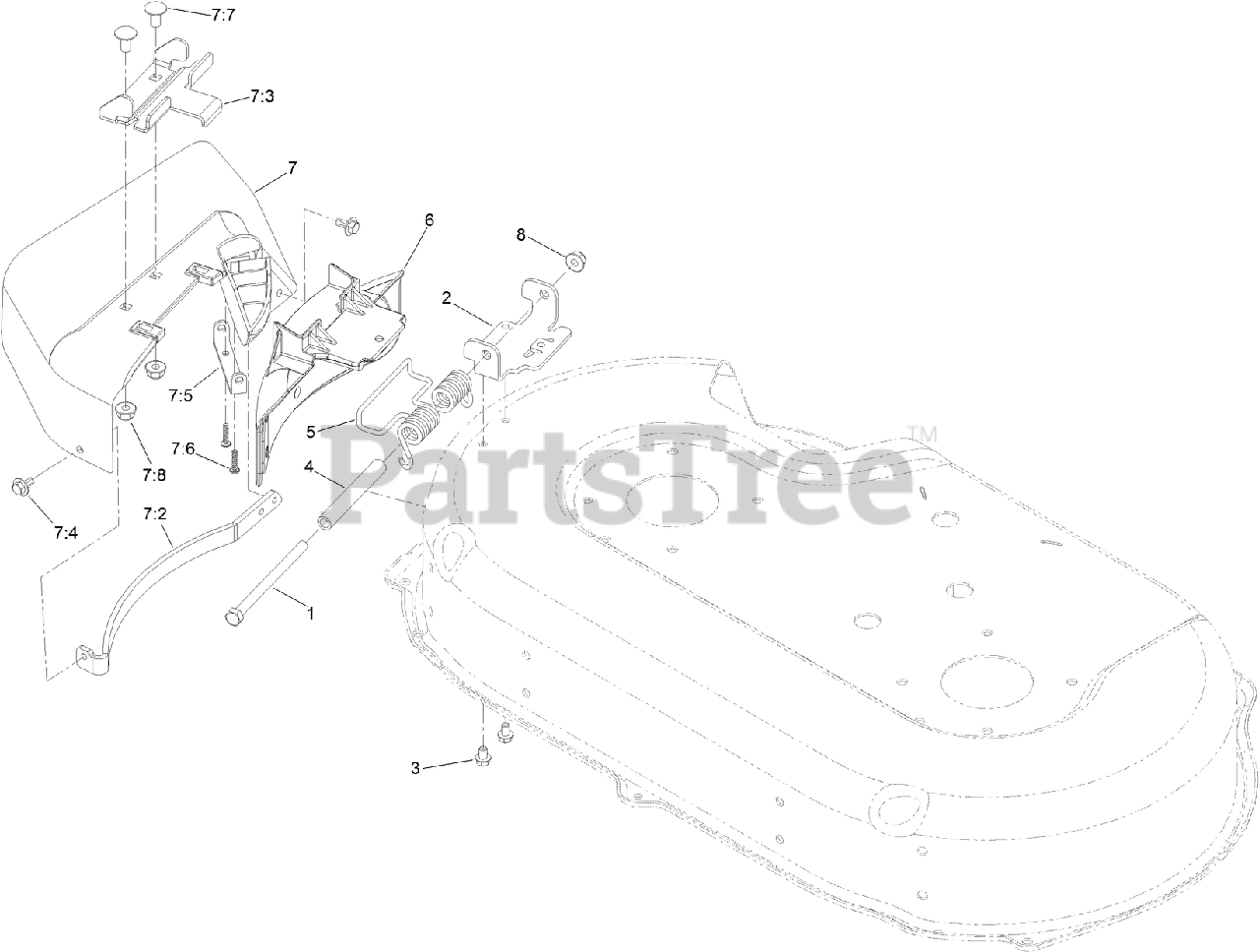

22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 406000000 - 407299999) Side Discharge Chute Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

Side Discharge Chute Assembly Parts Diagram

  • Title

1

Toro 322-38

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

2

Toro 121-9195

HINGE

$18.99

$

In Stock, only 1 left!

0

3

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

4

Toro 125-2478

SPACER

$9.49

$

In Stock, only 1 left!

0

5

Toro 121-9193

SPRING-TORSION

$31.99

$

In Stock, only 3 left!

0

6

Toro 125-5093-01

COVER-DISCHARGE

$41.99

$

In Stock, Qty 20+

0

7

Toro 116-9754

SIDE DISCHARGE CHUTE ASM

$76.99

$

In Stock, only 3 left!

0

7:2

Toro 116-9752-03

GUARD-CHUTE

$26.99

$

In Stock, only 1 left!

0

7:3

Toro 121-9196

BRACKET-CHUTE

$25.99

$

In Stock, only 1 left!

0

7:4

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

7:5

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

7:6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7:7

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 11

0

7:8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
