22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 406000000 - 407299999) Transmission and HOC Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

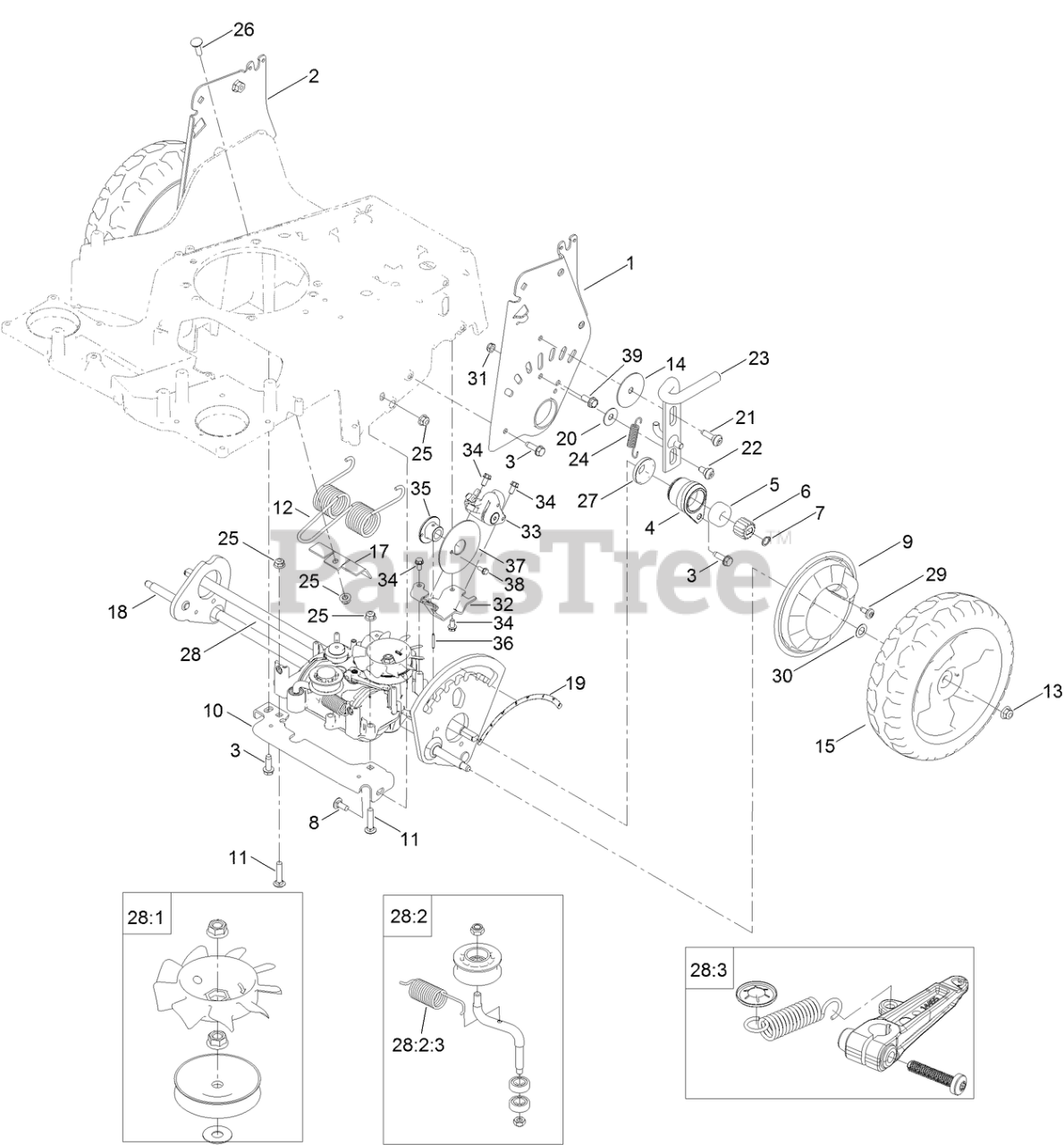

Transmission and HOC Assembly Parts Diagram

  • Title

1

Toro 137-9172-03

HOC PLATE ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

2

Toro 137-9173-03

HOC PLATE ASSEMBLY

$39.99

$

Usually ships in 3-6 days

0

3

Toro 701243

SCREW-THD ROLL, HWH

$3.49

$

In Stock, Qty 20+

0

4

Toro 137-9183

BEARING RETAINER ASM

$65.99

$

In Stock, Qty 20+

0

5

Toro 137-4779

BEARING-BALL, CUSTOM

$17.99

$

In Stock, Qty 20+

0

6

Toro 136-9111

GEAR-PINION, 15T

$5.99

$

In Stock, Qty 20+

0

7

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 136-7095

COVER-WHEEL

$13.99

$

Usually ships in 3-6 days

0

10

Toro 133-8104-03

BRACKET-TRANSMISSION, FRONT

$18.99

$

Usually ships in 3-6 days

0

11

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

12

Toro 121-2368

SPRING-TORSION

$31.99

$

In Stock, only 3 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 125-2540

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0

15

Toro 137-9174

10.5 IN. WHEEL ASM

$95.99

$

In Stock, Qty 11

0

17

Toro 121-2397

BRACKET

$15.99

$

In Stock, only 2 left!

0

18

Toro 139-6647

REAR AXLE ASM

$

$

Not available

19

Toro 127-6865

DECAL-HOC, REAR

$

$

Currently unavailable

20

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

21

Toro 119-2267

SCREW-SHOULDER, BHTF

$5.99

$

In Stock, Qty 20+

0

22

Toro 120-9471

BOLT-SHOULDER

$5.99

$

In Stock, Qty 12

0

23

Toro 120-7090

LOCK-HEIGHT, ADJUST

$41.99

$

In Stock, only 2 left!

0

24

Toro 138-5393

SPRING-EXTENSION

$5.99

$

In Stock, Qty 11

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

27

Toro 137-9185

COVER-BEARING

$1.49

$

In Stock, only 3 left!

0

28

Toro 133-2670

TRANSMISSION-MV702

$576.99

$

In Stock, Qty 8

0

28:1

Toro 139-1837

PULLEY FAN REPAIR KIT

$54.99

$

In Stock, only 2 left!

0

28:2

Toro 139-1842

IDLER PULLEY REPAIR KIT

$127.99

$

In Stock, Qty 20+

0

28:2:3

Toro 139-1845

SPRING-TENSION, BELT

$5.99

$

In Stock, Qty 10

0

28:3

Toro 139-8974

CLUTCH LEVER REPAIR KIT

$32.99

$

Usually ships in 3-6 days

0

29

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

30

Toro 36-4780

WASHER-PLAIN

$8.99

$

In Stock, Qty 20+

0

31

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

32

Toro 138-5394-03

BRACKET-MOUNT, BRAKE

$18.99

$

Usually ships in 3-6 days

0

33

Toro 138-5398

CALIPER-BRAKE, DISC

$86.99

$

In Stock, only 4 left!

0

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Toro 138-5395

HUB-ROTOR
(Superseded to 139-8990)

$7.49

$

In Stock, Qty 6

0

36

Toro 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

37

Toro 138-5396

DISC-ROTOR

$17.99

$

In Stock, only 2 left!

0

38

Toro 139-8960

SCREW-TORX PH THD ROLL

$1.49

$

In Stock, only 2 left!

0

39

Toro 609471

SCREW

$5.49

$

In Stock, Qty 13

0
