22210 - Toro 30" TurfMaster Walk-Behind Mower (SN: 316000001 - 316999999) (2016) Handle Assembly Parts Diagram

30" TurfMaster Walk-Behind Mower

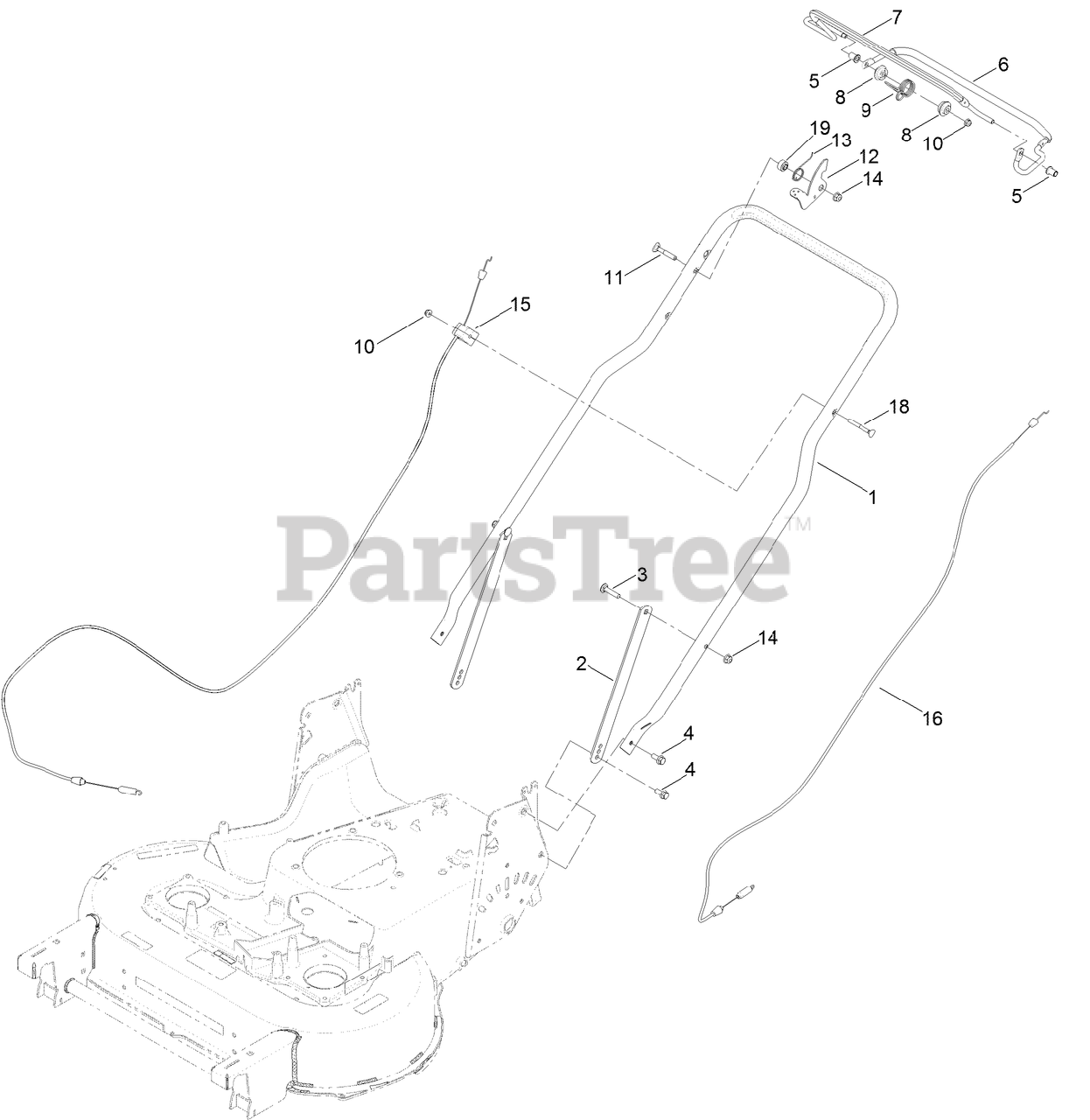

Handle Assembly Parts Diagram

  • Title

1

Toro 120-7086-03

HANDLE

$115.99

$

Usually ships in 3-6 days

0

2

Toro 116-8208-03

SUPPORT-HANDLE

$7.49

$

In Stock, only 2 left!

0

3

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

4

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-1478

BUSHING-HANDLEBAR

$6.99

$

In Stock, Qty 20+

0

6

Toro 116-7907

BAIL-DRIVE COATED

$55.99

$

In Stock, Qty 5

0

7

Toro 109-8442

BAIL

$56.99

$

In Stock, Qty 5

0

8

Toro 109-8457

BUSHING-SPRING, PIVOT

$6.99

$

In Stock, only 4 left!

0

9

Toro 116-5594

SPRING-RETURN, BBC

$3.49

$

In Stock, only 2 left!

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 112-8876

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

12

Toro 116-2998

LEVER-BBC

$19.99

$

In Stock, only 2 left!

0

13

Toro 109-9318

SPRING-LEVER, BBC

$7.49

$

In Stock, Qty 14

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 121-2310

See Supercession: 133-2622
(Superseded to 133-2622)

$45.99

$

In Stock, Qty 20+

0

16

Toro 126-1664

CABLE-TRACTION

$36.99

$

In Stock, Qty 20+

0

18

Toro 92-2270

SCREW-HANDLE

$9.49

$

In Stock, only 2 left!

0

19

Toro 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 2 left!

0

99

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 5

0
