22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Battery Cable Assembly Parts Diagram

e-Dingo Compact Utility Loader

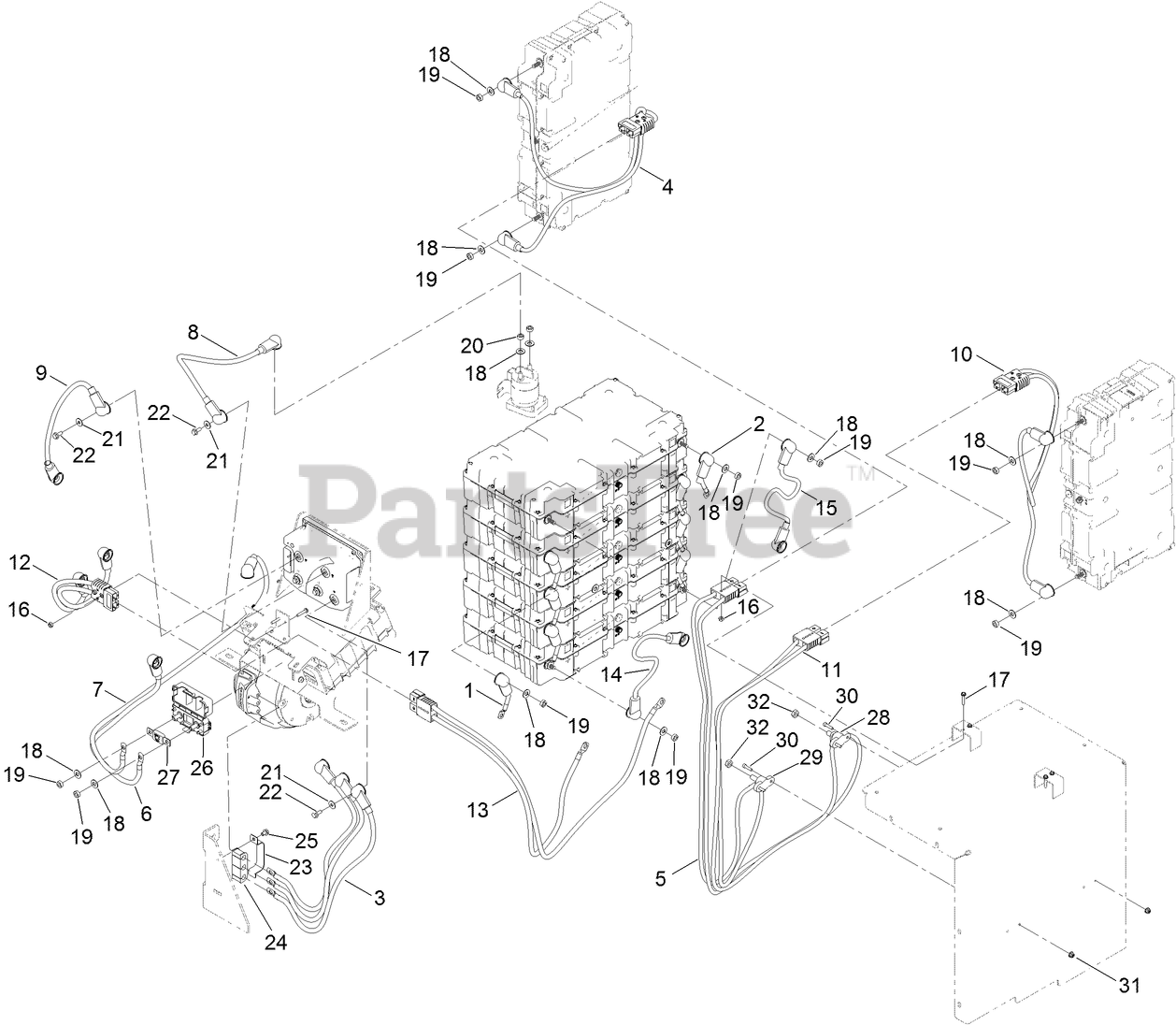

Battery Cable Assembly Parts Diagram

  • Title

1

Toro 122-1513

CABLE-BATTERY,POSITIVE ASM

$22.99

$

Usually ships in 3-6 days

0

2

Toro 122-1514

CABLE-BATTERY,NEGATIVE ASM

$22.99

$

Usually ships in 3-6 days

0

3

Toro 139-0502

CABLE-BATTERY, RD ASM

$39.99

$

Usually ships in 3-6 days

0

4

Toro 139-0503

CABLE-BATTERY, RD/BK ASM

$163.99

$

Usually ships in 3-6 days

0

5

Toro 139-0504

CABLE-BATTERY, RD/BK ASM

$183.99

$

Usually ships in 3-6 days

0

6

Toro 139-0505

CABLE-BATTERY, RD ASM

$

$

Currently unavailable

7

Toro 139-0506

CABLE-BATTERY, RD ASM

$

$

Currently unavailable

8

Toro 139-0508

CABLE-BATTERY, RD ASM

$

$

Currently unavailable

9

Toro 139-0509

CABLE-BATTERY, BK ASM

$

$

Currently unavailable

10

Toro 139-0510

CABLE-BATTERY, RD/BK ASM

$150.99

$

Usually ships in 3-6 days

0

11

Toro 139-0511

CABLE-BATTERY, RD/BK ASM

$149.99

$

Usually ships in 3-6 days

0

12

Toro 139-0513

CABLE-BATTERY, RD/BK ASM

$

$

Currently unavailable

13

Toro 139-0539

CABLE-BATTERY, RD/BK ASM

$

$

Currently unavailable

14

Toro 139-0540

CABLE-BATTERY, RD ASM

$25.99

$

Usually ships in 3-6 days

0

15

Toro 139-0541

CABLE-BATTERY, BK ASM

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 131-6456

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

18

Toro 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

19

Toro 137-8088

NUT-HEX

$2.99

$

Usually ships in 3-6 days

0

20

Toro 09207

NUT

$

$

Currently unavailable

21

Toro 135-6273

WASHER

$1.99

$

Usually ships in 3-6 days

0

22

Toro 114-8414

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

23

Toro 139-7678-01

RETAINER-ISOLATOR

$

$

Currently unavailable

24

Toro 131-8420

ISOLATOR-CLAMP

$10.99

$

Usually ships in 3-6 days

0

25

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

26

Toro 114-3318

HOLDER-FUSE, MEGA

$32.99

$

Usually ships in 3-6 days

0

27

Toro 139-7719

FUSE-200 AMP

$23.99

$

Usually ships in 3-6 days

0

28

Toro 110-8823

BLOCK-JUNCTION

$52.99

$

Usually ships in 3-6 days

0

29

Toro 110-8822

BLOCK-JUNCTION

$57.99

$

Usually ships in 3-6 days

0

30

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 138-0719

NUT-HF

$1.49

$

In Stock, Qty 18

0

32

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0
