22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Controller Mount Assembly Parts Diagram

e-Dingo Compact Utility Loader

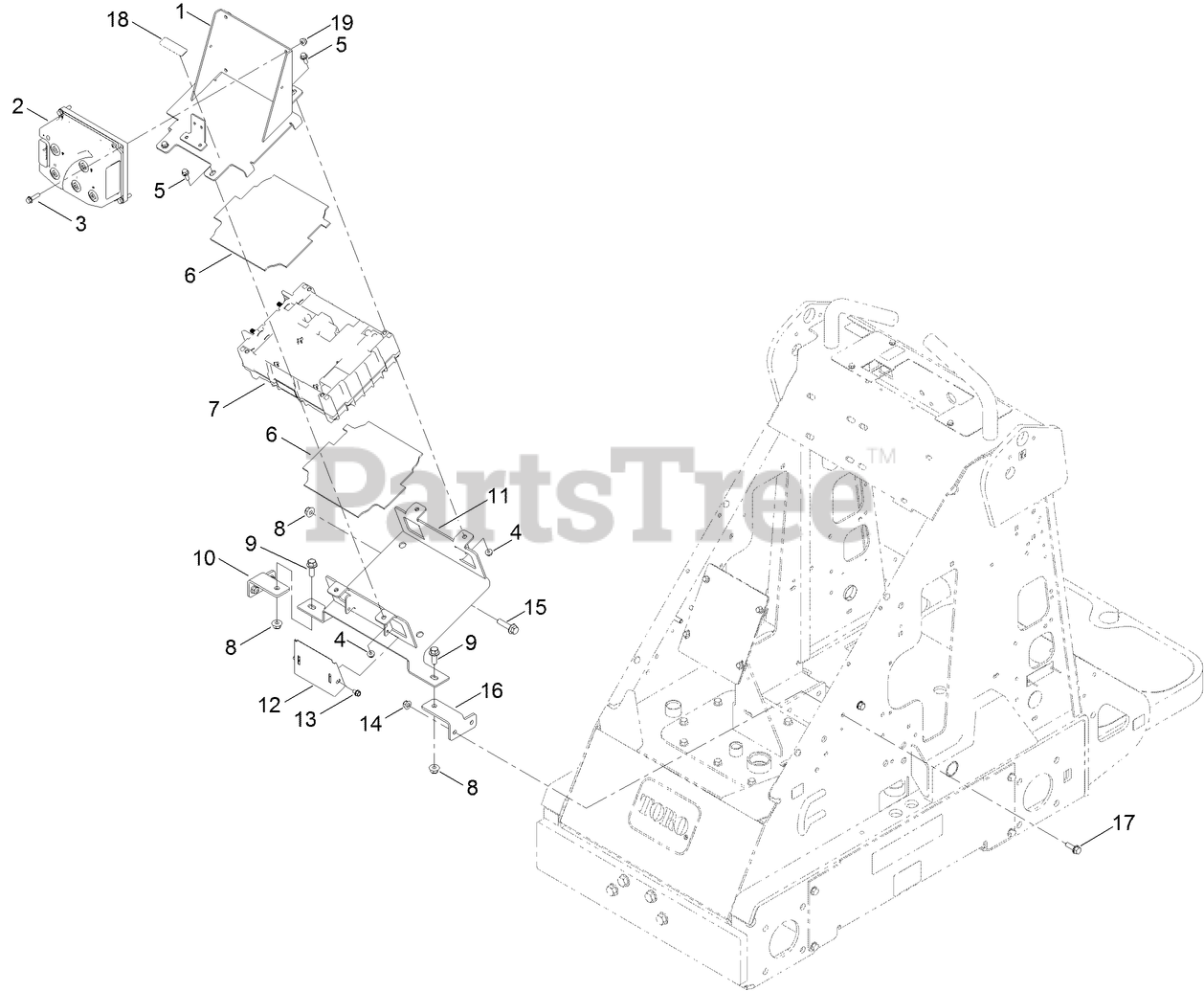

Controller Mount Assembly Parts Diagram

  • Title

1

Toro 139-7667-03

MOUNT-CONTROLLER

$159.99

$

Usually ships in 3-6 days

0

2

Toro 138-4246

INVERTER/CONTROLLER-48V,175Arms

$

$

Currently unavailable

3

Toro 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

6

Toro 139-7673

FOAM-BATTERY, BMS

$9.99

$

Usually ships in 3-6 days

0

7

Toro 137-9651

CONTROLLER

$3842.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

10

Toro 139-0524-03

BRACKET-MOUNT, FRAME (RH)

$

$

Currently unavailable

11

Toro 139-0527-03

MOUNT-BMS

$215.99

$

Usually ships in 3-6 days

0

12

Toro 139-0523-03

ADAPTER, MEGA FUSE

$

$

Currently unavailable

13

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

16

Toro 139-0525-03

BRACKET-MOUNT, FRAME (LH)

$

$

Currently unavailable

17

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

18

Toro 139-7718

DECAL-QUICK DISCONNECT

$8.49

$

Usually ships in 3-6 days

0

19

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0
