22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Frame Assembly Parts Diagram

e-Dingo Compact Utility Loader

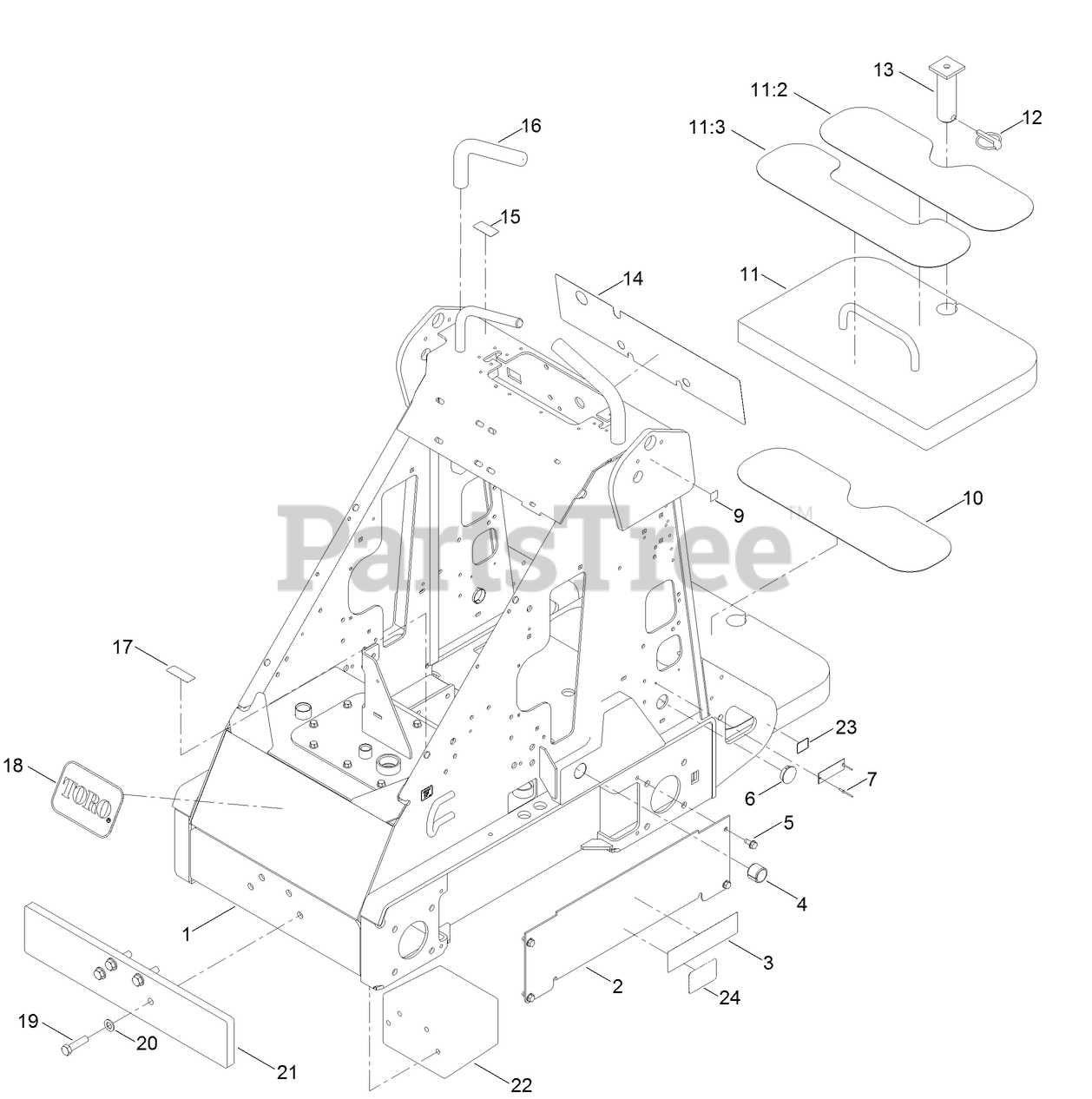

Frame Assembly Parts Diagram

  • Title

1

Toro 139-7681-01

FRAME ASM

$

$

Currently unavailable

2

Toro 106-8178-01

COVER-HOSE

$111.99

$

Usually ships in 3-6 days

0

3

Toro 105-8429

DECAL

$19.99

$

Usually ships in 3-6 days

0

4

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

7

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

9

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0

10

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

11

Toro 112-4947

COUNTERWEIGHT ASM

$1888.99

$

Usually ships in 3-6 days

0

11:2

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

11:3

Toro 112-4948

TREAD

$35.99

$

Usually ships in 3-6 days

0

12

Toro 99-9978

PIN-LYNCH

$11.99

$

Usually ships in 3-6 days

0

13

Toro 99-8638

PIN

$311.99

$

Usually ships in 3-6 days

0

14

Toro 139-7660

DECAL-CONTROL PANEL

$18.99

$

Usually ships in 3-6 days

0

15

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0

16

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

17

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

18

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

19

Toro 01-182-0816

BOLT-HH

$3.99

$

Usually ships in 3-6 days

0

20

Toro HDW01729

WASHER

$1.49

$

Usually ships in 3-6 days

0

21

Toro 138-9905-03

WEIGHT-COUNTER

$314.99

$

Usually ships in 3-6 days

0

22

Toro 139-7704

WEIGHT-FRONT, COUNTER

$518.99

$

Usually ships in 3-6 days

0

23

Toro 132-9051

DECAL-TIEDOWN

$1.99

$

Usually ships in 3-6 days

0

24

Toro 139-7709

DECAL-WATER LEVEL

$12.99

$

Usually ships in 3-6 days

0
