22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Hydraulic Hose Assembly Parts Diagram

e-Dingo Compact Utility Loader

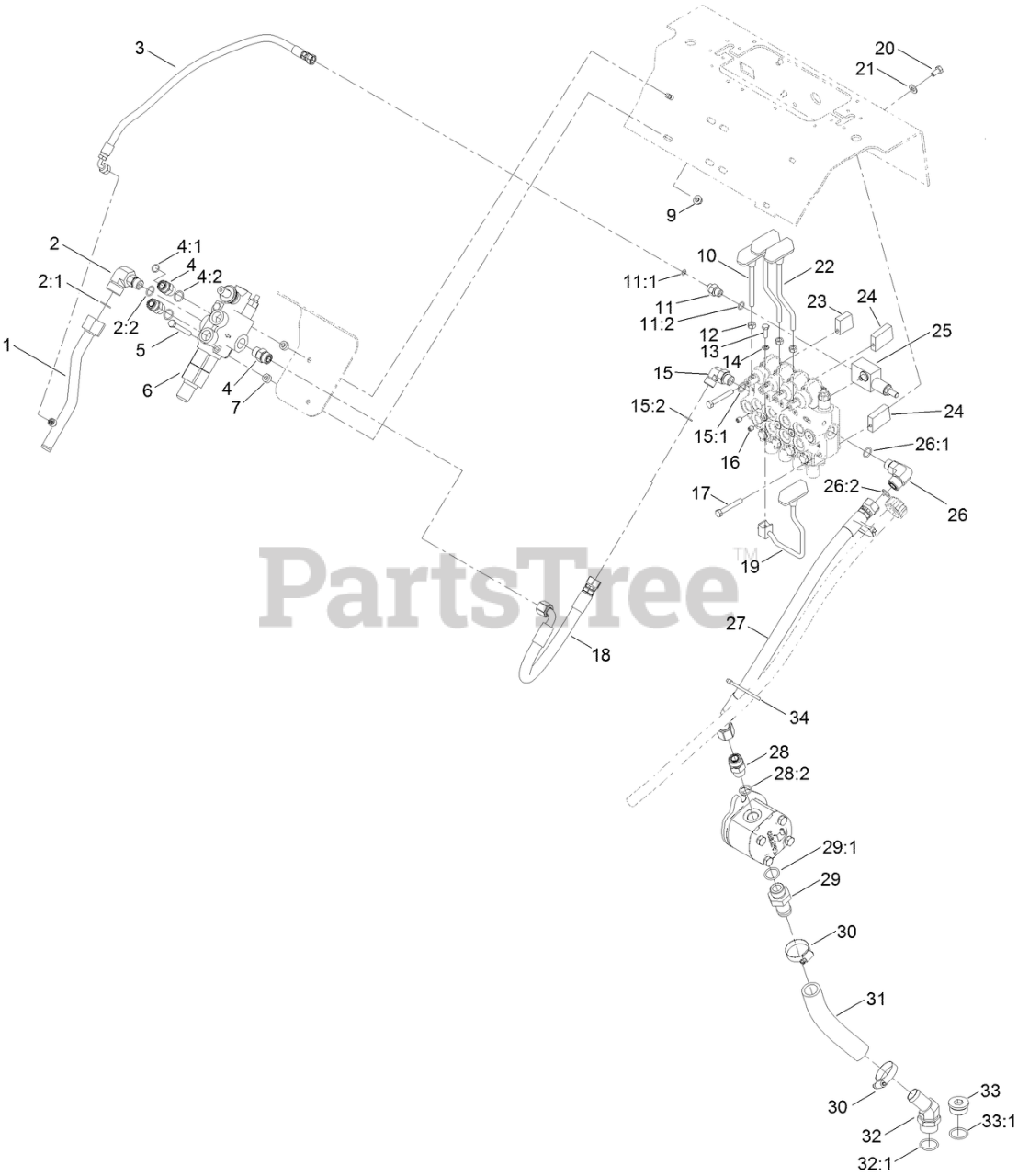

Hydraulic Hose Assembly Parts Diagram

  • Title

1

Toro 139-0531

HYDRAULIC TUBE ASM

$108.99

$

Usually ships in 3-6 days

0

2

Toro 92-5696

FITTING-ELBOW, 90 DEG

$169.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

2:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

3

Toro 139-0532

HYD HOSE ASM

$

$

Not available

4

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

4:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

4:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

6

Toro 99-3077

VALVE-HYD, AUXILIARY

$2067.99

$

Usually ships in 3-6 days

0

6:3

Toro 99-4390

SEAL KIT

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

6:3:1

Toro 99-3074

GASKET

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

6:3:2

Toro 99-3075

GASKET

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

7

Toro 100-2085

SPACER

$21.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 105-7881

LEVER-CYLINDER

$91.99

$

Usually ships in 3-6 days

0

11

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

11:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

12

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

15:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

15:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 105-4068

SCREW-SET, HSH

$14.99

$

Usually ships in 3-6 days

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

18

Toro 139-0537

HYD HOSE ASM

$101.99

$

Usually ships in 3-6 days

0

19

Toro 106-8165

LEVER-CONTROL

$210.99

$

Usually ships in 3-6 days

0

20

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

22

Toro 104-5733

LEVER-DRIVE

$117.99

$

Usually ships in 3-6 days

0

23

Toro 105-7870

SPACER-UPPER V

$83.99

$

Usually ships in 3-6 days

0

24

Toro 108-4728

SPACER V

$95.99

$

Usually ships in 3-6 days

0

25

Toro 105-7882

RELIEF VALVE ASM

$628.99

$

Usually ships in 3-6 days

0

25:1

Toro 105-8358

CARTRIDGE-VALVE, RELIEF

Note: Not illustrated

$256.99

$

Usually ships in 3-6 days

0

25:2

Toro 105-8357

SEAL KIT

Note: Not illustrated

$102.99

$

Usually ships in 3-6 days

0

26

Toro 340-153

FITTING-ELBOW, 90 DEG

$103.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-79

O-RING

Note: Not illustrated

$6.49

$

In Stock, Qty 20+

0

26:2

Toro 237-151

O-RING

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

27

Toro 139-0522

HYD HOSE ASM

$203.99

$

Usually ships in 3-6 days

0

28

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

28:1

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

28:2

Toro 237-80

O-RING

Note: Not illustrated

$7.49

$

In Stock, Qty 7

0

29

Toro 99-3017

FITTING

$89.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

30

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

31

Toro 137-0078

HOSE

$23.99

$

Usually ships in 3-6 days

0

32

Toro 131-9612

FITTING-ELBOW-45

$204.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

33

Toro 105-3921

FITTING-PLUG

$44.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

34

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
