22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Parking Brake Assembly Parts Diagram

e-Dingo Compact Utility Loader

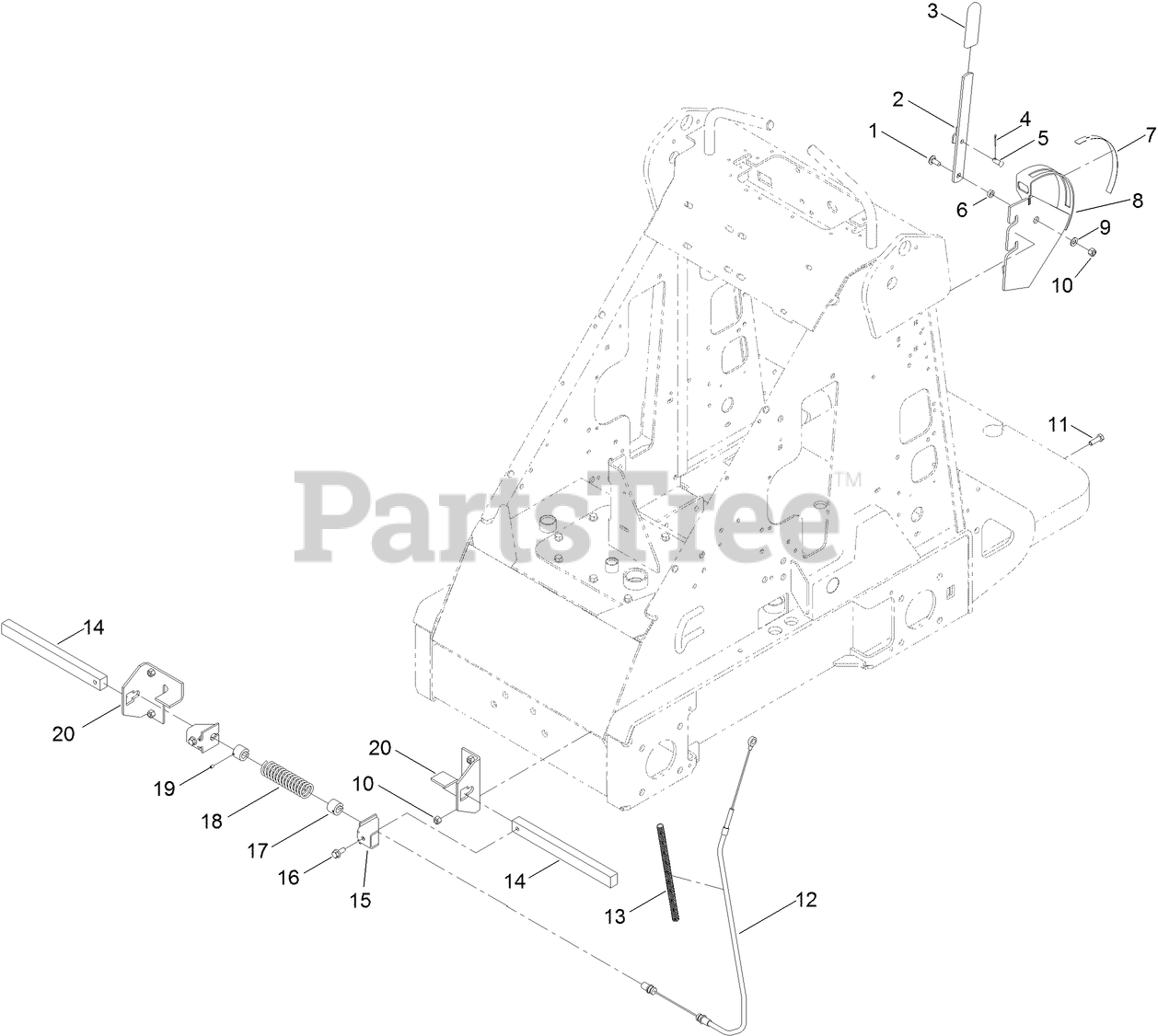

Parking Brake Assembly Parts Diagram

  • Title

1

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

2

Toro 100-1684-03

LEVER-BRAKE

$115.99

$

Usually ships in 3-6 days

0

3

Toro 62-9130

GRIP-HANDLE

$9.49

$

In Stock, only 2 left!

0

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 9

0

6

Toro 100-1683

HUB-LEVER

$53.99

$

Usually ships in 3-6 days

0

7

Toro 139-7707

DECAL-PARKING BRAKE

$5.99

$

Usually ships in 3-6 days

0

8

Toro 105-8414-03

PLATE-BRAKE

$281.99

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 100-1679

CABLE

$206.99

$

Usually ships in 3-6 days

0

13

Toro 100-4697

TUBE-CONVOLUTED

$9.49

$

Usually ships in 3-6 days

0

14

Toro 100-1674-03

BAR-BRAKE

$146.99

$

Usually ships in 3-6 days

0

15

Toro 100-1677-03

BRACKET-CABLE
(Superseded to 161-9463-0P)

$63.99

$

Usually ships in 3-6 days

0

16

Toro 100-1668

SCREW-HHF

$7.49

$

In Stock, Qty 7

0

17

Toro 100-6274

TUBE-GUIDE

$23.99

$

Usually ships in 3-6 days

0

18

Toro 100-1678-03

SPRING

$38.99

$

Usually ships in 3-6 days

0

19

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 100-1676-03

BRACKET-BRAKE

$65.99

$

Usually ships in 3-6 days

0
