22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 415200000 - 416599999) Hydraulic Loader Cylinder Assembly Parts Diagram

e-Dingo Compact Utility Loader

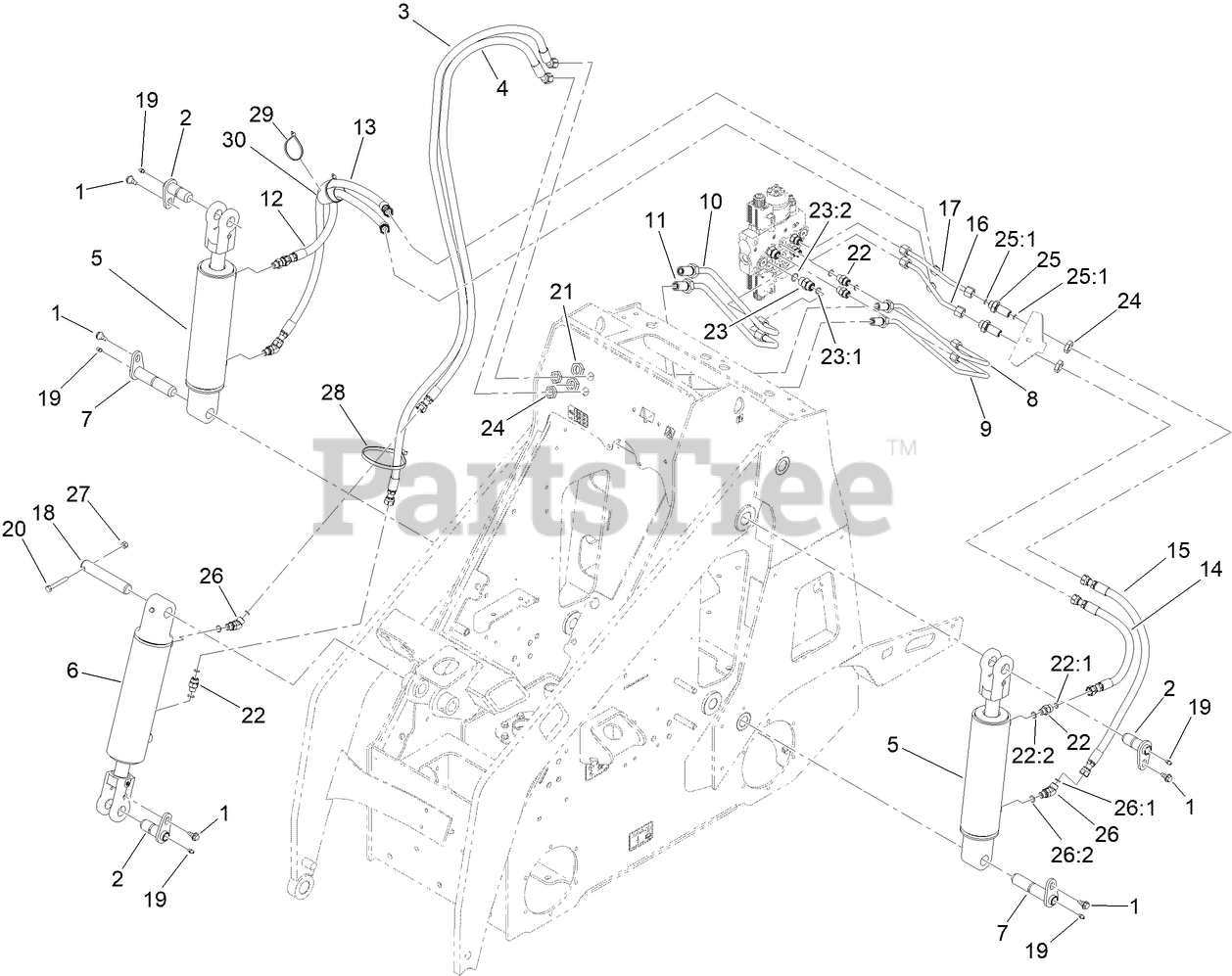

Hydraulic Loader Cylinder Assembly Parts Diagram

  • Title

1

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

2

Toro 112-2609

PIN-PIVOT

$121.99

$

In Stock, only 2 left!

0

3

Toro 140-7253

HOSE ASM-HYD

$132.99

$

Usually ships in 3-6 days

0

4

Toro 140-7254

HOSE ASM-HYD

$118.99

$

Usually ships in 3-6 days

0

5

Toro 140-7290

CYLINDER-HYDRAULIC

$850.99

$

Usually ships in 3-6 days

0

5:99

Toro 139-7713

KIT-SEAL, HYDRAULIC CYL

Note: Not illustrated

$261.99

$

In Stock, only 1 left!

0

6

Toro 140-7292

HYD-CYLINDER

$892.99

$

Usually ships in 3-6 days

0

6:99

Toro 139-7713

KIT-SEAL, HYDRAULIC CYL

Note: Not illustrated

$261.99

$

In Stock, only 1 left!

0

7

Toro 144-2910

PIN-PIVOT

$121.99

$

Usually ships in 3-6 days

0

8

Toro 144-2959

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

9

Toro 144-2960

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

10

Toro 144-2961

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

11

Toro 144-2962

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

12

Toro 144-2971

HOSE ASM-HYD

$65.99

$

Usually ships in 3-6 days

0

13

Toro 144-2972

HOSE ASM-HYD

$71.99

$

Usually ships in 3-6 days

0

14

Toro 144-2976

HOSE ASM-HYD

$59.99

$

Usually ships in 3-6 days

0

15

Toro 144-2977

HOSE ASM-HYD

$54.99

$

Usually ships in 3-6 days

0

16

Toro 145-2374

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

17

Toro 145-2375

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

18

Toro 145-2394

PIN-LOCKING

$133.99

$

Usually ships in 3-6 days

0

19

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

20

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

21

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

22

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

22:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

22:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

23

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

23:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

23:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

24

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

25

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$24.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

26

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

26:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

27

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

30

Toro AU112950

PROTECTOR-HOSE

$32.99

$

Usually ships in 3-6 days

0
