22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 415200000 - 416599999) Hydraulic Tank Filter and Hydraulic Bulkhead Assembly Parts Diagram

e-Dingo Compact Utility Loader

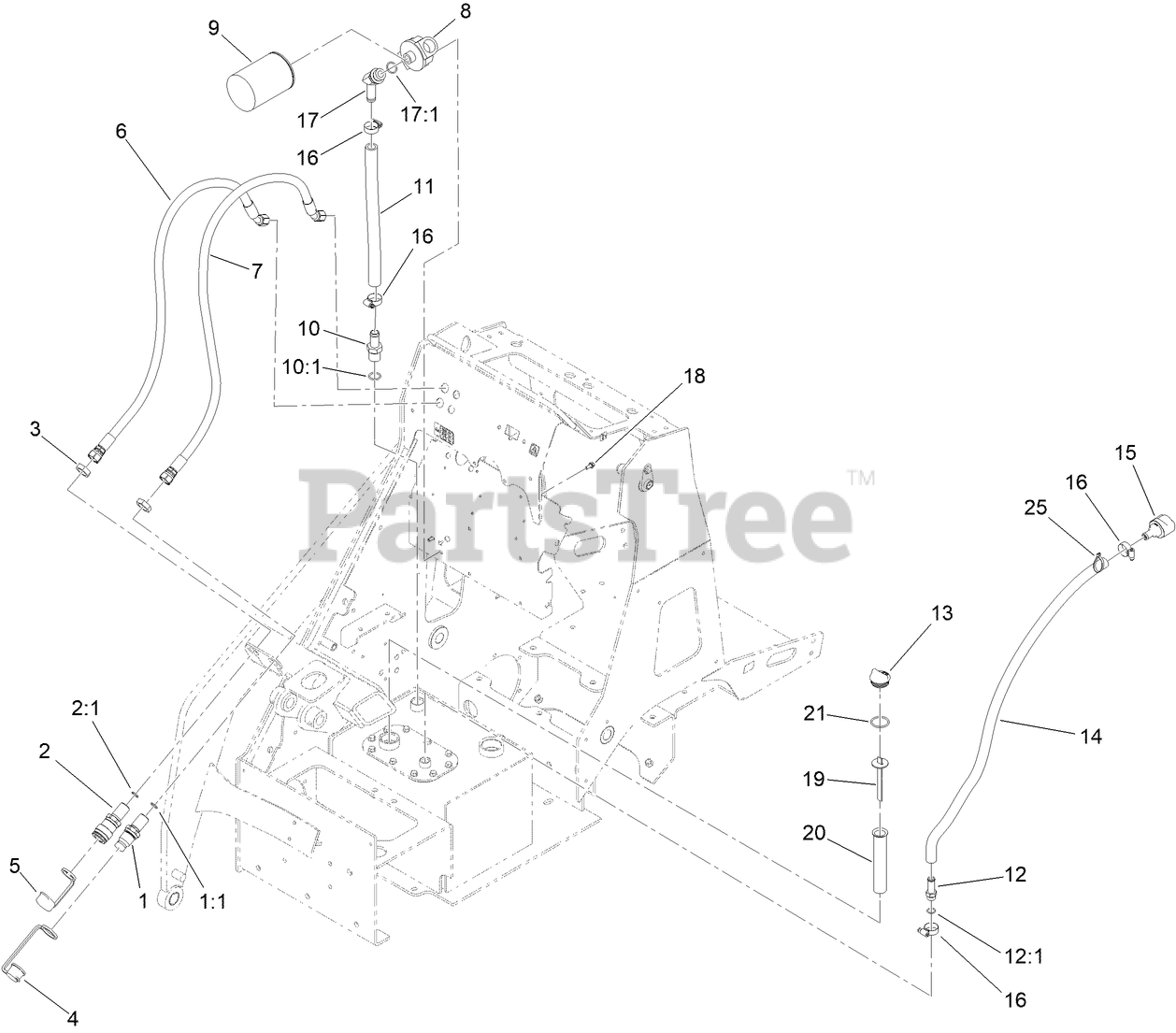

Hydraulic Tank Filter and Hydraulic Bulkhead Assembly Parts Diagram

  • Title

1

Toro 105-8395

BULKHEAD NIPPLE ASM

$270.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

1:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

2

Toro 105-8394

BULKHEAD COUPLER ASM

$338.99

$

In Stock, only 1 left!

0

2:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

3

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

4

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

0

5

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

0

6

Toro 144-2973

HOSE ASM-HYD

$112.99

$

Usually ships in 3-6 days

0

7

Toro 144-2974

HOSE ASM-HYD

$114.99

$

Usually ships in 3-6 days

0

8

Toro 92-5821

HEAD-FILTER

$217.99

$

Usually ships in 3-6 days

0

9

Toro 86-3010

FILTER-OIL

$25.99

$

In Stock, Qty 7

0

10

Toro 354-73

FITTING

$44.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

11

Toro 145-4701

HOSE-HYD, RETURN

$61.99

$

Usually ships in 3-6 days

0

12

Toro 107-7569

FITTING-STR

$108.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

13

Toro 93-7498

PLUG-PLASTIC

$30.99

$

In Stock, only 4 left!

0

14

Toro 147-6018

HOSE - VENT

$39.99

$

Usually ships in 3-6 days

0

15

Toro 147-6017

BREATHER (AIR)

$41.99

$

Usually ships in 3-6 days

0

16

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

17

Toro 354-127

FITTING-ELBOW45

$88.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

18

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 8

0

19

Toro 147-6024

DIPSTICK - OIL,

$40.99

$

Usually ships in 3-6 days

0

20

Toro 61-2790

FILTER-SCREEN

$77.99

$

Usually ships in 3-6 days

0

21

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
