22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 418037000 - 999999999) Onboard Charger Assembly Parts Diagram

e-Dingo Compact Utility Loader

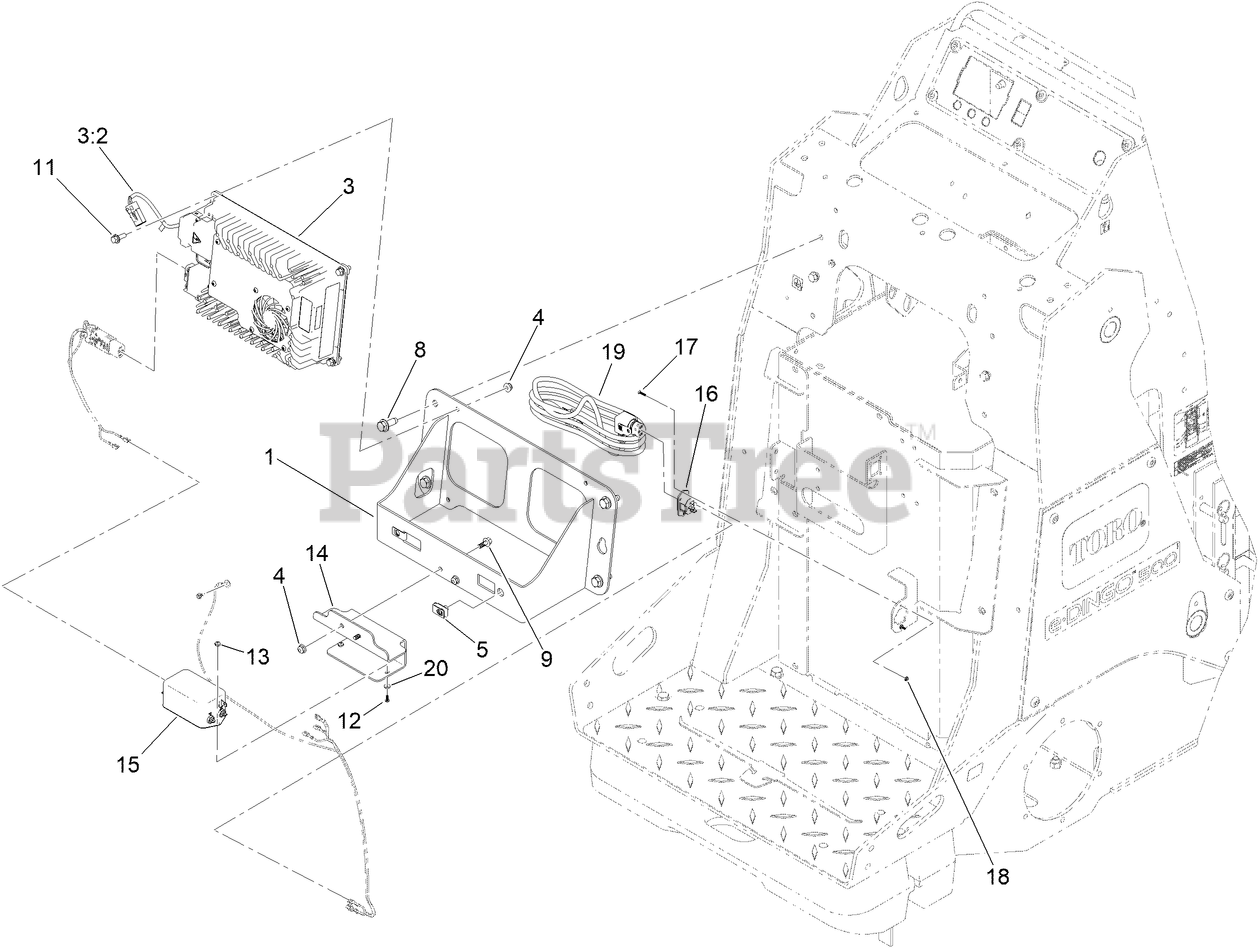

Onboard Charger Assembly Parts Diagram

  • Title

1

Toro 145-2369-03

MOUNT-CHARGER [BLACK]

$

$

Currently unavailable

3

Toro 145-1177

CHARGER-ONBOARD

$1969.99

$

Usually ships in 3-6 days

0

3:2

Toro 147-3234

KIT-SERVICE, DC HARNESS

$284.99

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

8

Toro 139-2428

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

9

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

11

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 363-6518

SCR,MCH,6-32X3/8,PHPH,SST,ROHS

$

$

Currently unavailable

13

Toro 120-9684

NUT-LOCK

$

$

Currently unavailable

14

Toro 147-6007-0P

BRACKET - FILTER

$

$

Currently unavailable

15

Toro 147-3225

FILTER

$247.99

$

Usually ships in 3-6 days

0

16

Toro 147-3230

CONNECTOR-IEC

$13.99

$

Usually ships in 3-6 days

0

17

Toro 510-0015

Ball, Governor

$

$

Currently unavailable

18

Toro 3296-52

NUT-LOCK, NI

$7.49

$

Usually ships in 3-6 days

0

19

Toro 107-0382

POWERCORD-AC, EUROPE

Note: Not illustrated

$41.99

$

Usually ships in 3-6 days

0

19

Toro 107-0383

POWERCORD-AC, U.K.

Note: Not illustrated

$286.99

$

Usually ships in 3-6 days

0

19

Toro 137-7983

CORD-AC, 120V

$99.99

$

In Stock, only 1 left!

0

20

Toro 3256-12

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
