22232 - Toro 30" TurfMaster Revolution 60V Walk-Behind Mower (SN: 400000000 - 999999999) Spindle and Blade Assembly Parts Diagram

30" TurfMaster Revolution 60V Walk-Behind Mower

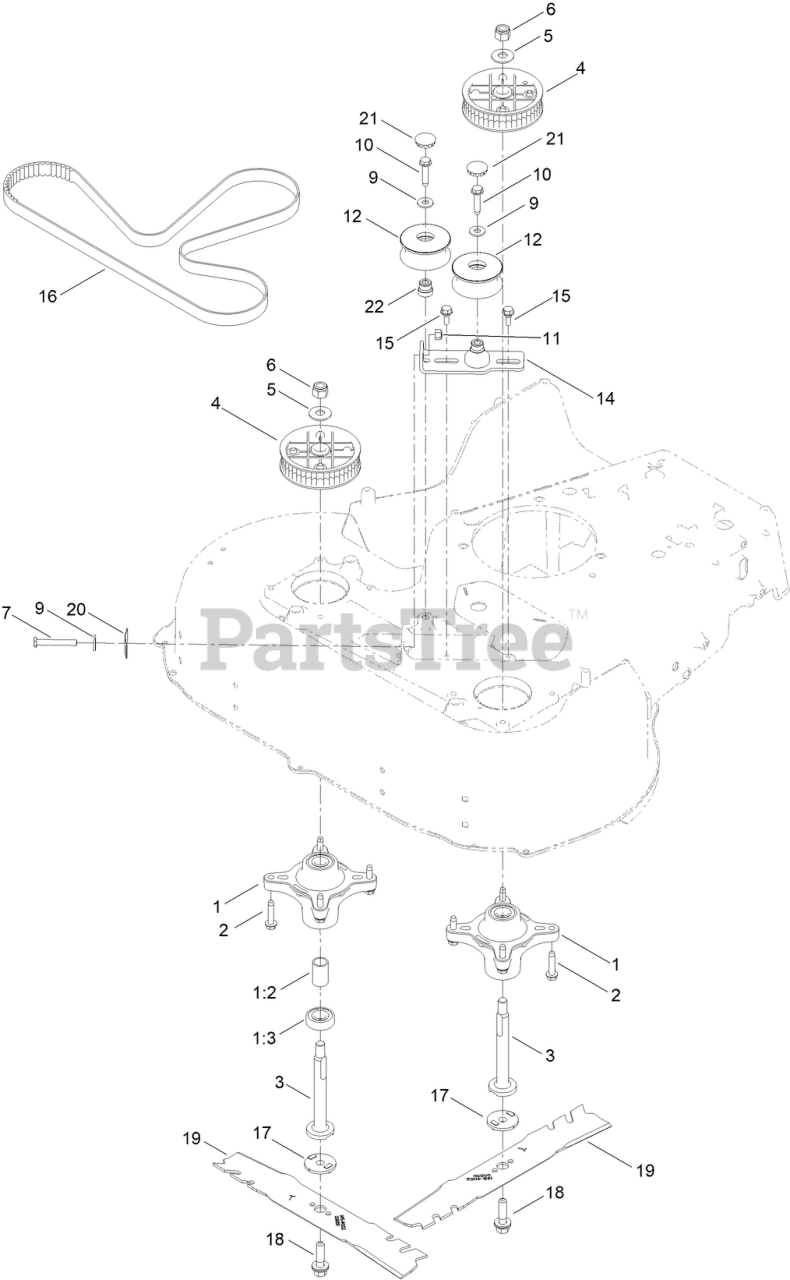

Spindle and Blade Assembly Parts Diagram

  • Title

1

Toro 121-9107

SPINDLE ASM

$82.99

$

In Stock, Qty 20+

0

1:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

1:3

Toro 138-9770

BEARING-BALL

$8.99

$

In Stock, Qty 20+

0

2

Toro 139-1731

SCREW-THD ROLL, HWH

$1.49

$

In Stock, Qty 20+

0

3

Toro 139-6612

SHAFT-SPINDLE

$33.99

$

In Stock, Qty 20+

0

4

Toro 121-9100

SPROCKET

$59.99

$

In Stock, Qty 20+

0

5

Toro 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 16

0

6

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

7

Toro 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32144-57

SCREW

$2.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 126-5880

PULLEY-IDLER, FLAT

$63.99

$

In Stock, Qty 20+

0

12

Toro 126-7890

PULLEYS AND IDLER KIT

$192.99

$

Usually ships in 3-6 days

0

14

Toro 147-0470

BRACKET-IDLER

$

$

Currently unavailable

15

Toro 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

16

Toro 145-4001

BELT-SYNCHRONOUS

$88.99

$

Usually ships in 3-6 days

0

17

Toro 120-5236

ADAPTER-BLADE

$7.99

$

In Stock, Qty 20+

0

18

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

19

Toro 145-4002-03

BLADE-ROTARY [BLACK]

$27.99

$

Usually ships in 3-6 days

0

20

Toro 121-2336

SPRING-FLAT

$8.99

$

In Stock, Qty 20+

0

21

Toro 126-7151

PLUG-BUTTON

$5.99

$

In Stock, Qty 20+

0

22

Toro 131-4504

ADAPTER-BORE

$5.99

$

In Stock, Qty 20+

0
