22260 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Short Block Assembly Parts Diagram

Walk-Behind Mower

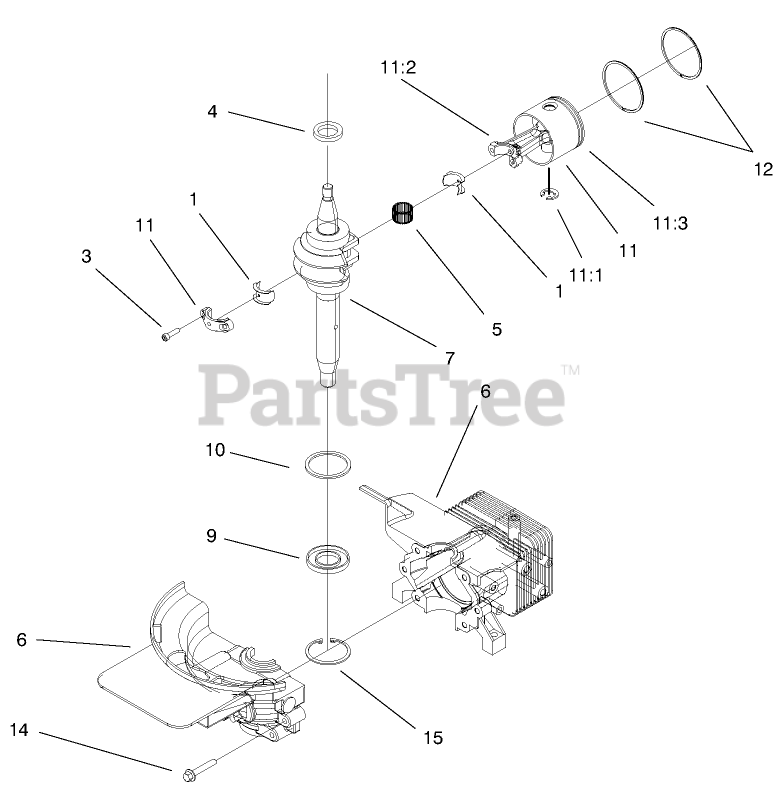

Short Block Assembly Parts Diagram

  • Title

1

Toro 677982

LINER ASM

$51.99

$

In Stock, only 4 left!

0

2

Toro 610372

SEALER-LOCTITE (6 ML TUBE)

Note: Not illustrated

$30.99

$

Usually ships in 3-6 days

0

2

Toro 609790

SEALER-LOCTITE (50 ML PKG)

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0

3

Toro 611393

SCREW-HSH

$23.99

$

Usually ships in 3-6 days

0

4

Toro 611396

SEAL-OIL

$8.49

$

In Stock, Qty 20+

0

5

Toro 683911

BEARING-NEEDLE

$

$

Not available

6

Toro 95-7631

CYLINDER AND CRANKCASE ASM

$

$

Not available

7

Toro 99-2920

CRANKSHAFT AND BEARING ASM

$353.99

$

Usually ships in 3-6 days

0

9

Toro 94-5764

SEAL-OIL

$14.99

$

In Stock, only 3 left!

0

10

Toro 94-5765

RING-RETAINING, EXT.

$

$

Not available

11

Piston rod Ay

$

$

Not available

11:1

Toro 303712

RING-RETAINING

$3.49

$

In Stock, Qty 9

0

11:2

Toro 95-7629

CONNECTING ROD ASM

$171.99

$

Usually ships in 3-6 days

0

11:3

Toro 95-7628

Piston Rod ASM
(Superseded to 100-2916)

$

$

Not available

12

Toro 95-7626

See Supercession: 100-2916
(Superseded to 100-2916)

$

$

Not available

14

Toro 94-5781

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

15

Toro 98-7046

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 10

0
