22283 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 416800000 - 999999999) Engine and Blade Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

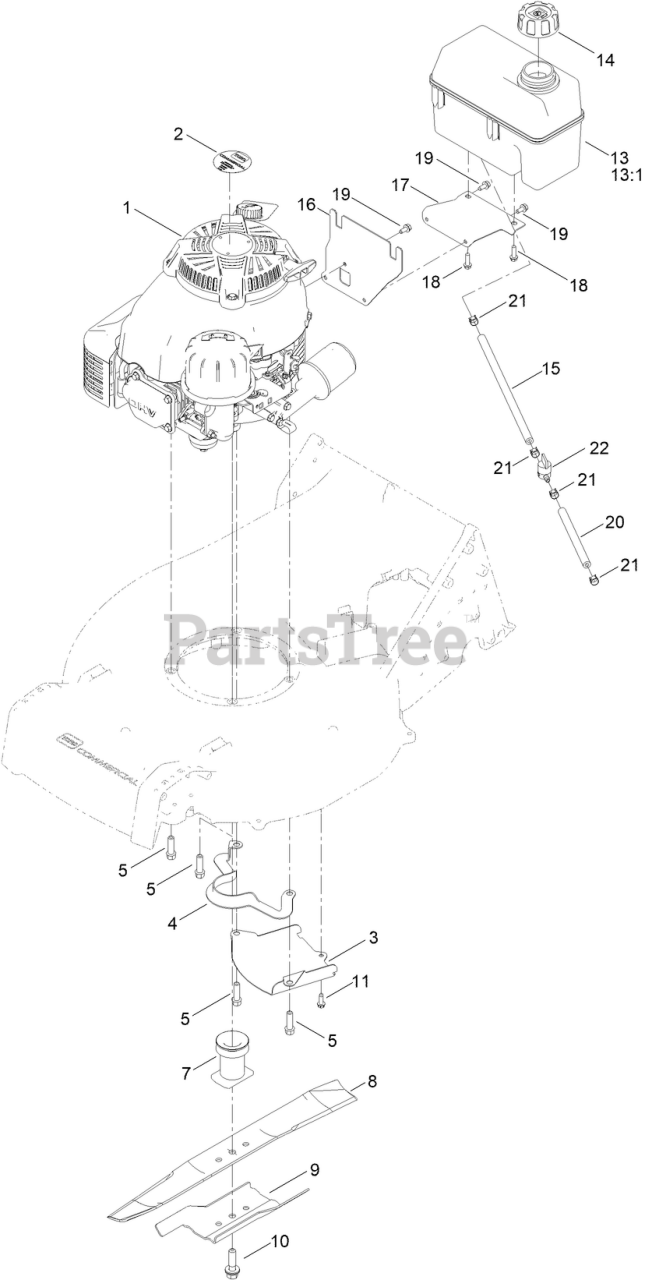

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FJ180V

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FJ180V

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

2

Toro 110-0520

DECAL

$37.99

$

Usually ships in 3-6 days

0

3

Toro 125-1005-03

SHIELD-GRASS

$23.99

$

Usually ships in 3-6 days

0

4

Toro 108-8110-03

GUIDE-BELT

$17.99

$

In Stock, only 2 left!

0

5

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 139-1816

DRIVER-BLADE

$25.99

$

Usually ships in 3-6 days

0

8

Toro 133-8183-03

BLADE-21IN, RECYCLING

$25.99

$

In Stock, Qty 20+

0

9

Toro 125-1069-03

ACCELERATOR-BLADE

$18.99

$

In Stock, Qty 8

0

10

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 117-3510

TANK-FUEL

$107.99

$

In Stock, only 1 left!

0

13:1

Toro 117-7400

FITTING-PLASTIC

$7.49

$

In Stock, Qty 11

0

14

Toro 93-7198

CAP-GAS

$17.99

$

In Stock, Qty 5

0

15

Toro 109-0297

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

16

Toro 125-8381-03

BRACKET-TANK, MOUNTING

$14.99

$

In Stock, only 1 left!

0

17

Toro 125-8382-03

BRACKET-TANK, SUPPORT

$12.99

$

Usually ships in 3-6 days

0

18

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

19

Toro 125-8383

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

20

Toro 107-0588

HOSE-FUEL

$6.99

$

In Stock, Qty 11

0

21

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

22

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0
