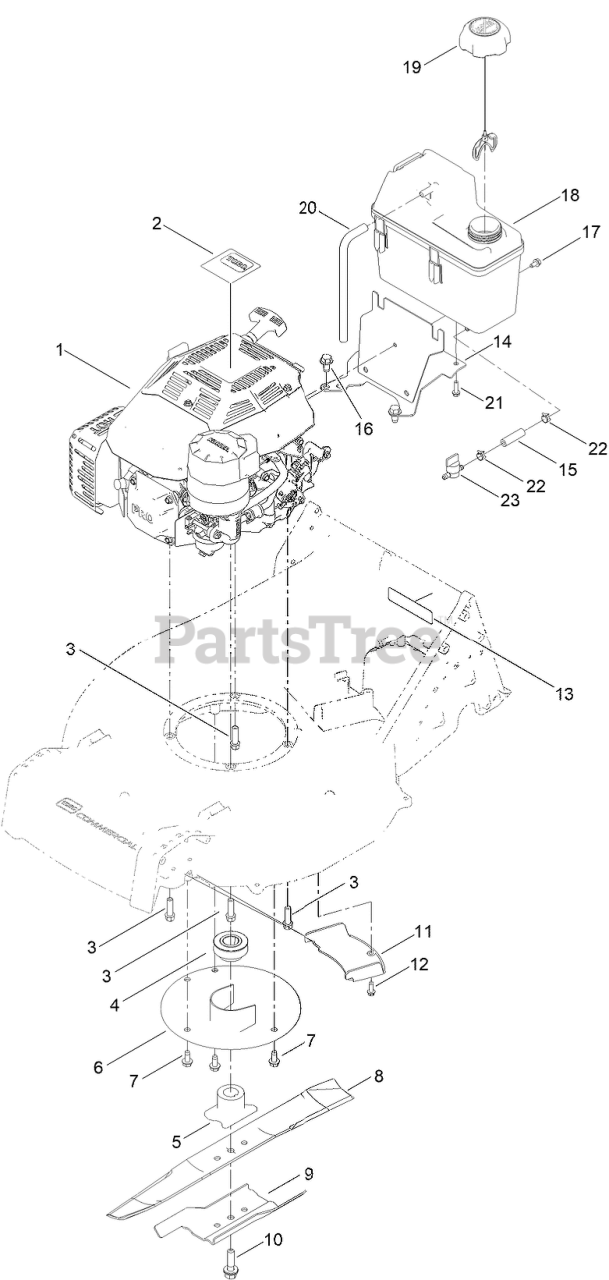

22287 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 410000000 - 413999999) Engine and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER CV173

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER CV173

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

2

Toro 140-4116

DECAL-KOHLER

$20.99

$

Usually ships in 3-6 days

0

3

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 125-8396

PULLEY-DRIVER

$54.99

$

Usually ships in 3-6 days

0

5

Toro 125-1004

DRIVER-BLADE

$38.99

$

In Stock, only 1 left!

0

6

Toro 125-8370

PROTECTOR-CRANKSHAFT

$118.99

$

In Stock, only 2 left!

0

7

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 133-8183-03

BLADE-21IN, RECYCLING

$25.99

$

In Stock, Qty 20+

0

9

Toro 125-1069-03

ACCELERATOR-BLADE

$18.99

$

In Stock, Qty 8

0

10

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

11

Toro 125-1024

COVER-BELT

$12.99

$

Usually ships in 3-6 days

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

14

Toro 133-8173-03

TANK MOUNT ASM

$124.99

$

Usually ships in 3-6 days

0

15

Toro 119-7856

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

16

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

17

Toro 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

18

Toro 114-0280

TANK-FUEL

$163.99

$

Usually ships in 3-6 days

0

19

Toro 137-4127

CAP-FUEL

$25.99

$

In Stock, Qty 20+

0

20

Toro 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 10

0

21

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

22

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

23

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0
