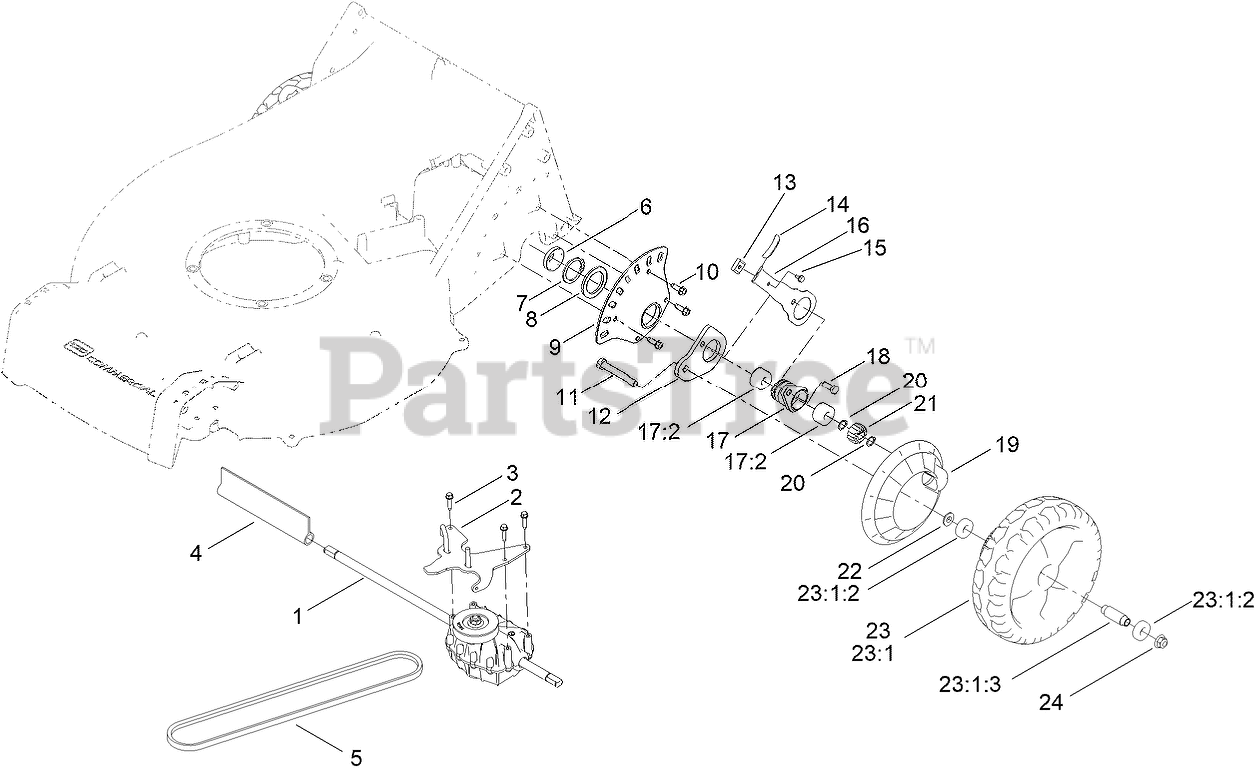

22287 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 410000000 - 413999999) Transmission and Rear Wheel Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

Transmission and Rear Wheel Assembly Parts Diagram

  • Title

1

Toro 140-4011

TRANSMISSION-HD

$258.99

$

Usually ships in 3-6 days

0

2

Toro 140-4012-03

BELT GUIDE ASM

$38.99

$

Usually ships in 3-6 days

0

3

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 2 left!

0

4

Toro 130-9681

COVER-SHAFT, TRANSMISSION

$4.99

$

Usually ships in 3-6 days

0

5

Toro 125-8395

BELT-V

$19.99

$

In Stock, Qty 13

0

6

Toro 127-6848

COVER-BEARING

$3.99

$

In Stock, Qty 6

0

7

Toro 32151-10

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

8

Toro 98-1452

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

9

Toro 130-6422

PLATE-HOC, REAR

$15.99

$

In Stock, only 3 left!

0

10

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

11

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

12

Toro 133-2641

ARM-PIVOT, REAR

$12.99

$

In Stock, Qty 12

0

13

Toro 131-5377

KEY-ARM, SPRING

$1.99

$

In Stock, Qty 20+

0

14

Toro 125-1093

KNOB-LEVER, HOC

$5.49

$

In Stock, Qty 20+

0

15

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

16

Toro 121-1448-03

ARM-SPRING, REAR

$11.99

$

In Stock, Qty 12

0

17

Toro 136-5894

BEARING RETAINER ASM

$50.99

$

In Stock, Qty 20+

0

17:2

Toro 133-2606

BEARING-BALL, CUSTOM

$17.99

$

In Stock, Qty 20+

0

18

Toro 133-2668

SCREW-HH

$1.99

$

In Stock, Qty 9

0

19

Toro 133-2635

COVER-WHEEL

$13.99

$

In Stock, only 3 left!

0

20

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

21

Toro 131-5399

GEAR-PINION, 15T

$5.99

$

In Stock, Qty 20+

0

22

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0

23

Toro 133-2640

9-INCH WHEEL ASM

$71.99

$

In Stock, Qty 6

0

23:1

WHEEL

Note: Not serviced separately

$

$

Not available

23:1:2

Toro 133-2603

BEARING-BALL

$29.99

$

In Stock, Qty 20+

0

23:1:3

Toro 125-1077

SPACER

$7.49

$

In Stock, only 3 left!

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+
