22295 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 413000000 - 415299999) Transmission Assembly No. 131-5350 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

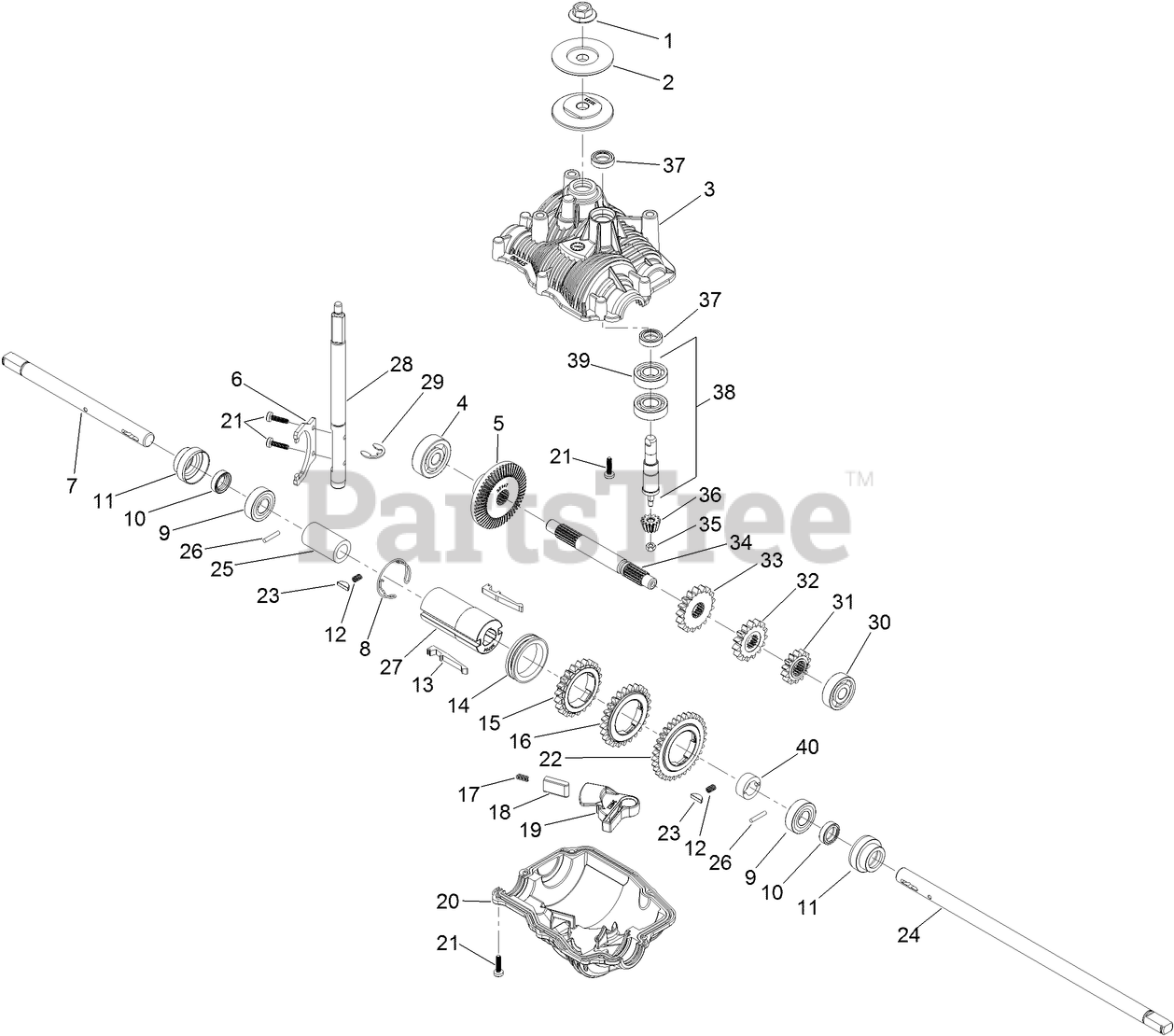

Transmission Assembly No. 131-5350 Parts Diagram

  • Title

1

Toro 130-2301

NUT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

2

Toro 130-2326

FLANGE-PULLEY

$14.99

$

Usually ships in 3-6 days

0

3

Toro 130-2336

CASE-UPPER, TRANSMISSION

$54.99

$

Usually ships in 3-6 days

0

4

Toro 130-2318

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

5

Toro 130-2311

GEAR-BEVEL, 53 TOOTH

$58.99

$

Usually ships in 3-6 days

0

6

Toro 130-2327

FORK-SHIFT

$12.99

$

Usually ships in 3-6 days

0

7

Toro 133-2611

SHAFT-OUTPUT, SHORT

$71.99

$

In Stock, only 2 left!

0

8

Toro 130-2322

SPRING-RETAINING

$9.49

$

Usually ships in 3-6 days

0

9

Toro 130-9708

BEARING-BALL

$13.99

$

In Stock, only 3 left!

0

10

Toro 130-2325

SEAL

$6.49

$

In Stock, only 2 left!

0

11

Toro 130-2333

BUSHING-SHAFT, OUTPUT

$34.99

$

Usually ships in 3-6 days

0

12

Toro 133-2615

SPRING

$2.99

$

In Stock, only 2 left!

0

13

Toro 130-2328

KEY-SHIFT

$27.99

$

Usually ships in 3-6 days

0

14

Toro 130-2329

RING-SHIFT

$39.99

$

Usually ships in 3-6 days

0

15

Toro 130-2315

GEAR-OUTPUT, 22 TOOTH

$27.99

$

Usually ships in 3-6 days

0

16

Toro 130-2316

GEAR-OUTPUT, 25 TOOTH

$28.99

$

Usually ships in 3-6 days

0

17

Toro 130-2321

SPRING-INDEXING, SHIFTER

$2.49

$

In Stock, only 2 left!

0

18

Toro 130-2332

PIN-INDEXING, SHIFTER

$4.49

$

In Stock, only 2 left!

0

19

Toro 130-2331

LEVER-INDEXING, SHIFTER

$11.99

$

In Stock, only 1 left!

0

20

Toro 130-2337

CASE-LOWER, TRANSMISSION

$68.99

$

Usually ships in 3-6 days

0

21

Toro 130-2302

SCREW

$2.99

$

Usually ships in 3-6 days

0

22

Toro 130-2317

GEAR-OUTPUT, 32 TOOTH

$33.99

$

Usually ships in 3-6 days

0

23

Toro 133-2614

KEY

$13.99

$

In Stock, only 2 left!

0

24

Toro 133-2612

SHAFT-OUTPUT, LONG

$94.99

$

In Stock, only 4 left!

0

25

Toro 133-2617

SPACER-LONG

$15.99

$

Usually ships in 3-6 days

0

26

Toro 133-2616

PIN

$11.99

$

Usually ships in 3-6 days

0

27

Toro 133-2613

HUB-GEAR, OUTPUT

$78.99

$

In Stock, only 2 left!

0

28

Toro 130-2306

SHAFT-SHIFT

$74.99

$

Usually ships in 3-6 days

0

29

Toro 130-2304

RING-RETAINING

$28.99

$

Usually ships in 3-6 days

0

30

Toro 130-2319

BEARING-BALL

$13.99

$

Usually ships in 3-6 days

0

31

Toro 130-2314

GEAR-INTERMEDIATE, 14 TOOTH

$19.99

$

Usually ships in 3-6 days

0

32

Toro 130-2313

GEAR-INTERMEDIATE, 15 TOOTH

$22.99

$

Usually ships in 3-6 days

0

33

Toro 130-2312

GEAR-INTERMEDIATE, 17 TOOTH

$25.99

$

Usually ships in 3-6 days

0

34

Toro 130-2307

SHAFT-INTERMEDIATE

$70.99

$

Usually ships in 3-6 days

0

35

Toro 130-2303

NUT-SHAFT, INPUT

$2.99

$

Usually ships in 3-6 days

0

36

Toro 130-2310

GEAR-BEVEL, 12 TOOTH

$21.99

$

Usually ships in 3-6 days

0

37

Toro 130-2324

SEAL

$10.99

$

Usually ships in 3-6 days

0

38

Toro 130-2300

SHAFT-INPUT

$90.99

$

Usually ships in 3-6 days

0

39

Toro 130-9708

BEARING-BALL

$13.99

$

In Stock, only 3 left!

0

40

Toro 133-2618

SPACER-SHORT

$12.99

$

Usually ships in 3-6 days

0
