22298 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Engine Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

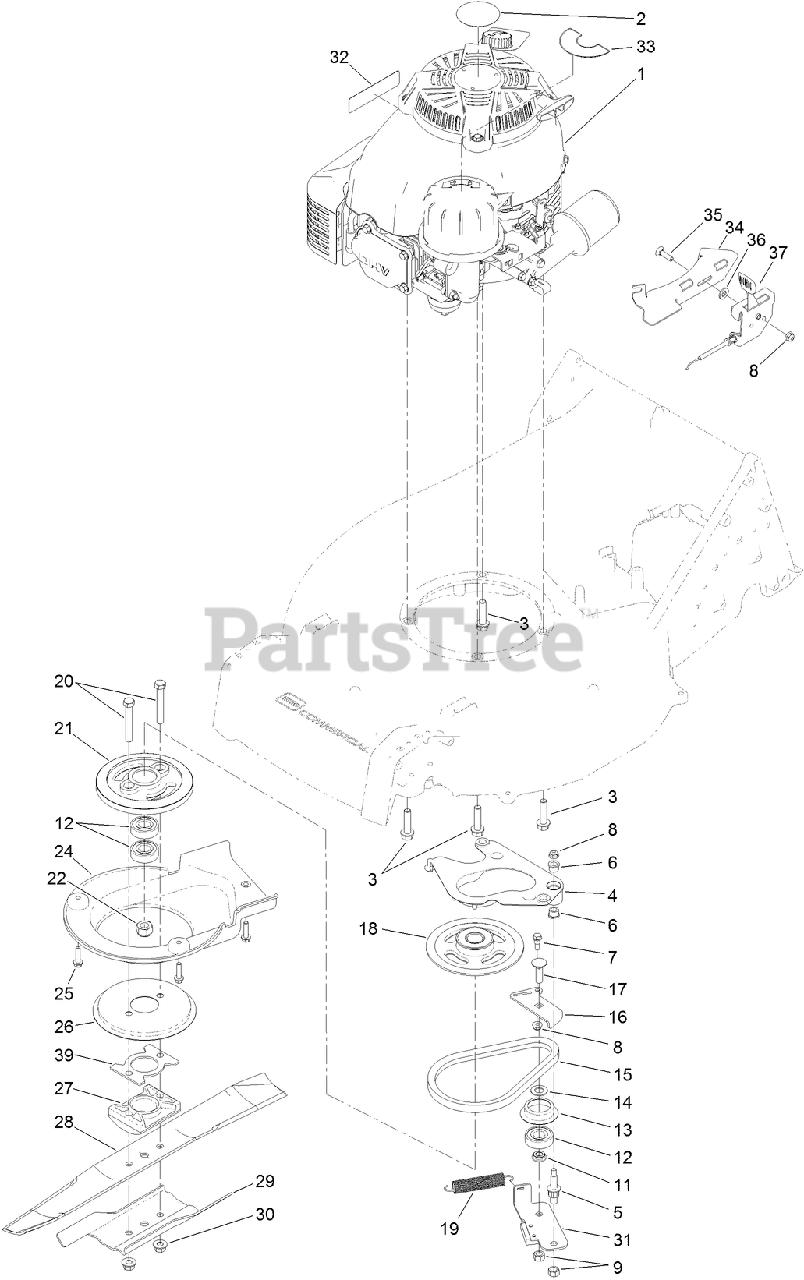

Engine Assembly Parts Diagram

  • Title

1

Toro 121-1410

ENGINE-KAWASAKI, FJ180V

$1568.99

$

Usually ships in 3-6 days

0

2

Toro 110-0520

DECAL

$37.99

$

Usually ships in 3-6 days

0

3

Toro 125-1073

SCREW-HWH

$3.99

$

In Stock, only 2 left!

0

4

Toro 130-2375

PLATE-ANCHOR

$53.99

$

In Stock, Qty 11

0

5

Toro 107-0759

BOLT-SHOULDER

$11.99

$

In Stock, Qty 17

0

6

Toro 130-2377

BUSHING-FLANGE

$2.49

$

In Stock, Qty 20+

0

7

Toro 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

11

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 9

0

12

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

13

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.99

$

In Stock, Qty 20+

0

14

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

15

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$34.99

$

In Stock, Qty 20+

0

16

Toro 125-8446

PLATE-GUIDE, BBC

$10.99

$

In Stock, only 4 left!

0

17

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

18

Toro 117-5970

PULLEY

$41.99

$

In Stock, only 3 left!

0

19

Toro 108-3792

SPRING-TENSION, BRAKE

$12.99

$

In Stock, Qty 17

0

20

Toro 3211-42

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

21

Toro 107-0754

See Supercession: 126-8108
(Superseded to 126-8108)

$62.99

$

Usually ships in 3-6 days

0

22

Toro 108-9342

NUT-HEX

$5.99

$

In Stock, Qty 13

0

24

Toro 125-1006

COVER

$19.99

$

In Stock, only 2 left!

0

25

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

26

Toro 108-3787

DISC
(Superseded to 138-3225)

$13.99

$

In Stock, only 4 left!

0

27

Toro 107-7487

SUPPORT-BLADE

$26.99

$

In Stock, only 2 left!

0

28

Toro 108-3762-03

See Supercession: 133-8183-03
(Superseded to 108-3762-S)

$33.99

$

In Stock, Qty 20+

0

29

Toro 125-1069-03

ACCELERATOR-BLADE

$18.99

$

In Stock, Qty 8

0

30

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

31

Toro 125-1063

PLATE-BRAKE

$26.99

$

In Stock, Qty 19

0

32

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

33

Toro 114-3415

DECAL

$8.49

$

Usually ships in 3-6 days

0

34

Toro 116-2220-03

BRACKET-MOUNT, THROTTLE

$36.99

$

Usually ships in 3-6 days

0

35

Toro 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 116-2248

THROTTLE

$73.99

$

In Stock, only 4 left!

0

39

Toro 130-6405-03

SPACER-DRIVER, BLADE

$12.99

$

Usually ships in 3-6 days
