22298 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Handle Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

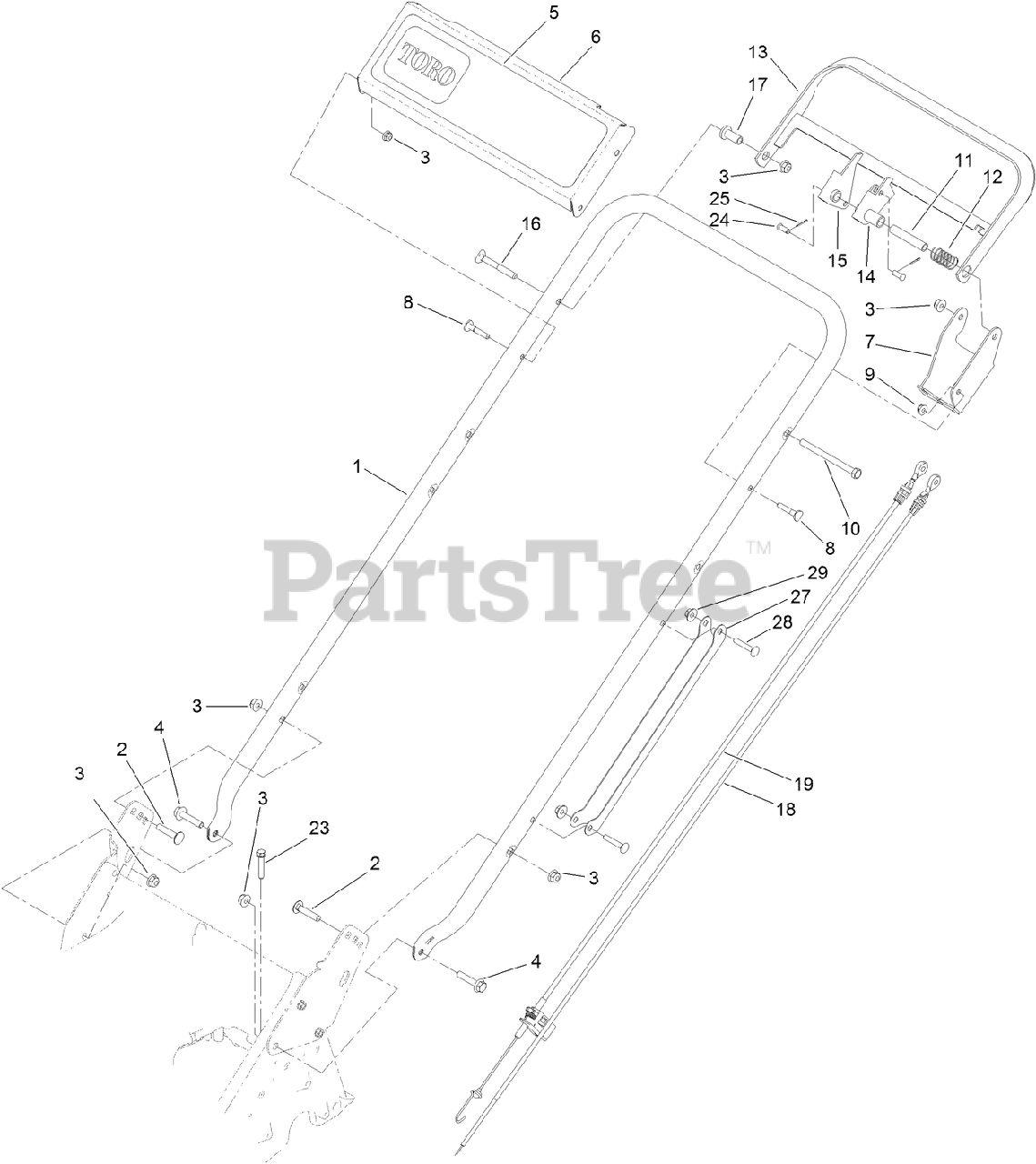

Handle Assembly Parts Diagram

  • Title

1

Toro 125-1016-03

See Supercession: 136-5861-03
(Superseded to 136-5861-03)

$125.99

$

In Stock, only 2 left!

0

2

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 6

0

5

Toro 125-8421

DECAL-TORO, COMMERCIAL

$15.99

$

In Stock, only 4 left!

0

6

Toro 125-8350-01

PANEL-CONTROL

$42.99

$

Usually ships in 3-6 days

0

7

Toro 125-8358-03

BRACKET-CONTROL

$93.99

$

Usually ships in 3-6 days

0

8

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 7

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 322-19

SCREW-HH

$7.49

$

In Stock, only 2 left!

0

11

Toro 125-8424

SPACER

$

$

Not available

12

Toro 85-6750

SPRING-CONTROL

$11.99

$

Usually ships in 3-6 days

0

13

Toro 125-8357-03

BAR-CONTROL

$70.99

$

Usually ships in 3-6 days

0

14

Toro 125-8352

LEVER-CONTROL

$

$

Not available

15

Toro 125-8354

LEVER-TRACTION

$42.99

$

Usually ships in 3-6 days

0

16

Toro 125-8408

SCREW-HANDLE

$2.99

$

Usually ships in 3-6 days

0

17

Toro 125-8359

SPACER-FLANGE

$4.99

$

Usually ships in 3-6 days

0

18

Toro 125-8362

See Supercession: 130-9702
(Superseded to 130-9702)

$43.99

$

In Stock, Qty 5

0

19

Toro 125-8363

See Supercession: 130-9703
(Superseded to 130-9703)

$64.99

$

In Stock, Qty 8

0

23

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

24

Toro 84-9040

PIN-CABLE

$13.99

$

Usually ships in 3-6 days

0

25

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

27

Toro 127-6897-03

GUARD-CABLE, HANDLE

$10.99

$

Usually ships in 3-6 days

0

28

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 8

0

29

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 17

0
