22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Engine Mounting Assembly Parts Diagram

Dingo Compact Utility Loader

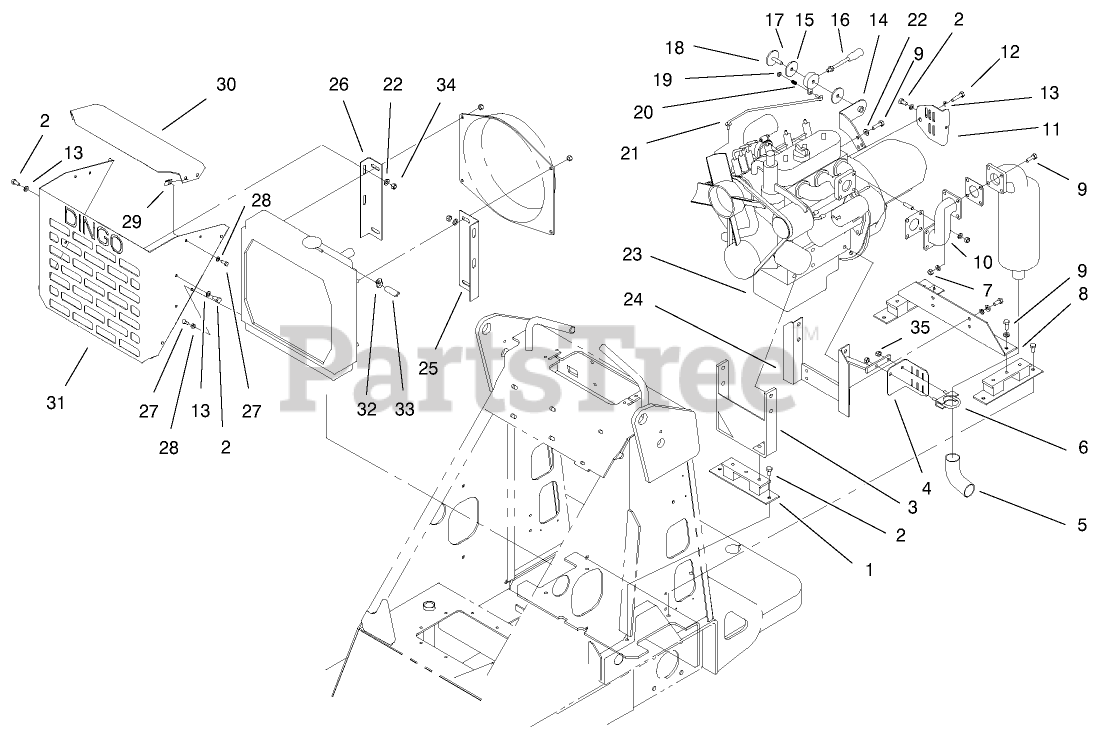

Engine Mounting Assembly Parts Diagram

  • Title

1

Toro 100-2108

DISCONTINUED

$

$

Not available

2

Toro 48-7700

See Supercession: 33114-016
(Superseded to 33114-016)

$0.99

$

In Stock, Qty 20+

0

3

Toro 100-2109

MOUNT-ENGINE, FRONT

$346.99

$

Usually ships in 3-6 days

0

4

Toro 100-2113

EXHAUST HEAT SHIELD, LOWER

$

$

Not available

5

Toro 100-2102

TAILPIPE-MUFFLER

$

$

Not available

6

Toro 100-2140

U-BOLT

$

$

Not available

7

Toro 48-7930

See Supercession: 68-9400
(Superseded to 68-9400)

$2.99

$

In Stock, only 1 left!

0

8

Toro 100-2111

DISCONTINUED

$

$

Not available

9

Toro 48-7710

See Supercession: 33114-020
(Superseded to 33114-020)

$0.99

$

In Stock, Qty 10

0

10

Toro 100-2105

DISCONTINUED

$

$

Not available

11

Toro 100-2114

DISCONTINUED

$

$

Not available

12

Toro 48-7740

See Supercession: 33114-035
(Superseded to 33114-035)

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 100-2121

BRACKET-THROTTLE

$

$

Not available

15

Toro 100-2123

CONTROL-THROTTLE

$

$

Not available

16

Toro 98-4722

LEVER - VALVE

$

$

Not available

17

Toro 100-2122

SPACER-THROTTLE

$

$

Not available

18

Toro 100-2124

RETAINER-THROTTLE

$

$

Not available

19

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

20

Toro 100-2127

SPRING-THROTTLE

$

$

Not available

21

Toro 100-2126

LINKAGE-THROTTLE

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 100-2150

See Supercession: 131-5700
(Superseded to 138-6901)

$11918.99

$

Usually ships in 3-6 days

0

24

Toro 100-2110

MOUNT-ENGINE, REAR

$380.99

$

Usually ships in 3-6 days

0

25

Toro 100-2116

DISCONTINUED

$

$

Not available

26

Toro 100-2142

DISCONTINUED

$

$

Not available

27

Toro 48-7620

See Supercession: 33113-016
(Superseded to 33113-016)

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 100-2144

CLIP-M6-1.0

$

$

Not available

30

Toro 100-2115

DISCONTINUED

$

$

Not available

31

Toro 100-2136

SHROUD-RADIATOR

$668.99

$

Usually ships in 3-6 days

0

32

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

33

Toro 63-7621

See Supercession: 110-3257
(Superseded to 110-3257)

$20.99

$

Usually ships in 3-6 days

0

34

Toro 33024-00

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

35

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
