22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

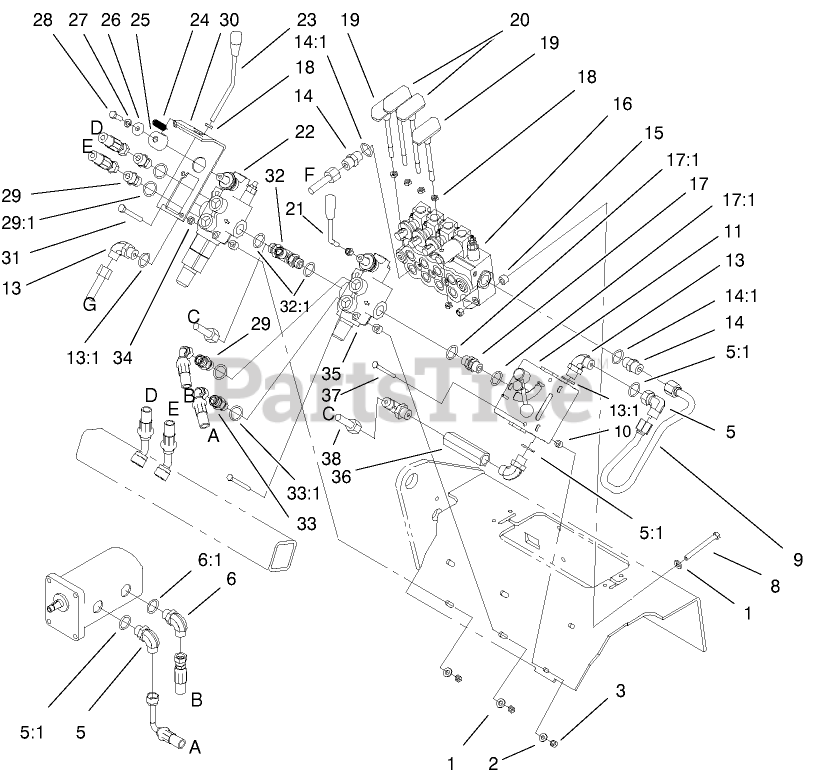

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 99-3291

DISCONTINUED

$

$

Not available

5:1

Toro 99-5078

O-RING

$1.99

$

Usually ships in 3-6 days

0

6

Toro 99-5072

DISCONTINUED

$

$

Not available

6:1

Toro 99-5075

O-RING

$

$

Not available

8

Toro 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 99-5059

TUBE-HYD

$163.99

$

Usually ships in 3-6 days

0

10

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

11

Toro 99-3277

DISCONTINUED

$

$

Not available

11:1

Toro 99-3298

DISCONTINUED

Note: Not illustrated

$

$

Not available

11:2

Toro 98-9098

HANDLE HARDWARE KIT

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

13

Toro 99-5079

ADAPTOR - 90 DEG

$

$

Not available

13:1

Toro 99-5078

O-RING

$1.99

$

Usually ships in 3-6 days

0

14

Toro 99-5081

DISCONTINUED

$

$

Not available

14:1

Toro 99-5078

O-RING

$1.99

$

Usually ships in 3-6 days

0

15

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 98-2658

HYD. VALVE SERVICE ASM

$

$

Not available

17

Toro 99-5080

DISCONTINUED

$

$

Not available

17:1

Toro 99-5078

O-RING

$1.99

$

Usually ships in 3-6 days

0

18

Toro 42-9580

See Supercession: 33014-00
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-4671

CYLINDER HANDLE ASM

$32.99

$

Usually ships in 3-6 days

0

19

Toro 98-4722

LEVER - VALVE

Note: Not illustrated

$

$

Not available

20

Toro 98-4670

DISCONTINUED

$

$

Not available

20

Toro 98-4723

LEVER - VALVE

Note: Not illustrated

$

$

Not available

21

Toro 98-4729

LEVER-VALVE

$81.99

$

Usually ships in 3-6 days

0

22

Toro 99-3274

DISCONTINUED

$

$

Not available

22:1

Toro 98-4721

See Supercession: 99-4390
(Superseded to 99-4390)

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

23

Toro 100-2147

LEVER-AUX.

$

$

Not available

24

Toro 100-2148

SPRING-AUX.

$

$

Not available

25

Toro 100-2145

MOUNT-AUX. LEVER

$

$

Not available

26

Toro 100-2146

CAP-MOUNT, AUX.

$

$

Not available

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

29

Toro 99-5082

DISCONTINUED

$

$

Not available

29:1

Toro 99-5075

O-RING

$

$

Not available

30

Toro 99-3098

BRACKET-AUX.

$

$

Not available

31

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

32

Toro 99-5090

ADAPTER-TEE ADJUSTABLE

$

$

Not available

32:1

Toro 99-5078

O-RING

$1.99

$

Usually ships in 3-6 days

0

33

Toro 99-5073

DISCONTINUED

$

$

Not available

33:1

Toro 99-5075

O-RING

$

$

Not available

34

Toro 99-3099

Spacer

$

$

Currently unavailable

35

Toro 99-3276

DISCONTINUED

$

$

Not available

35:1

Toro 98-4721

See Supercession: 99-4390
(Superseded to 99-4390)

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

36

Toro 99-5077

VALVE-INLINE CHECK

$

$

Not available

37

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

38

Toro 99-5058

TUBE-HYD

$

$

Not available
