22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Hydraulic Valve Assembly No. 98-2658 Parts Diagram

Dingo Compact Utility Loader

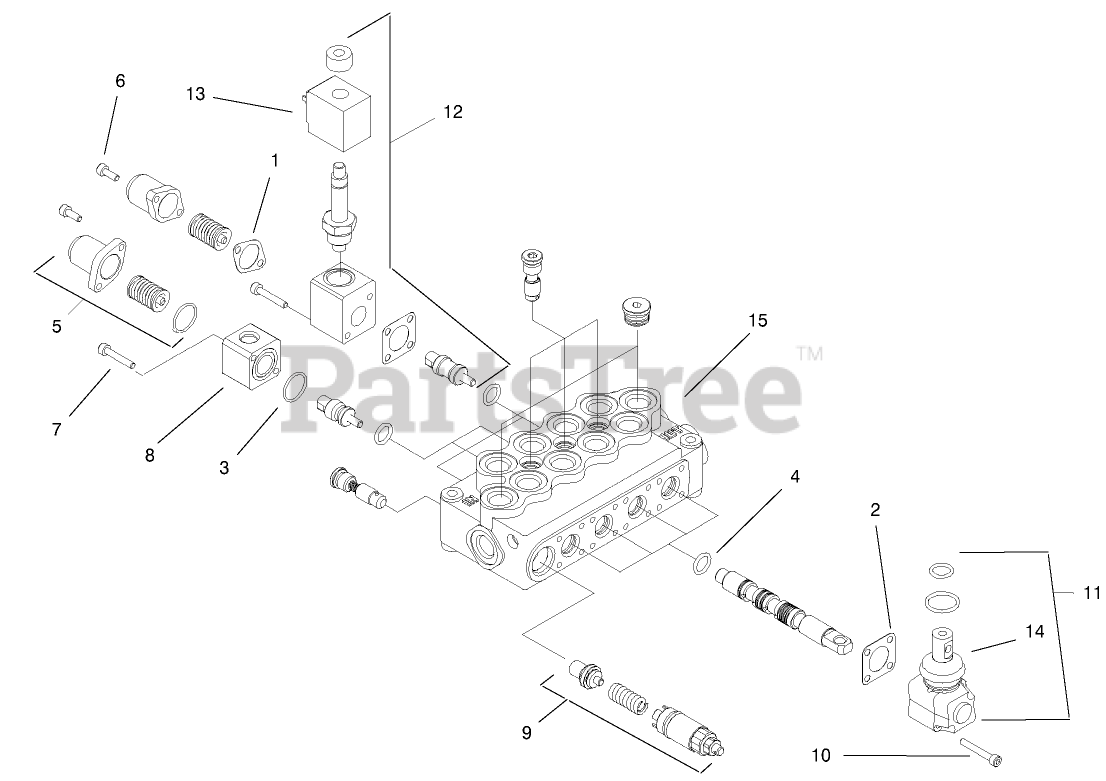

Hydraulic Valve Assembly No. 98-2658 Parts Diagram

  • Title

1

Toro 99-3074

GASKET

$23.99

$

Usually ships in 3-6 days

0

2

Toro 99-3075

GASKET

$19.99

$

Usually ships in 3-6 days

0

5

Toro 100-8800

STANDARD SPRING KIT

$86.99

$

Usually ships in 3-6 days

0

Toro 100-8801

HIGH FORCE SPRING KIT

Note: Not illustrated

$195.99

$

Usually ships in 3-6 days

0

6

Toro 100-8802

SCREW-CAP, END

$14.99

$

Usually ships in 3-6 days

0

7

Toro 100-8803

SCREW

$14.99

$

Usually ships in 3-6 days

0

8

Toro 100-8804

BLOCK-MOUNT, SWITCH

$555.99

$

Usually ships in 3-6 days

0

9

Toro 100-8805

VALVE-RELIEF

$572.99

$

Usually ships in 3-6 days

0

10

Toro 100-8806

SCREW

$14.99

$

Usually ships in 3-6 days

0

11

Toro 100-8807

OPERATOR ASM

$

$

Not available

12

Toro 100-8808

SPOOL LOCK ASM

$

$

Not available

13

Toro 100-8809

COIL WITH CONNECTOR

$

$

Not available

14

Toro 100-8829

BOOT

$50.99

$

Usually ships in 3-6 days

0

15

Toro 99-3275

VALVE - HYD, 4-SPOOL

$6004.99

$

Usually ships in 3-6 days

0

Toro 99-4390

SEAL KIT

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

Toro 72-4310

SWITCH-BALL

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0

Toro 98-2657

ADAPTER-SPOOL LOCK

Note: Not illustrated

$

$

Not available
