22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Engine Assembly Parts Diagram

Dingo Compact Utility Loader

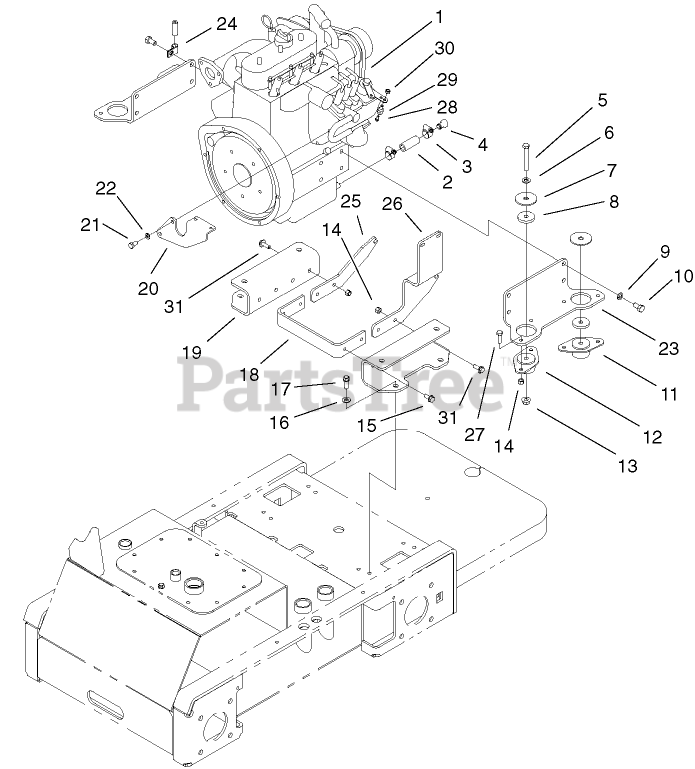

Engine Assembly Parts Diagram

  • Title

1

Toro 100-2200

Engine-Kubota

$

$

Currently unavailable

2

Toro 56-2230

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

3

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

4

Toro 99-1445

PLUG-OIL

$55.99

$

Usually ships in 3-6 days

0

5

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 87-5100

WASHER-SNUBBING

$4.99

$

Usually ships in 3-6 days

0

8

Toro 98-4596

WASHER-MOUNT, ENGINE

$33.99

$

Usually ships in 3-6 days

0

9

Toro 42-9600

See Supercession: 48-9590
(Superseded to 48-9590)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 99-5130

BOLT

$8.99

$

Usually ships in 3-6 days

0

11

Toro 83-1030

See Supercession: 121-9076
(Superseded to 121-9076)

$50.99

$

In Stock, Qty 10

0

12

Toro 93-5265

MOUNT-ENGINE

$160.99

$

Usually ships in 3-6 days

0

13

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-80

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

17

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

18

Toro 99-1429-01

BAR-SUPPORT, MOUNT

$

$

Not available

19

Toro 99-1428-01

BAR-BRACE, MOUNT

$

$

Not available

20

Toro 99-5007-01

See Supercession: 105-4054-01
(Superseded to 105-4054-01)

$38.99

$

Usually ships in 3-6 days

0

21

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 99-1426-01

MOUNT-ENGINE

$

$

Not available

24

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

25

Toro 99-3081-03

SUPPORT-COVER

$

$

Not available

26

Toro 99-3082-03

SUPPORT-COVER

$

$

Not available

27

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 25-8640

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

29

Toro 93-0021

SWIVEL-CABLE, THROTTLE

$52.99

$

Usually ships in 3-6 days

0

30

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 16

0

31

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0
