22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000500) (2000) Fuel Tank And Air Filter Assembly Parts Diagram

Dingo Compact Utility Loader

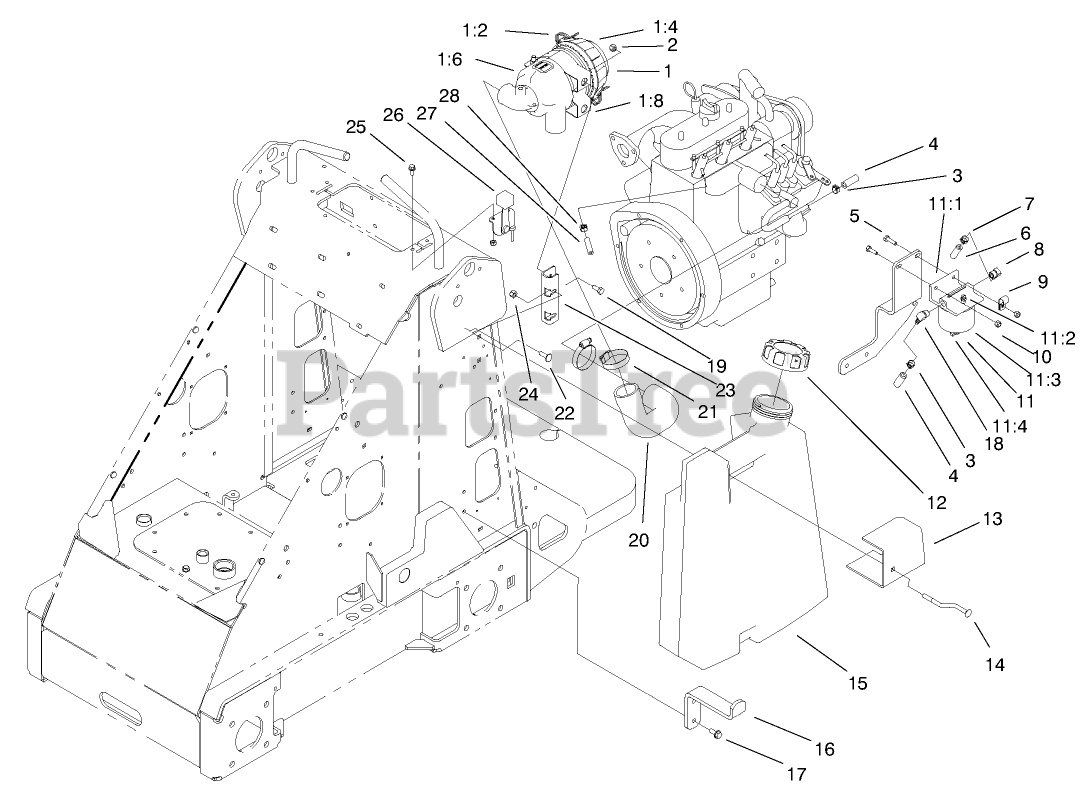

Fuel Tank And Air Filter Assembly Parts Diagram

  • Title

1

Toro 99-3160

AIR CLEANER ASM

$358.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-3173

ELEMENT-FILTER, AIR

Note: Not illustrated

$71.99

$

In Stock, only 2 left!

0

1:2

Toro 99-3174

CLIP-CLEANER, AIR

$19.99

$

In Stock, Qty 5

0

1:3

Toro 99-3175

VALVE-EJECTOR, DUST

Note: Not illustrated

$40.99

$

Usually ships in 3-6 days

0

1:4

Toro 99-3176

COVER

$

$

Not available

1:5

Toro 99-3183

See Supercession: 99-3160
(Superseded to 99-3160)

Note: Not illustrated

$358.99

$

Usually ships in 3-6 days

0

1:6

Toro 99-3184

See Supercession: 117-1727
(Superseded to 117-1727)

$185.99

$

Usually ships in 3-6 days

0

1:7

Toro 99-3198

FILTER-SAFETY

Note: Not illustrated

$71.99

$

Usually ships in 3-6 days

0

1:8

Toro 99-3197

MOUNTING BRACKET ASM

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

4

Toro 63-7627

See Supercession: 110-4113
(Superseded to 110-4113)

$12.99

$

Usually ships in 3-6 days

0

5

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

6

Toro 99-1438

See Supercession: 94-1349
(Superseded to 94-1349)

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

8

Toro 304-96

ELBOW

$41.99

$

Usually ships in 3-6 days

0

9

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 63-7650

SEPARATOR-FILTER / WATER

$207.99

$

Usually ships in 3-6 days

0

11:1

Toro 63-8280

See Supercession: 63-7650
(Superseded to 63-7650)

$207.99

$

Usually ships in 3-6 days

0

11:2

Toro 63-8290

VENT-AIR

$23.99

$

Usually ships in 3-6 days

0

11:3

Toro 63-8300

ELEMENT-SPIN ON

$34.99

$

In Stock, Qty 10

0

11:4

Toro 63-8310

VALVE-DRAIN

$15.99

$

Usually ships in 3-6 days

0

12

Toro 98-2710

DIESEL FUEL CAP ASM

$

$

Not available

13

Toro 99-1444-03

PLATE-MOUNT, LEFT

$75.99

$

Usually ships in 3-6 days

0

14

Toro 98-4657

BOLT-MOUNT

$40.99

$

Usually ships in 3-6 days

0

15

Toro 99-1425

DISCONTINUED
(Superseded to 105-4050)

$

$

Not available

15:3

Toro 100-1596

See Supercession: 104-5228
(Superseded to 104-5228)

Note: Not illustrated

$20.99

$

In Stock, only 2 left!

0

15:4

Toro 104048

VALVE-FUEL

Note: Not illustrated

$41.99

$

In Stock, Qty 14

0

16

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$

$

Not available

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 353-781

FITTING-HYD, 90

$29.99

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 99-5041

HOSE-CLEANER, AIR

$111.99

$

Usually ships in 3-6 days

0

21

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 99-3080-03

MOUNT-CLEANER, AIR

$81.99

$

Usually ships in 3-6 days

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 8

0

26

Toro 99-1422

CONTROL-THROTTLE

$169.99

$

Usually ships in 3-6 days

0

27

Toro 76-4420

HOSE-LINE, FUEL

$

$

Not available

28

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 6

0
