22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) Camshaft Assembly Parts Diagram

Dingo Compact Utility Loader

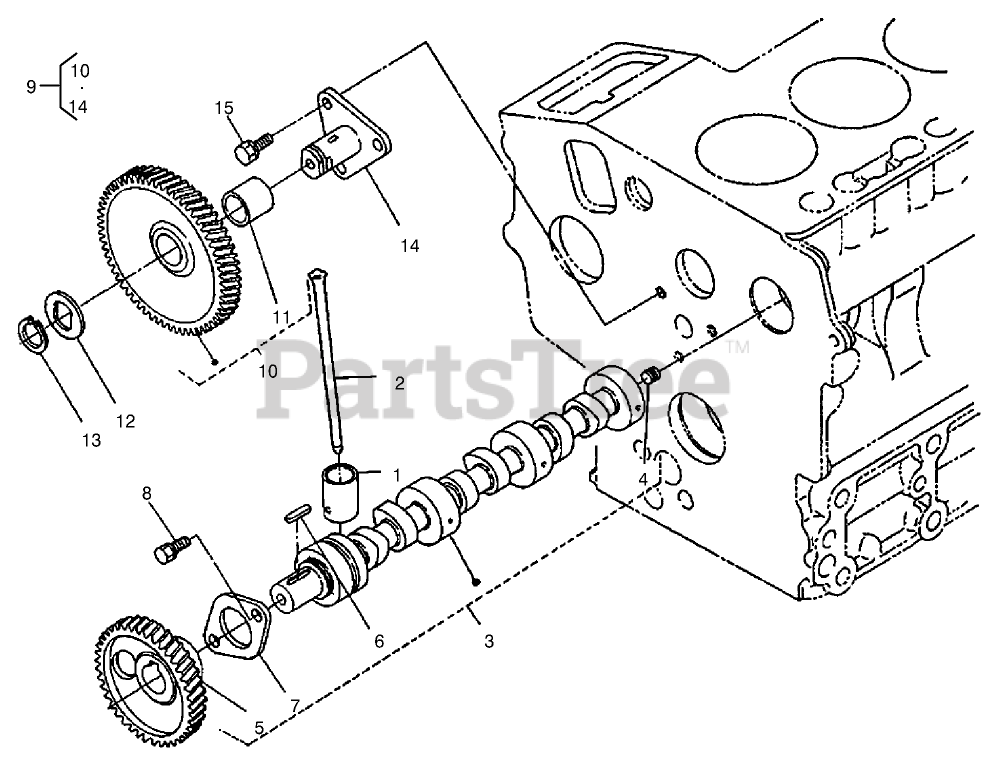

Camshaft Assembly Parts Diagram

  • Title

1

Toro 100-1990

See Supercession: 110-3727
(Superseded to 110-3727)

$61.99

$

Usually ships in 3-6 days

0

2

Toro 100-1989

ROD-PUSH

$28.99

$

Usually ships in 3-6 days

0

3

Toro 100-2162

CAMSHAFT ASM

$

$

Not available

4

Toro 98-7449

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

5

Toro 100-2163

GEAR-CAM

$147.99

$

Usually ships in 3-6 days

0

6

Toro 98-9378

KEY-FEATHER

$1.99

$

Usually ships in 3-6 days

0

7

Toro 100-1887

STOPPER-CAMSHAFT

$4.99

$

Usually ships in 3-6 days

0

8

Toro 98-9350

BOLT

$1.49

$

Usually ships in 3-6 days

0

9

Toro 100-2240

IDLE GEAR ASM

$587.99

$

Usually ships in 3-6 days

0

10

Toro 100-1966

See Supercession: 121-2421
(Superseded to 121-2421)

$319.99

$

Usually ships in 3-6 days

0

11

Toro 100-1968

See Supercession: 121-2422
(Superseded to 121-2422)

$20.99

$

Usually ships in 3-6 days

0

12

Toro 100-1970

COLLAR-GEAR, IDLE

$16.99

$

Usually ships in 3-6 days

0

13

Toro 100-1969

RING-SNAP

$4.49

$

Usually ships in 3-6 days

0

14

Toro 100-1967

SHAFT-GEAR, IDLE

$51.99

$

Usually ships in 3-6 days

0

15

Toro 98-9351

BOLT

$1.49

$

Usually ships in 3-6 days

0
