22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) Hydraulic Cylinder Assembly Parts Diagram

Dingo Compact Utility Loader

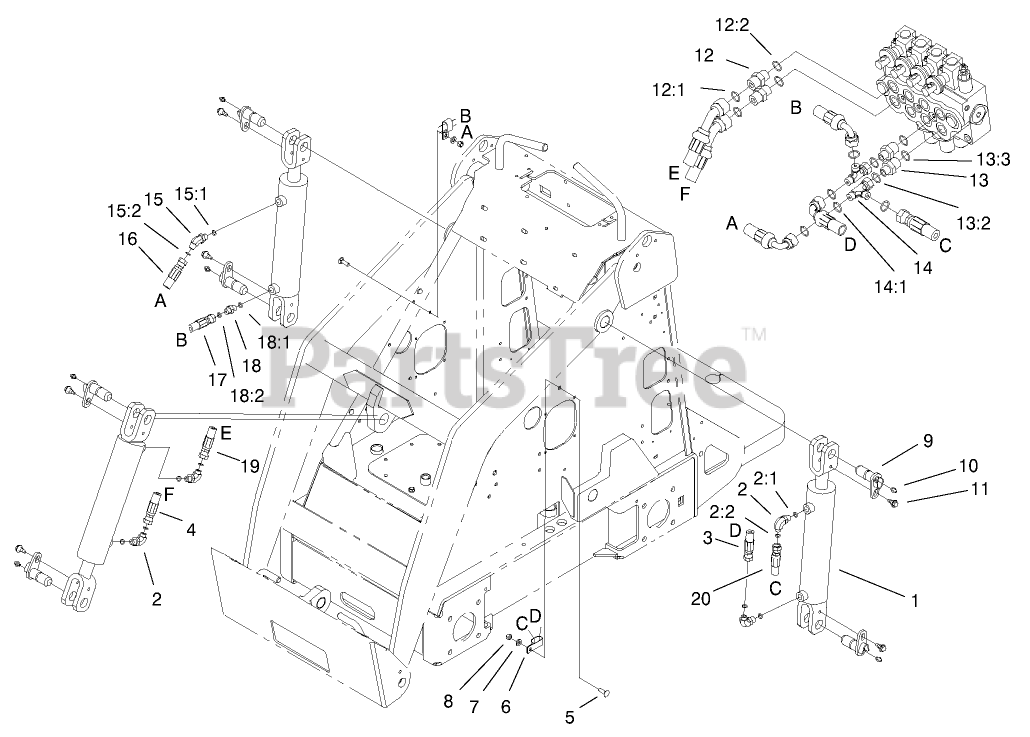

Hydraulic Cylinder Assembly Parts Diagram

  • Title

1

Toro 100-4163

CYLINDER KIT

$2189.99

$

Usually ships in 3-6 days

0

2

Toro 340-82

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 2 left!

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

2:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

3

Toro 98-4748

HYD HOSE ASM

$191.99

$

Usually ships in 3-6 days

0

4

Toro 98-4726

HOSE-HYD

$291.99

$

Usually ships in 3-6 days

0

5

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 99-1414

See Supercession: 112-2609
(Superseded to 112-2609)

$121.99

$

In Stock, only 2 left!

0

10

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

11

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

12

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

12:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

13

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

13:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

13:3

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

14

Toro 340-151

FITTING-HYD

$104.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-75

See Supercession: 237-21
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

15

Toro 340-137

FITTING

$44.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

15:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

16

Toro 98-4725

HOSE-HYD

$198.99

$

Usually ships in 3-6 days

0

17

Toro 100-1731

HOSE-HYD, RIGHT

$202.99

$

Usually ships in 3-6 days

0

18

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-35

See Supercession: 237-21
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

18:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

19

Toro 98-4727

HOSE-HYD

$242.99

$

Usually ships in 3-6 days

0

20

Toro 99-3109

DISCONTINUED

$

$

Not available
