22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) Hydraulic Motor Assembly Parts Diagram

Dingo Compact Utility Loader

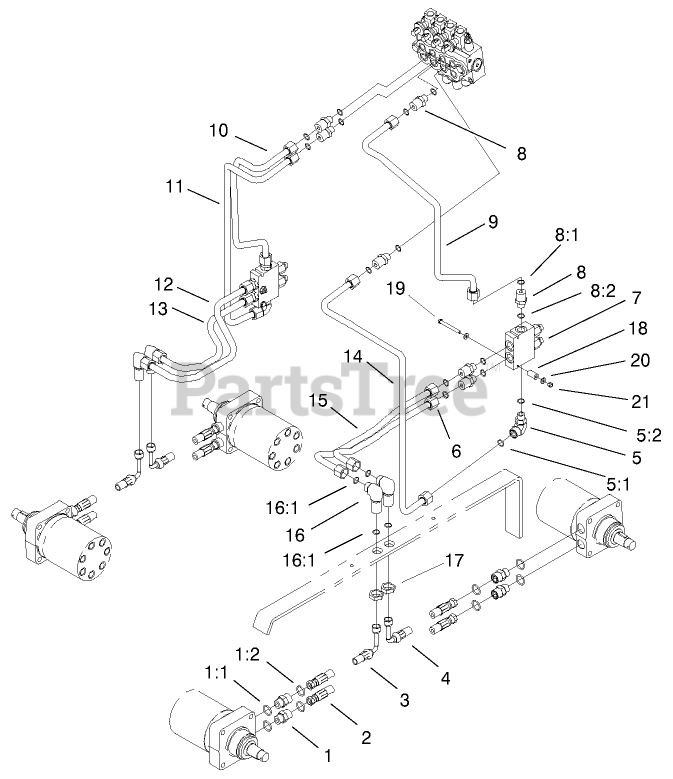

Hydraulic Motor Assembly Parts Diagram

  • Title

1

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

1:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

1:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

2

Toro 99-3012

HOSE-HYD

$325.99

$

Usually ships in 3-6 days

0

3

Toro 99-3010

HOSE-HYD

$412.99

$

Usually ships in 3-6 days

0

4

Toro 99-3011

HOSE-HYD

$412.99

$

Usually ships in 3-6 days

0

5

Toro 340-153

FITTING-ELBOW, 90 DEG

$103.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5:2

Toro 237-151

O-RING

$2.49

$

In Stock, only 2 left!

0

6

Toro 99-3022

TUBE-HYD

$100.99

$

Usually ships in 3-6 days

0

7

Toro 99-3040

HYD COUNTERBALANCE VALVE ASM

$2010.99

$

Usually ships in 3-6 days

0

7:1

Toro 98-2712

See Supercession: 105-4099
(Superseded to 105-4099)

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0

7:2

Toro 98-3271

Valve-Cartridge

Note: Not illustrated

$

$

Currently unavailable

7:3

Toro 100-8864

MANIFOLD ASM

Note: Not illustrated

$1592.99

$

Usually ships in 3-6 days

0

7:4

Toro 100-8865

NEEDLE VALVE ASM

Note: Not illustrated

$349.99

$

Usually ships in 3-6 days

0

8

Toro 340-155

FITTING-STRAIGHT

$33.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

8:2

Toro 237-151

O-RING

$2.49

$

In Stock, only 2 left!

0

9

Toro 99-3027

HYD TUBE ASM

$

$

Not available

10

Toro 99-3024

DISCONTINUED

$

$

Not available

11

Toro 99-3029

DISCONTINUED

$

$

Not available

12

Toro 99-3025

TUBE-HYD

$105.99

$

Usually ships in 3-6 days

0

13

Toro 99-3028

TUBE-HYD

$99.99

$

Usually ships in 3-6 days

0

14

Toro 99-3023

HYD TUBE ASM

$

$

Not available

15

Toro 99-3026

TUBE-HYD

$105.99

$

Usually ships in 3-6 days

0

16

Toro 340-72

FITTING-BULKHEAD, 90 DEG

$54.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

17

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

18

Toro 99-3057

SPACER-VALVE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 321-23

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
