22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) Hydraulic Valve Assembly Parts Diagram

Dingo Compact Utility Loader

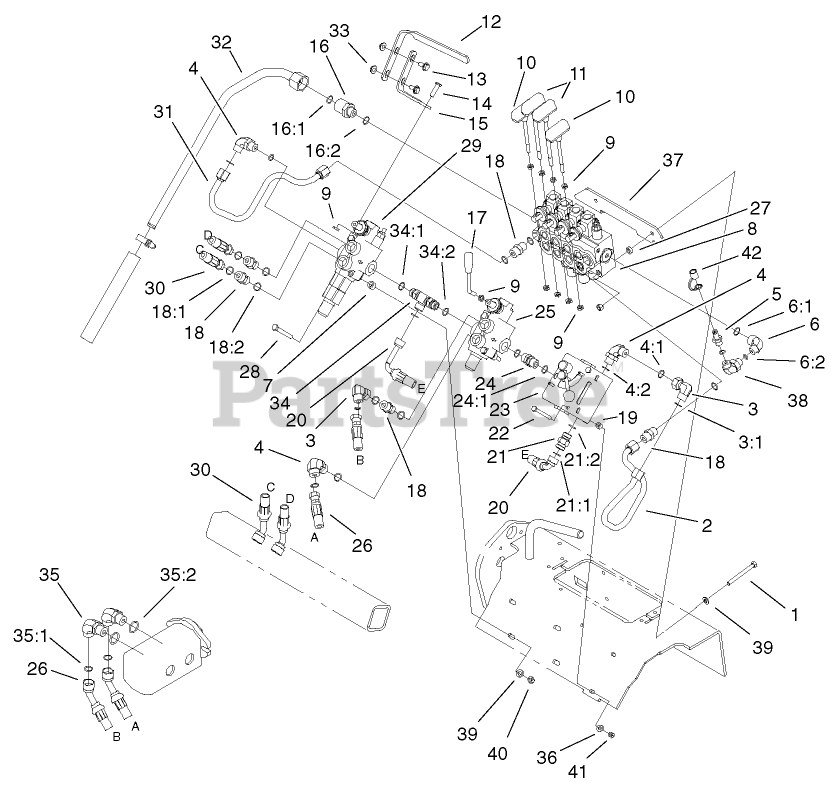

Hydraulic Valve Assembly Parts Diagram

  • Title

1

Toro 322-20

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

2

Toro 99-3030

DISCONTINUED

$

$

Not available

3

Toro 94-6031

FITTING-HYD

$80.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

4

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

4:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Toro 86-5480

NIPPLE-TEST

$77.99

$

Usually ships in 3-6 days

0

6

Toro 340-18

FITTING-HYD, 90 DEG

$46.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

6:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

7

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

8

Toro 99-3070

VALVE-HYD, 4-SPOOL

$

$

Not available

9

Toro 42-9580

See Supercession: 33014-00
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

10

Toro 98-4671

CYLINDER HANDLE ASM

$32.99

$

Usually ships in 3-6 days

0

11

Toro 98-4670

DISCONTINUED

$

$

Not available

12

Toro 98-9090

GRIP-CONTROL

$

$

Not available

13

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

15

Toro 99-1376

MOUNT-CONTROL

$

$

Not available

16

Toro 98-9921

FITTING-STRAIGHT

$57.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-145

See Supercession: 237-58
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

16:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

17

Toro 98-4729

LEVER-VALVE

$81.99

$

Usually ships in 3-6 days

0

18

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

18:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

18:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

19

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

20

Toro 100-2245

HOSE-HYD

$236.99

$

Usually ships in 3-6 days

0

21

Toro 98-4735

VALVE-CHECK, HYD

$290.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

21:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

22

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

23

Toro 99-3073

See Supercession: 104-4221
(Superseded to 104-4221)

$1026.99

$

Usually ships in 3-6 days

0

24

Toro 95-3209

FITTING-THREAD, STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

25

Toro 99-3072

VALVE-SELECTOR, HYD

$1120.99

$

Usually ships in 3-6 days

0

26

Toro 100-1730

HOSE-PUMP, HYD

$286.99

$

Usually ships in 3-6 days

0

27

Toro 99-3078

SPACER

$

$

Not available

28

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Toro 99-3077

VALVE-HYD, AUXILIARY

$2067.99

$

Usually ships in 3-6 days

0

30

Toro 100-8817

HOSE-HYD

$446.99

$

Usually ships in 3-6 days

0

31

Toro 98-4724

HYD TUBE ASM

$123.99

$

In Stock, only 1 left!

0

32

Toro 99-3021

HYD TUBE ASM

$

$

Not available

33

Toro 32128-44

NUT

$3.49

$

Usually ships in 3-6 days

0

34

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$246.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

34:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

35

Toro 340-105

FITTING-ELBOW, 90 DEG

$47.99

$

In Stock, only 2 left!

0

35:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

35:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 99-3079-03

See Supercession: 104-4222-03
(Superseded to 104-4222-03)

$276.99

$

Usually ships in 3-6 days

0

38

Toro 340-159

FITTING-HYD, 90 DEG

$73.99

$

Usually ships in 3-6 days

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

99

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

99

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0
