22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Electrical Components Assembly Parts Diagram

Dingo Compact Utility Loader

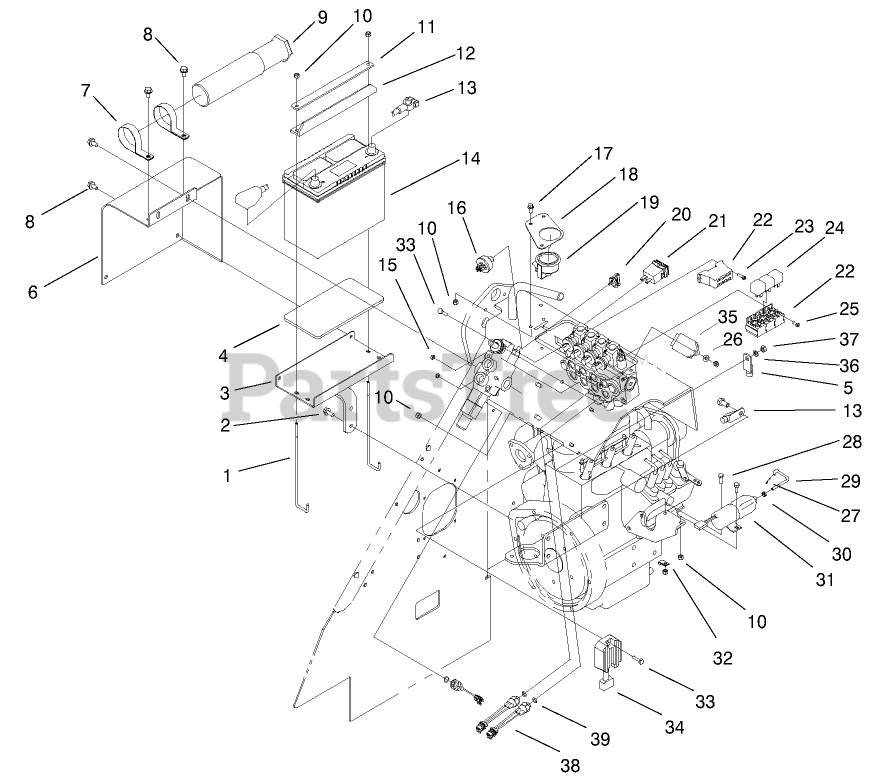

Electrical Components Assembly Parts Diagram

  • Title

1

Toro 99-5035

RETAINER-BATTERY

$86.99

$

Usually ships in 3-6 days

0

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 99-5034-03

MOUNT-BATTERY ASM

$

$

Not available

4

Toro 99-5030

PAD-BATTERY

$52.99

$

Usually ships in 3-6 days

0

5

Toro 100-1708

CABLE-BATTERY, POSITIVE

$79.99

$

Usually ships in 3-6 days

0

6

Toro 100-1721-03

DISCONTINUED

$

$

Not available

7

Toro 2412-133

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

8

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

9

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 99-5008-01

RETAINER-BATTERY

$27.99

$

Usually ships in 3-6 days

0

12

Toro 99-5039

RETAINER-BATTERY

$109.99

$

Usually ships in 3-6 days

0

13

Toro 100-1709

CABLE-BATTERY, NEGATIVE

$75.99

$

Usually ships in 3-6 days

0

14

Toro 99-1441

BATTERY-DRY

$

$

Not available

15

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 5

0

16

Toro 111216

See Supercession: 103990
(Superseded to 103990)

$30.99

$

In Stock, Qty 9

0

17

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 8

0

18

Toro 100-1707-01

DISCONTINUED

$

$

Not available

19

Toro 100-1732

CLUSTER-LAMP

$

$

Not available

20

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

21

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

22

Toro 99-5134

HARNESS-WIRE, DINGO KUBOTA

$

$

Not available

23

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

24

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

25

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 99-1423

See Supercession: 105-6243
(Superseded to 105-6243)

$62.99

$

Usually ships in 3-6 days

0

30

Toro 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

31

Toro 99-5006

See Supercession: 131-0569
(Superseded to 131-0569)

$1425.99

$

Usually ships in 3-6 days

0

32

Toro 2412-31

CLAMP-BODEN

$2.49

$

Usually ships in 3-6 days

0

33

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

34

Toro 100-2057

REGULATOR ASM

$372.99

$

Usually ships in 3-6 days

0

35

Toro 98-7611

CONTROLLER-GLOW

$505.99

$

Usually ships in 3-6 days

0

36

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

37

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

38

Toro 72-4310

SWITCH-BALL

$112.99

$

Usually ships in 3-6 days

0

39

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0
