22304 (222) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

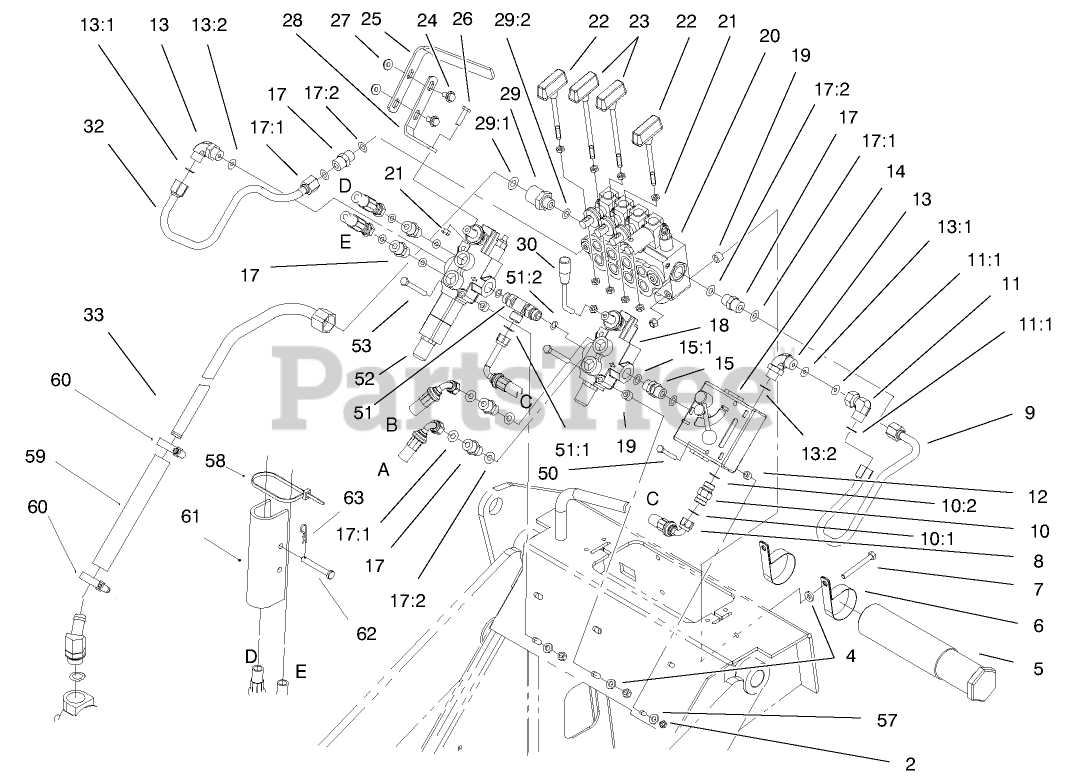

Hydraulic Assembly Parts Diagram

  • Title

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

6

Toro 2412-133

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

7

Toro 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

8

Toro 98-4744

HOSE ASM

$283.99

$

Usually ships in 3-6 days

0

9

Toro 98-9917

DISCONTINUED

$

$

Not available

10

Toro 98-4735

VALVE-CHECK, HYD

$290.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

10:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

11

Toro 94-6031

FITTING-HYD

$80.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

12

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

13

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

13:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

13:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

14

Toro 99-3073

See Supercession: 104-4221
(Superseded to 104-4221)

$1026.99

$

Usually ships in 3-6 days

0

14:1

Toro 98-9097

KIT-SEAL, VALVE

Note: Not illustrated

$

$

Not available

14:2

Toro 98-9098

HANDLE HARDWARE KIT

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

15

Toro 95-3209

FITTING-THREAD, STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

17

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

17:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

17:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

18

Toro 99-3072

VALVE-SELECTOR, HYD

$1120.99

$

Usually ships in 3-6 days

0

18:1

Toro 98-4721

See Supercession: 99-4390
(Superseded to 99-4390)

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

19

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

20

Toro 98-4732

See Supercession: 104-7422
(Superseded to 104-7422)

$

$

Not available

20:1

Toro 98-4720

DISCONTINUED

Note: Not illustrated

$

$

Not available

21

Toro 42-9580

See Supercession: 33014-00
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

22

Toro 98-4671

CYLINDER HANDLE ASM

$32.99

$

Usually ships in 3-6 days

0

23

Toro 98-4670

DISCONTINUED

$

$

Not available

24

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

25

Toro 98-9090

GRIP-CONTROL

$

$

Not available

26

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

27

Toro 32128-44

NUT

$3.49

$

Usually ships in 3-6 days

0

28

Toro 99-1376

MOUNT-CONTROL

$

$

Not available

29

Toro 98-9921

FITTING-STRAIGHT

$57.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-145

See Supercession: 237-58
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

29:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

30

Toro 98-4729

LEVER-VALVE

$81.99

$

Usually ships in 3-6 days

0

32

Toro 98-4724

HYD TUBE ASM

$123.99

$

In Stock, only 1 left!

0

33

Toro 99-3021

HYD TUBE ASM

$

$

Not available

50

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

51

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$246.99

$

Usually ships in 3-6 days

0

51:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

51:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

52

Toro 99-3077

VALVE-HYD, AUXILIARY

$2067.99

$

Usually ships in 3-6 days

0

52:1

Toro 98-4721

See Supercession: 99-4390
(Superseded to 99-4390)

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

53

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

57

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

58

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

59

Toro 100-9988

HOSE-HYD

$

$

Not available

60

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0
