22304 (222) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) Hydraulic Assembly (continued) Parts Diagram

Dingo Compact Utility Loader

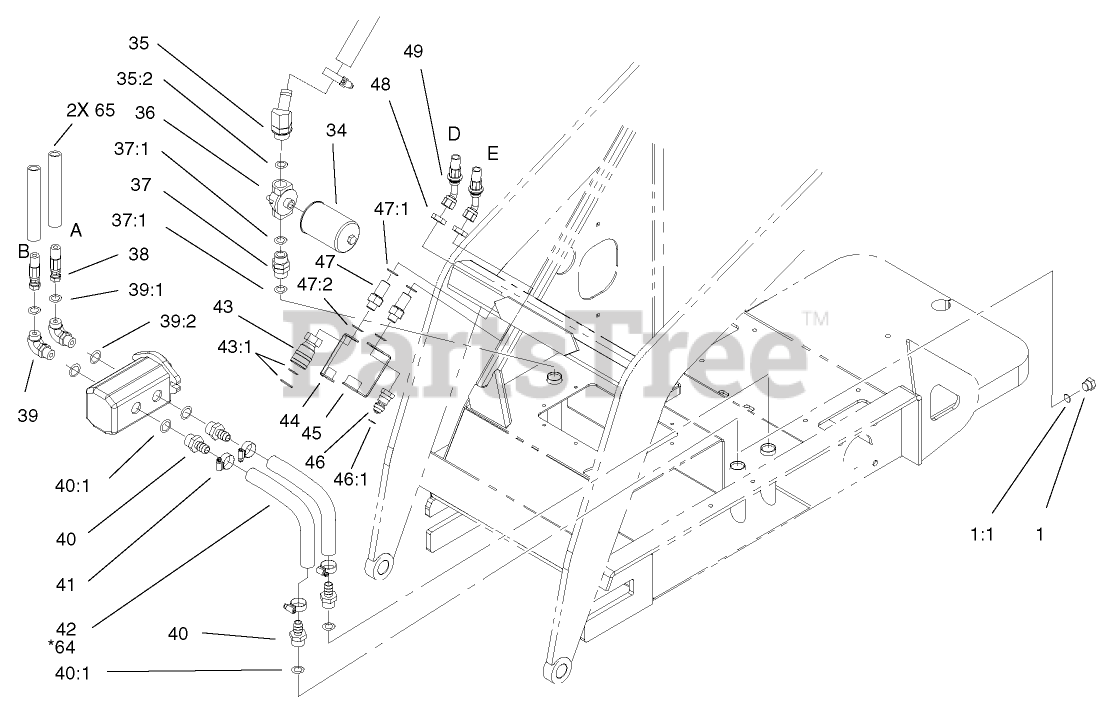

Hydraulic Assembly (continued) Parts Diagram

  • Title

1

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

34

Toro 54-0110

FILTER-OIL, TRANSMISSION

$16.99

$

In Stock, Qty 8

0

35

Toro 354-127

FITTING-ELBOW45

$88.99

$

Usually ships in 3-6 days

0

35:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

36

Toro 92-5821

HEAD-FILTER

$217.99

$

Usually ships in 3-6 days

0

37

Toro 98-9906

FITTING-THREAD, STRAIGHT

$73.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

38

Toro 98-4747

HOSE-HYD

$298.99

$

Usually ships in 3-6 days

0

39

Toro 340-105

FITTING-ELBOW, 90 DEG

$47.99

$

In Stock, only 2 left!

0

39:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

39:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

40

Toro 354-73

FITTING

$44.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

41

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

42

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

Usually ships in 3-6 days

0

43

Toro 100-4234

See Supercession: 104-6134
(Superseded to 104-6134)

$300.99

$

Usually ships in 3-6 days

0

43:1

Toro 100-6119

KIT-SEAL

$

$

Not available

44

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

0

45

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

0

46

Toro 100-4235

See Supercession: 106-7692
(Superseded to 106-7692)

$278.99

$

Usually ships in 3-6 days

0

46:1

Toro 100-6120

SEAL KIT

$117.99

$

In Stock, only 2 left!

0

47

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

47:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

47:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

48

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

49

Toro 100-8817

HOSE-HYD

$446.99

$

Usually ships in 3-6 days

0

64

Toro 99-5349

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

65

Toro 100-8818

See Supercession: 108-9715
(Superseded to 108-9715)

$45.99

$

Usually ships in 3-6 days

0

Toro 3290-379

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

0

Toro 3296-27

NUT-LOCK, NI

Note: Not illustrated

$1.99

$

In Stock, only 3 left!

0
