22304 (222) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) Hydraulic Cylinder Assembly Parts Diagram

Dingo Compact Utility Loader

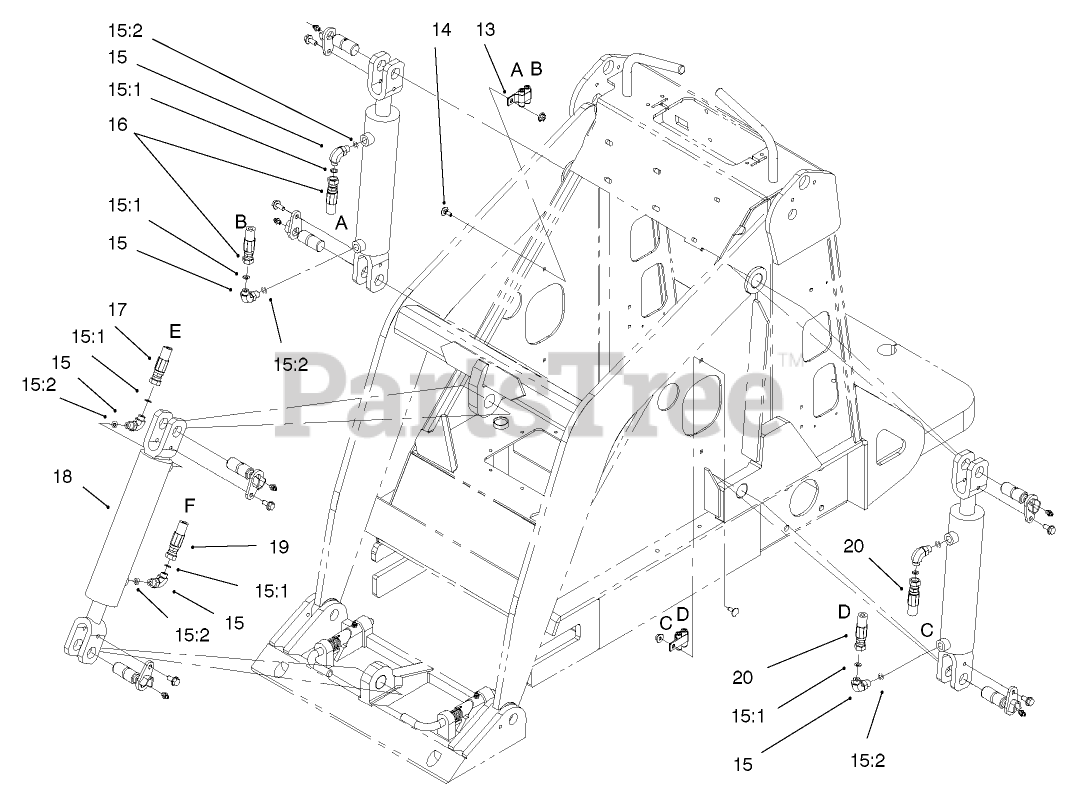

Hydraulic Cylinder Assembly Parts Diagram

  • Title

13

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

15

Toro 340-82

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 2 left!

0

15:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

15:2

Toro 237-75

See Supercession: 237-21
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

16

Toro 98-4725

HOSE-HYD

$198.99

$

Usually ships in 3-6 days

0

17

Toro 98-4727

HOSE-HYD

$242.99

$

Usually ships in 3-6 days

0

18

Toro 100-4163

CYLINDER KIT

$2189.99

$

Usually ships in 3-6 days

0

18:1

Toro 99-3065

SEAL KIT

Note: Not illustrated

$549.99

$

Usually ships in 3-6 days

0

19

Toro 98-4726

HOSE-HYD

$291.99

$

Usually ships in 3-6 days

0

20

Toro 98-4748

HYD HOSE ASM

$191.99

$

Usually ships in 3-6 days

0

Toro 283-52

PIN-CLEVIS

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

Toro 3290-467

PIN-HAIR

Note: Not illustrated

$0.99

$

In Stock, only 4 left!

0

Toro 98-4675

See Supercession: 98-4675-01
(Superseded to 98-4675-01)

Note: Not illustrated

$41.99

$

Usually ships in 3-6 days

0
