22305 (322) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) Wheel And Motor Assembly Parts Diagram

Dingo Compact Utility Loader

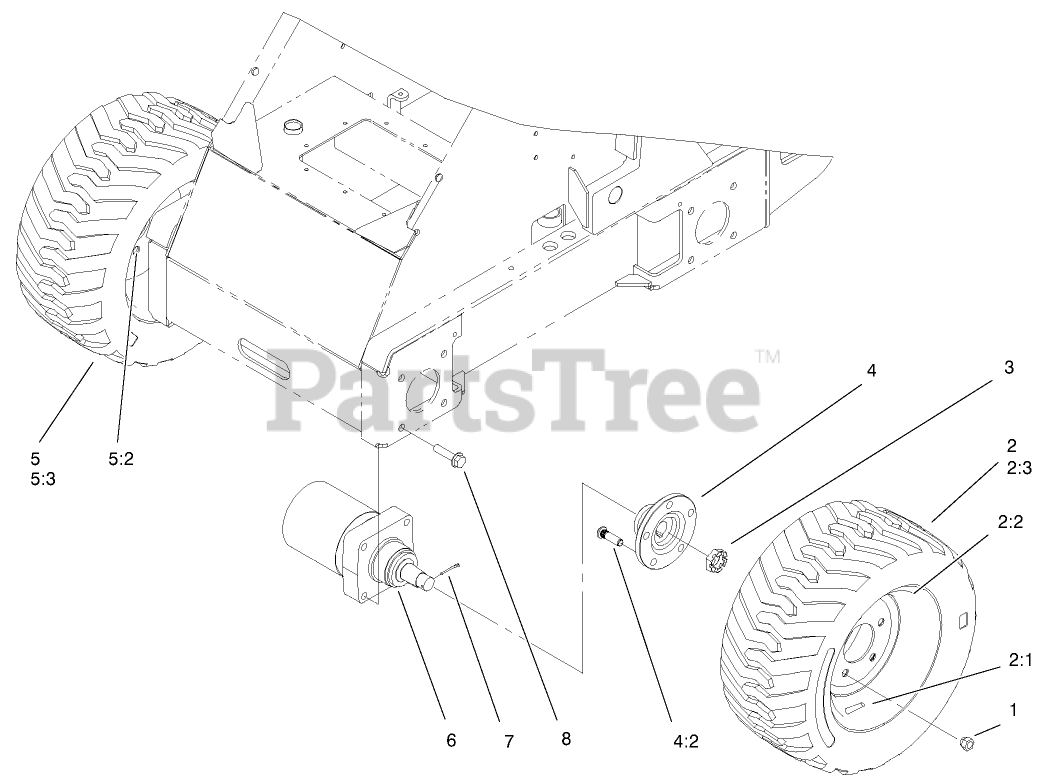

Wheel And Motor Assembly Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

2

Toro 98-2747

LH WHEEL AND TIRE ASM
(Superseded to 144-2575)

$427.99

$

Usually ships in 3-6 days

0

2:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

2:2

Toro 98-2748

WHEEL
(Superseded to 144-2572)

$215.99

$

Usually ships in 3-6 days

0

2:3

Toro 98-2749

TIRE
(Superseded to 144-2573)

$295.99

$

Usually ships in 3-6 days

0

3

Toro 99-3139

NUT

$18.99

$

In Stock, only 2 left!

0

4

Toro 99-3064

HUB ASM

$260.99

$

In Stock, only 1 left!

0

4:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

5

Toro 99-1447

RH WHEEL AND TIRE ASM
(Superseded to 144-2574)

$427.99

$

Usually ships in 3-6 days

0

5:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0

5:2

Toro 98-2748

WHEEL
(Superseded to 144-2572)

$215.99

$

Usually ships in 3-6 days

0

5:3

Toro 98-2749

TIRE
(Superseded to 144-2573)

$295.99

$

Usually ships in 3-6 days

0

6

Toro 99-3052

HYD MOTOR ASM

$2906.99

$

Usually ships in 3-6 days

0

6:1

Toro 94-8178

See Supercession: 100-6131
(Superseded to 100-6131)

Note: Not illustrated

$123.99

$

In Stock, only 2 left!

0

6:2

Toro 99-3090

SHAFT-COUPLING

Note: Not illustrated

$640.99

$

Usually ships in 3-6 days

0

6:3

Toro 99-3091

SCREW-CAP, HH

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

6:4

Toro 3257-42

KEY-WOODRUFF

Note: Not illustrated

$7.49

$

In Stock, Qty 20+

0

7

Toro 99-3171

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

0

8

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0
