22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) Engine and Pump Assembly Parts Diagram

Dingo Compact Utility Loader

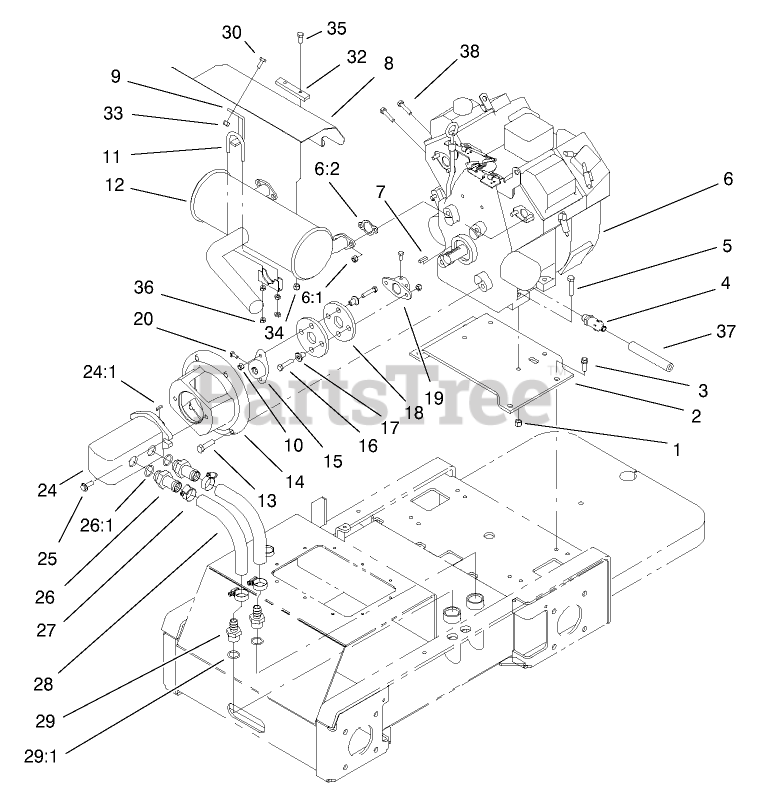

Engine and Pump Assembly Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 98-4666-03

MOUNT-ENGINE

$122.99

$

Usually ships in 3-6 days

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$45.99

$

In Stock, only 2 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

6:1

Toro 92-6780

See Supercession: 33004-00
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 6

0

6:2

Toro 93-0350

See Supercession: 110-6697
(Superseded to 110-6697)

$7.49

$

Usually ships in 3-6 days

0

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, only 4 left!

0

8

Toro 99-3115-03

SHIELD-MUFFLER

$134.99

$

Usually ships in 3-6 days

0

9

Toro 99-3138

See Supercession: 99-3138-03
(Superseded to 99-3138-03)

$33.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 2112-9

CLAMP

$10.99

$

Usually ships in 3-6 days

0

12

Toro 100-1711

See Supercession: 105-8381
(Superseded to 105-8381)

$538.99

$

Usually ships in 3-6 days

0

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 98-2751-03

MOUNT-PUMP

$246.99

$

Usually ships in 3-6 days

0

15

Toro 98-4701

HUB-PUMP

$72.99

$

Usually ships in 3-6 days

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 71-4411

SPACER

$3.49

$

In Stock, only 2 left!

0

18

Toro 44-2230

See Supercession: 115-4523
(Superseded to 115-4523)

$61.99

$

In Stock, Qty 13

0

19

Toro 27-1960

See Supercession: 110-5236
(Superseded to 110-5236)

$41.99

$

In Stock, only 2 left!

0

20

Toro 3241-6

SCREW-SQH

$5.99

$

Usually ships in 3-6 days

0

24

Toro 98-4702

PUMP-GEAR, TANDEM

$2434.99

$

Usually ships in 3-6 days

0

24:1

Toro 98-4700

KEY-SQUARE

$18.99

$

Usually ships in 3-6 days

0

24:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$134.99

$

Usually ships in 3-6 days

0

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 99-3017

FITTING

$89.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

27

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

28

Toro 99-3046

HOSE-SUCTION, FORMED

$226.99

$

Usually ships in 3-6 days

0

29

Toro 354-78

FITTING-STR

$65.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 99-3116-03

SPACER-BAR

$20.99

$

Usually ships in 3-6 days

0

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

35

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

36

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

37

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0

38

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0
