22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) Hydraulic Motor Assembly No. 99-3052 Parts Diagram

Dingo Compact Utility Loader

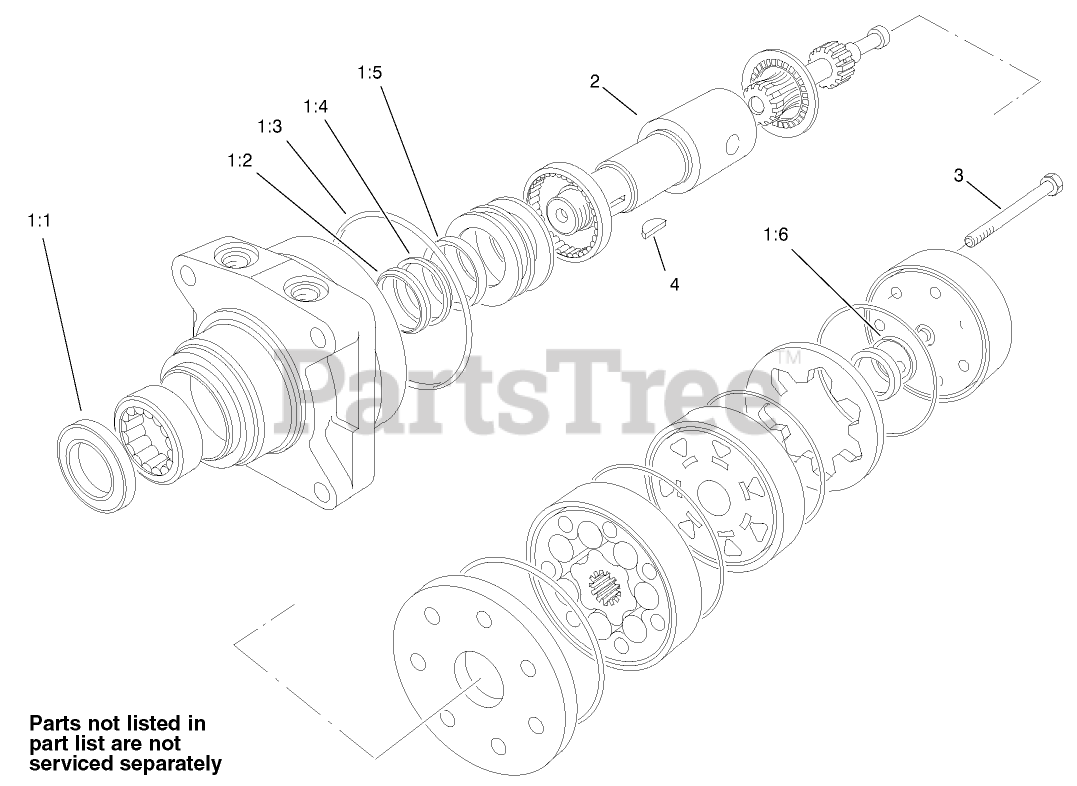

Hydraulic Motor Assembly No. 99-3052 Parts Diagram

  • Title

1

Toro 94-8178

See Supercession: 100-6131
(Superseded to 100-6131)

$123.99

$

In Stock, only 2 left!

0

1:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:5

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:6

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2

Toro 99-3090

SHAFT-COUPLING

$640.99

$

Usually ships in 3-6 days

0

3

Toro 99-3091

SCREW-CAP, HH

$16.99

$

Usually ships in 3-6 days

0

4

Toro 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0
