22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) Electrical System Assembly Parts Diagram

Dingo Compact Utility Loader

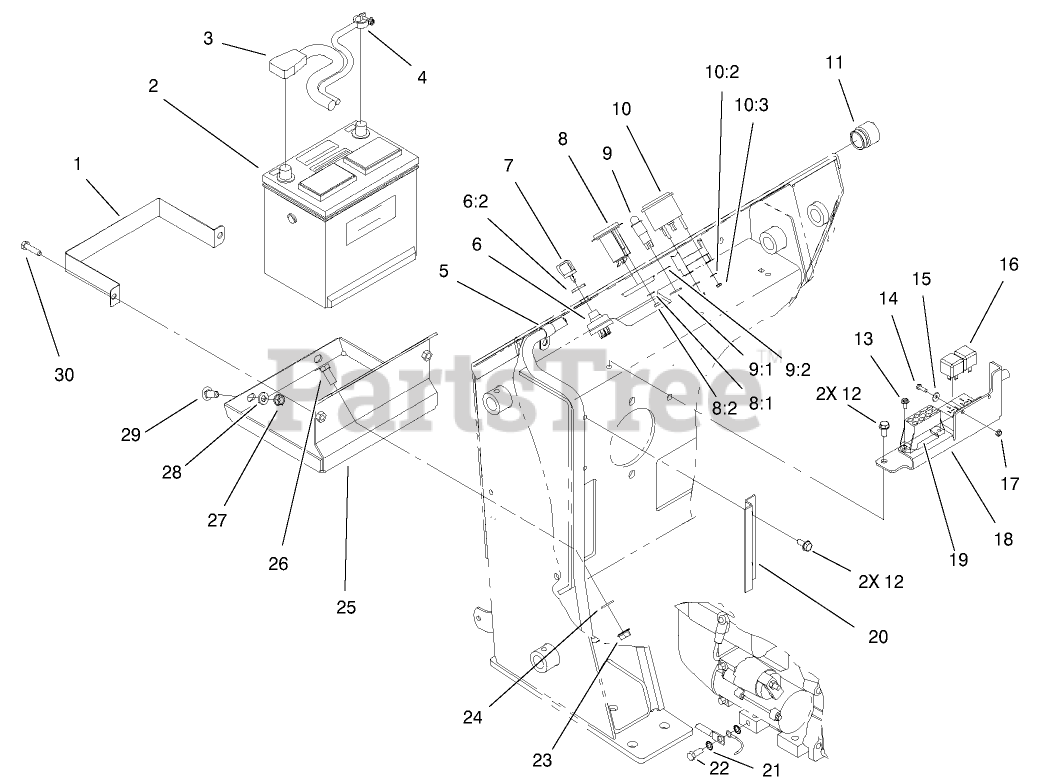

Electrical System Assembly Parts Diagram

  • Title

1

Toro 98-2795-03

BRACKET-CLAMP, BATTERY

$26.99

$

Usually ships in 3-6 days

0

2

Toro 83-9000

See Supercession: 132-8621
(Superseded to 132-8621)

$467.99

$

Usually ships in 3-6 days

0

3

Toro 99-6185

CABLE-BATTERY, POSITIVE

$86.99

$

Usually ships in 3-6 days

0

4

Toro 99-6186

DISCONTINUED

$

$

Not available

5

Toro 2412-39

CLAMP-R

$11.99

$

Usually ships in 3-6 days

0

6

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$43.99

$

In Stock, Qty 20+

0

6:2

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

7

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

8

Toro 66-2950

GAUGE-HOURMETER
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 6

0

8:1

Toro 3255-20

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

8:2

Toro 3217-25

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

9

Toro 44-2210

LIGHT-INDICATOR, RED

$92.99

$

Usually ships in 3-6 days

0

9:1

Toro 218-535

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

9:2

Toro 218-536

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

9:3

Toro 93-7480

LED-MINIATURE

$

$

Not available

9:4

Toro 218-533

LENS

$28.99

$

Usually ships in 3-6 days

0

10

Toro 66-2940

GAUGE-FUEL

$209.99

$

Usually ships in 3-6 days

0

10:2

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

10:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11

Toro 80-9330

AUDIO ALARM ASM

$161.99

$

Usually ships in 3-6 days

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

14

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

15

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

16

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 100-1291-03

BRACKET-FUSE/RELAY

$

$

Not available

19

Toro 98-0150

HARNESS-WIRE

$

$

Not available

19:1

Toro 114594

DUP PART SEE $BOOK

Note: Not illustrated

$

$

Not available

19:2

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$6.49

$

In Stock, Qty 16

0

19:3

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$

$

Not available

20

Toro 100-6117-01

SHIELD-WIRING

$23.99

$

Usually ships in 3-6 days

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

22

Toro 33104-020

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

23

Toro 32128-42

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 98-2793-03

BATTERY TRAY ASM

$

$

Not available

26

Toro 324-4

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 1 left!

0

29

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
